| Manufacturer | Analog Devices |
| Description | Rail-to-Rail, Fast, Low Power 2.5 V to 5.5 V, Single-Supply TTL/CMOS Comparator |
| Pages / Page | 12 / 10 — AD8468. Data Sheet. OUTLINE DIMENSIONS. 2.20 2.00 1.80. 1.35. 2.40. 1.25. … |
| Revision | A |
| File Format / Size | PDF / 273 Kb |
| Document Language | English |

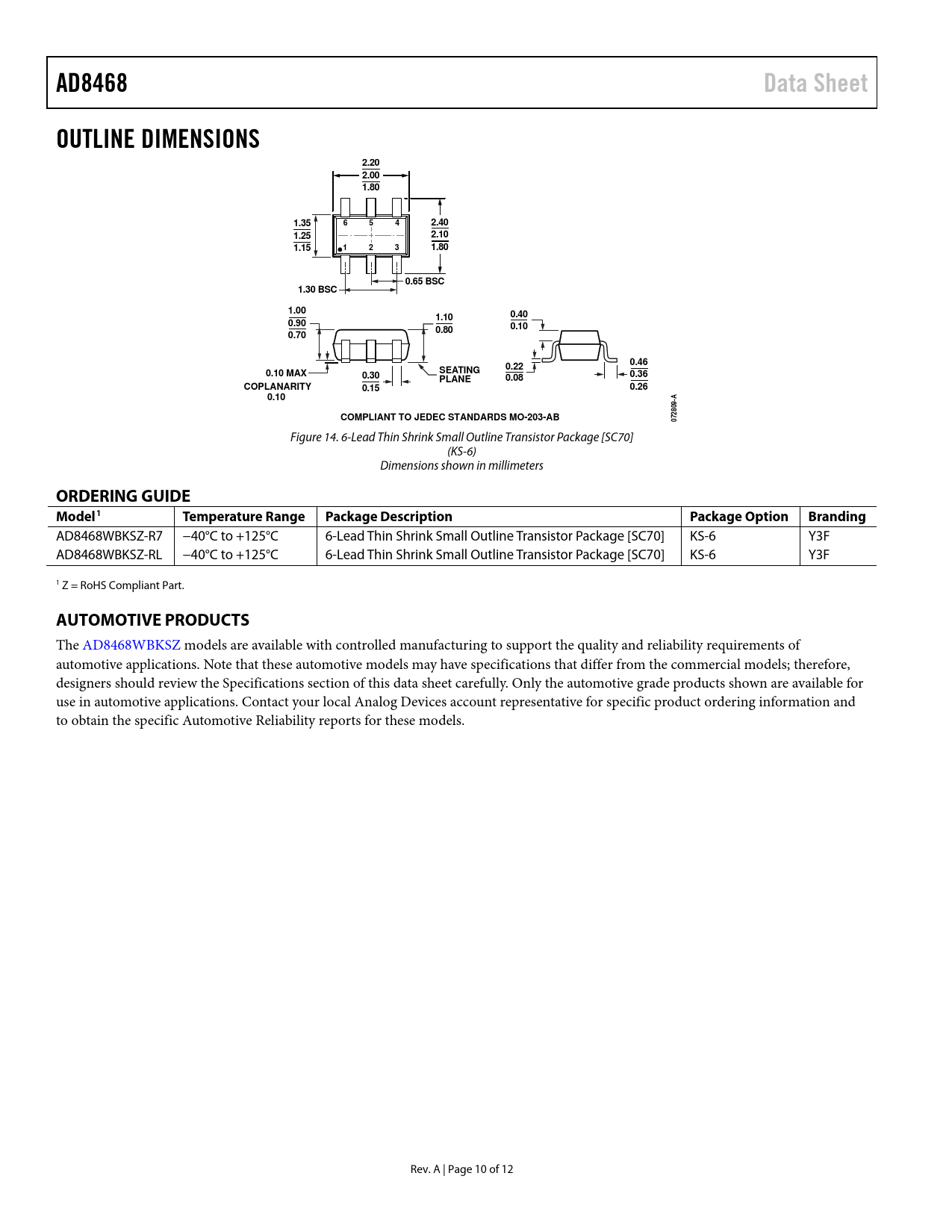

AD8468. Data Sheet. OUTLINE DIMENSIONS. 2.20 2.00 1.80. 1.35. 2.40. 1.25. 2.10. 1.15. 1.80. 0.65 BSC. 1.30 BSC. 1.00. 1.10. 0.40. 0.90. 0.80. 0.10. 0.70
Model Line for this Datasheet
Text Version of Document
link to page 3
AD8468 Data Sheet OUTLINE DIMENSIONS 2.20 2.00 1.80 1.35 6 5 4 2.40 1.25 2.10 1.15 1 2 3 1.80 0.65 BSC 1.30 BSC 1.00 1.10 0.40 0.90 0.80 0.10 0.70 0.46 0.22 0.10 MAX SEATING 0.30 0.36 PLANE 0.08 COPLANARITY 0.15 0.26 0.10 -A 9 0 8 2 COMPLIANT TO JEDEC STANDARDS MO-203-AB 7 0
Figure 14. 6-Lead Thin Shrink Small Outline Transistor Package [SC70] (KS-6) Dimensions shown in millimeters
ORDERING GUIDE Model1 Temperature Range Package Description Package Option Branding
AD8468WBKSZ-R7 −40°C to +125°C 6-Lead Thin Shrink Small Outline Transistor Package [SC70] KS-6 Y3F AD8468WBKSZ-RL −40°C to +125°C 6-Lead Thin Shrink Small Outline Transistor Package [SC70] KS-6 Y3F 1 Z = RoHS Compliant Part.
AUTOMOTIVE PRODUCTS
The AD8468WBKSZ models are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. Note that these automotive models may have specifications that differ from the commercial models; therefore, designers should review the Specifications section of this data sheet carefully. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models. Rev. A | Page 10 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION POWER/GROUND LAYOUT AND BYPASSING TTL-/CMOS-COMPATIBLE OUTPUT STAGE OPTIMIZING PERFORMANCE COMPARATOR PROPAGATIONDELAY DISPERSION CROSSOVER BIAS POINT MINIMUM INPUT SLEW RATE REQUIREMENT TYPICAL APPLICATION CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
