Datasheet HMC974 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | 10 GHz, High Speed Window Comparator |
| Pages / Page | 12 / 1 — High Speed, 10 GHz Window Comparator. Data Sheet. HMC974LC3C. FEATURES. … |
| Revision | E |
| File Format / Size | PDF / 351 Kb |
| Document Language | English |
High Speed, 10 GHz Window Comparator. Data Sheet. HMC974LC3C. FEATURES. FUNCTIONAL BLOCK DIAGRAM. Propagation delay: 88 ps
Model Line for this Datasheet
Text Version of Document
link to page 4

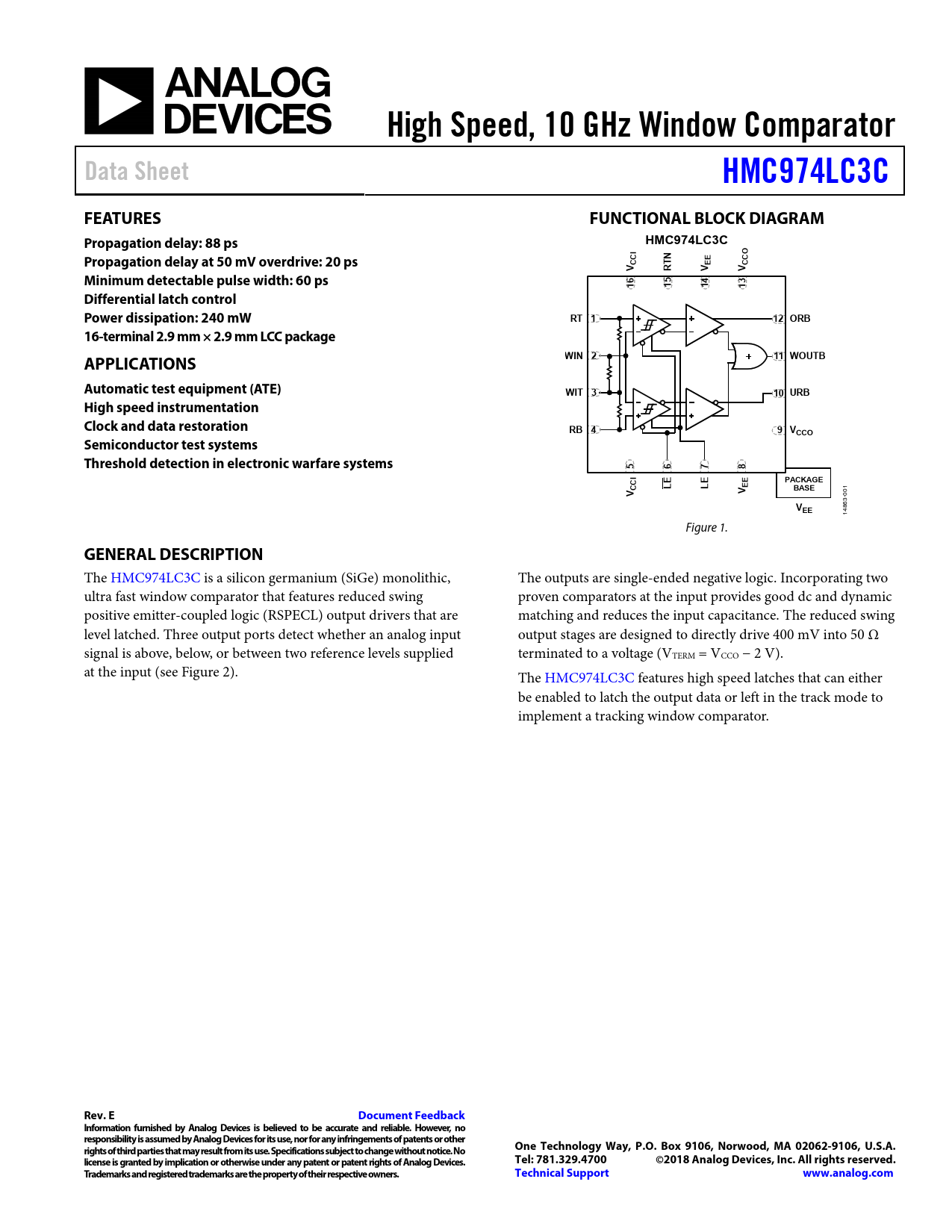

High Speed, 10 GHz Window Comparator Data Sheet HMC974LC3C FEATURES FUNCTIONAL BLOCK DIAGRAM Propagation delay: 88 ps HMC974LC3C I N O Propagation delay at 50 mV overdrive: 20 ps CC EE CC V RT V V Minimum detectable pulse width: 60 ps 16 15 14 13 Differential latch control Power dissipation: 240 mW RT 1 12 ORB 16-terminal 2.9 mm × 2.9 mm LCC package WIN 2 11 WOUTB APPLICATIONS Automatic test equipment (ATE) WIT 3 10 URB High speed instrumentation Clock and data restoration RB 4 9 VCCO Semiconductor test systems Threshold detection in electronic warfare systems 5 6 7 8 I PACKAGE CC LE LE EE BASE
1
V V
-00 3
VEE
86 14 Figure 1.
GENERAL DESCRIPTION
The HMC974LC3C is a silicon germanium (SiGe) monolithic, The outputs are single-ended negative logic. Incorporating two ultra fast window comparator that features reduced swing proven comparators at the input provides good dc and dynamic positive emitter-coupled logic (RSPECL) output drivers that are matching and reduces the input capacitance. The reduced swing level latched. Three output ports detect whether an analog input output stages are designed to directly drive 400 mV into 50 Ω signal is above, below, or between two reference levels supplied terminated to a voltage (VTERM = VCCO − 2 V). at the input (see Figure 2). The HMC974LC3C features high speed latches that can either be enabled to latch the output data or left in the track mode to implement a tracking window comparator.
