Datasheet HMC674LC3C, HMC674LP3E (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 9.3 GHz Latched Comparator with RSPECL Output Stage |
| Pages / Page | 14 / 6 — HMC674LC3C/HMC674LP3E. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 7. … |
| Revision | K |
| File Format / Size | PDF / 331 Kb |
| Document Language | English |
HMC674LC3C/HMC674LP3E. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 7. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
link to page 13

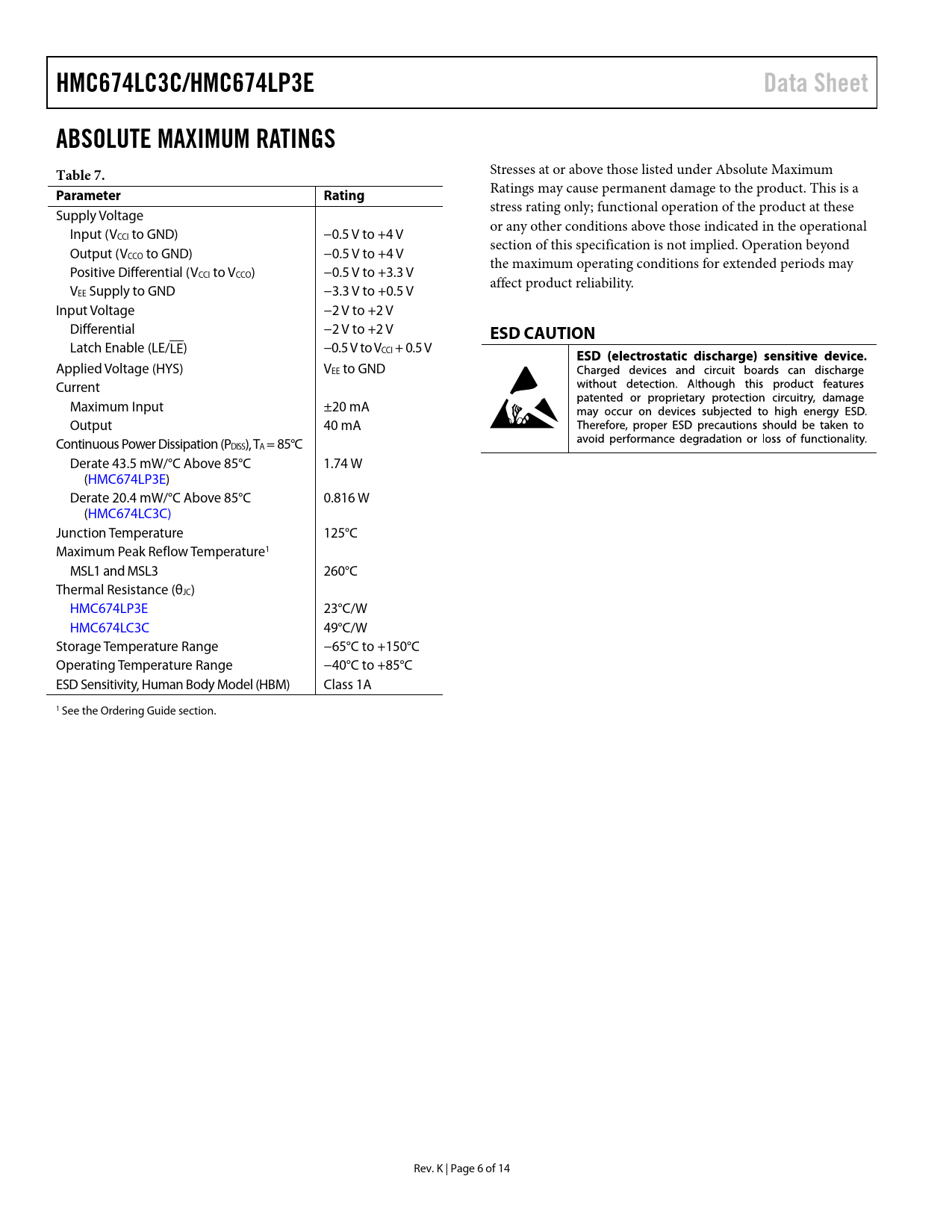

HMC674LC3C/HMC674LP3E Data Sheet ABSOLUTE MAXIMUM RATINGS Table 7.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Supply Voltage or any other conditions above those indicated in the operational Input (VCCI to GND) −0.5 V to +4 V section of this specification is not implied. Operation beyond Output (VCCO to GND) −0.5 V to +4 V the maximum operating conditions for extended periods may Positive Differential (VCCI to VCCO) −0.5 V to +3.3 V affect product reliability. VEE Supply to GND −3.3 V to +0.5 V Input Voltage −2 V to +2 V Differential −2 V to +2 V
