Datasheet LT3033 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | 3A, 0.95V to 10V, Very Low Dropout Linear Regulator with Programmable Current Limit |
| Pages / Page | 24 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION. … |
| Revision | A |
| File Format / Size | PDF / 3.7 Mb |
| Document Language | English |
ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Model Line for this Datasheet
Text Version of Document
LT3033

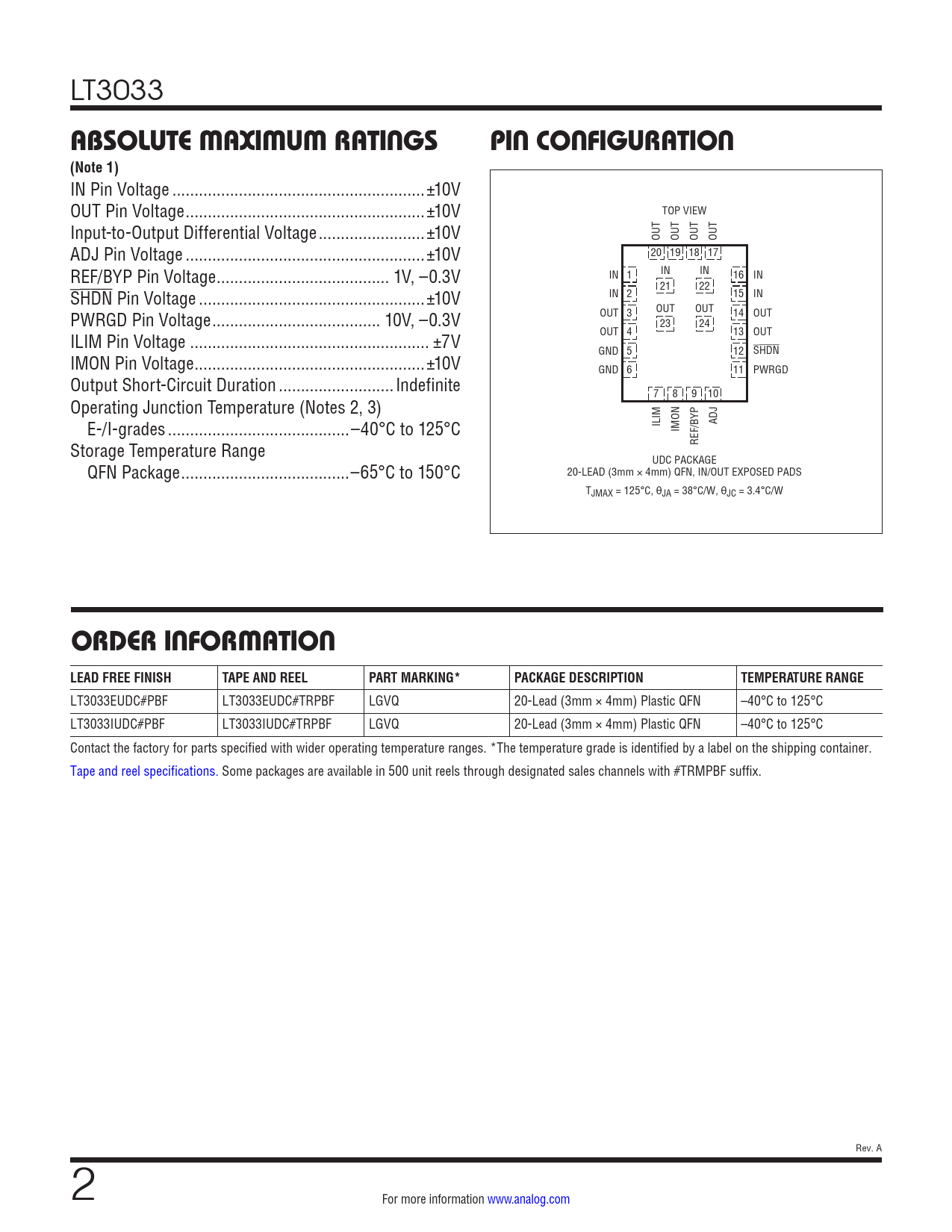

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
IN Pin Voltage ...±10V TOP VIEW OUT Pin Voltage ..±10V Input-to-Output Differential Voltage ..±10V OUT OUT OUT OUT 20 19 18 17 ADJ Pin Voltage ..±10V IN 1 IN IN 16 IN REF/BYP Pin Voltage ... 1V, –0.3V 21 22 IN 2 15 IN SHDN Pin Voltage ...±10V OUT 3 OUT OUT 14 OUT PWRGD Pin Voltage .. 10V, –0.3V 23 24 OUT 4 13 OUT ILIM Pin Voltage .. ±7V GND 5 12 SHDN IMON Pin Voltage ..±10V GND 6 11 PWRGD Output Short-Circuit Duration ..Indefinite 7 8 9 10 Operating Junction Temperature (Notes 2, 3) ILIM ADJ IMON E-/I-grades ...–40°C to 125°C REF/BYP Storage Temperature Range UDC PACKAGE 20-LEAD (3mm QFN Package ..–65°C to 150°C × 4mm) QFN, IN/OUT EXPOSED PADS TJMAX = 125°C, θJA = 38°C/W, θJC = 3.4°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3033EUDC#PBF LT3033EUDC#TRPBF LGVQ 20-Lead (3mm × 4mm) Plastic QFN –40°C to 125°C LT3033IUDC#PBF LT3033IUDC#TRPBF LGVQ 20-Lead (3mm × 4mm) Plastic QFN –40°C to 125°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. Rev. A 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Package Description Revision History Typical Application Related Parts
