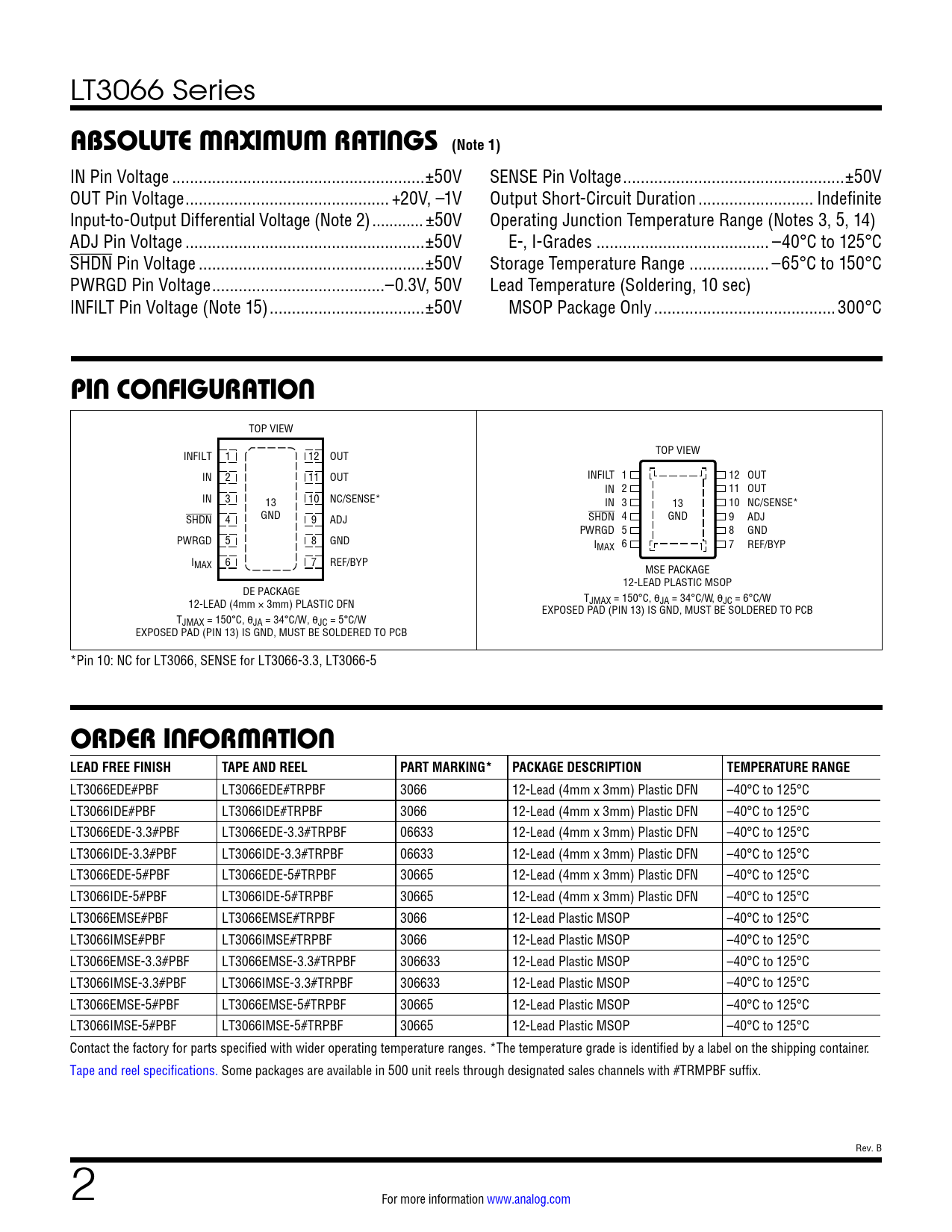

LT3066 Series
ABSOLUTE MAXIMUM RATINGS (Note 1)
IN Pin Voltage ...±50V SENSE Pin Voltage ..±50V OUT Pin Voltage .. +20V, –1V Output Short-Circuit Duration .. Indefinite Input-to-Output Differential Voltage (Note 2) .. ±50V Operating Junction Temperature Range (Notes 3, 5, 14) ADJ Pin Voltage ..±50V E-, I-Grades ... –40°C to 125°C SHDN Pin Voltage ...±50V Storage Temperature Range .. –65°C to 150°C PWRGD Pin Voltage ...–0.3V, 50V Lead Temperature (Soldering, 10 sec) INFILT Pin Voltage (Note 15) ...±50V MSOP Package Only ...300°C
PIN CONFIGURATION
TOP VIEW INFILT 1 12 OUT TOP VIEW IN 2 11 OUT INFILT 1 12 OUT IN 2 11 OUT IN 3 10 13 NC/SENSE* IN 3 13 10 NC/SENSE* GND SHDN 4 9 ADJ SHDN 4 GND 9 ADJ PWRGD 5 8 GND PWRGD 5 8 GND I 6 MAX 7 REF/BYP IMAX 6 7 REF/BYP MSE PACKAGE 12-LEAD PLASTIC MSOP DE PACKAGE 12-LEAD (4mm T × 3mm) PLASTIC DFN JMAX = 150°C, θJA = 34°C/W, θJC = 6°C/W EXPOSED PAD (PIN 13) IS GND, MUST BE SOLDERED TO PCB TJMAX = 150°C, θJA = 34°C/W, θJC = 5°C/W EXPOSED PAD (PIN 13) IS GND, MUST BE SOLDERED TO PCB *Pin 10: NC for LT3066, SENSE for LT3066-3.3, LT3066-5
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3066EDE#PBF LT3066EDE#TRPBF 3066 12-Lead (4mm x 3mm) Plastic DFN –40°C to 125°C LT3066IDE#PBF LT3066IDE#TRPBF 3066 12-Lead (4mm x 3mm) Plastic DFN –40°C to 125°C LT3066EDE-3.3#PBF LT3066EDE-3.3#TRPBF 06633 12-Lead (4mm x 3mm) Plastic DFN –40°C to 125°C LT3066IDE-3.3#PBF LT3066IDE-3.3#TRPBF 06633 12-Lead (4mm x 3mm) Plastic DFN –40°C to 125°C LT3066EDE-5#PBF LT3066EDE-5#TRPBF 30665 12-Lead (4mm x 3mm) Plastic DFN –40°C to 125°C LT3066IDE-5#PBF LT3066IDE-5#TRPBF 30665 12-Lead (4mm x 3mm) Plastic DFN –40°C to 125°C LT3066EMSE#PBF LT3066EMSE#TRPBF 3066 12-Lead Plastic MSOP –40°C to 125°C LT3066IMSE#PBF LT3066IMSE#TRPBF 3066 12-Lead Plastic MSOP –40°C to 125°C LT3066EMSE-3.3#PBF LT3066EMSE-3.3#TRPBF 306633 12-Lead Plastic MSOP –40°C to 125°C LT3066IMSE-3.3#PBF LT3066IMSE-3.3#TRPBF 306633 12-Lead Plastic MSOP –40°C to 125°C LT3066EMSE-5#PBF LT3066EMSE-5#TRPBF 30665 12-Lead Plastic MSOP –40°C to 125°C LT3066IMSE-5#PBF LT3066IMSE-5#TRPBF 30665 12-Lead Plastic MSOP –40°C to 125°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. Rev. B 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
