Datasheet LT3055 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 500mA, Linear Regulator with Precision Current Limit and Diagnostics |
| Pages / Page | 26 / 3 — ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE … |
| Revision | B |
| File Format / Size | PDF / 1.9 Mb |
| Document Language | English |

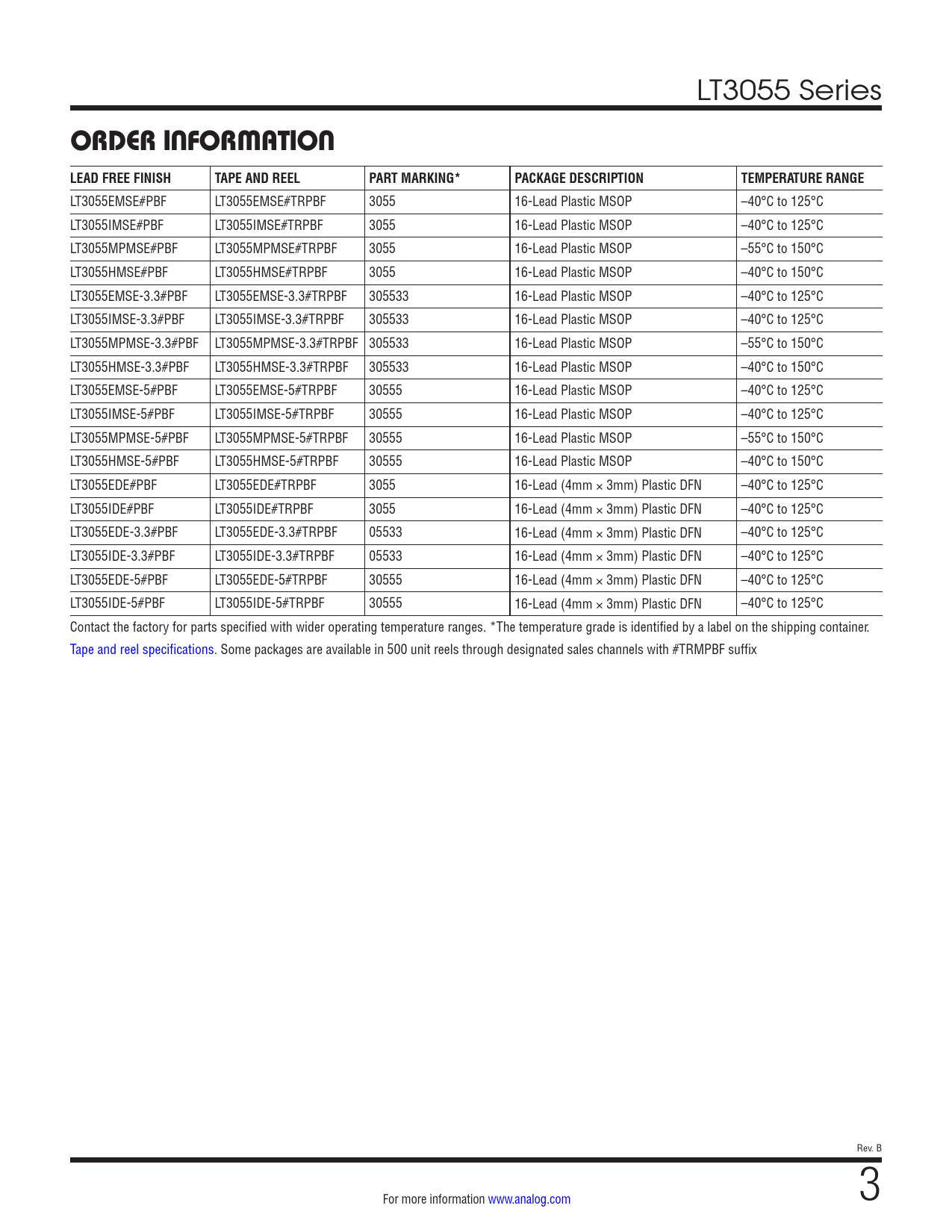

ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE DESCRIPTION. TEMPERATURE RANGE
Model Line for this Datasheet
- LT3055EDE#PBF LT3055EDE#TRPBF LT3055EDE-3.3#PBF LT3055EDE-3.3#TRPBF LT3055EDE-5#PBF LT3055EDE-5#TRPBF LT3055EMSE#PBF LT3055EMSE#TRPBF LT3055EMSE-3.3#PBF LT3055EMSE-3.3#TRPBF LT3055EMSE-5#PBF LT3055EMSE-5#TRPBF LT3055HMSE#PBF LT3055HMSE#TRPBF LT3055HMSE-3.3#PBF LT3055HMSE-3.3#TRPBF LT3055HMSE-5#PBF LT3055HMSE-5#TRPBF LT3055IDE#PBF LT3055IDE#TRPBF LT3055IDE-3.3#PBF LT3055IDE-3.3#TRPBF LT3055IDE-5#PBF LT3055IDE-5#TRPBF LT3055IMSE#PBF LT3055IMSE#TRPBF LT3055IMSE-3.3#PBF LT3055IMSE-3.3#TRPBF LT3055IMSE-5#PBF LT3055IMSE-5#TRPBF LT3055MPMSE#PBF LT3055MPMSE#TRPBF LT3055MPMSE-3.3#PBF LT3055MPMSE-3.3#TRPBF LT3055MPMSE-5#PBF LT3055MPMSE-5#TRPBF
Text Version of Document
LT3055 Series
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3055EMSE#PBF LT3055EMSE#TRPBF 3055 16-Lead Plastic MSOP –40°C to 125°C LT3055IMSE#PBF LT3055IMSE#TRPBF 3055 16-Lead Plastic MSOP –40°C to 125°C LT3055MPMSE#PBF LT3055MPMSE#TRPBF 3055 16-Lead Plastic MSOP –55°C to 150°C LT3055HMSE#PBF LT3055HMSE#TRPBF 3055 16-Lead Plastic MSOP –40°C to 150°C LT3055EMSE-3.3#PBF LT3055EMSE-3.3#TRPBF 305533 16-Lead Plastic MSOP –40°C to 125°C LT3055IMSE-3.3#PBF LT3055IMSE-3.3#TRPBF 305533 16-Lead Plastic MSOP –40°C to 125°C LT3055MPMSE-3.3#PBF LT3055MPMSE-3.3#TRPBF 305533 16-Lead Plastic MSOP –55°C to 150°C LT3055HMSE-3.3#PBF LT3055HMSE-3.3#TRPBF 305533 16-Lead Plastic MSOP –40°C to 150°C LT3055EMSE-5#PBF LT3055EMSE-5#TRPBF 30555 16-Lead Plastic MSOP –40°C to 125°C LT3055IMSE-5#PBF LT3055IMSE-5#TRPBF 30555 16-Lead Plastic MSOP –40°C to 125°C LT3055MPMSE-5#PBF LT3055MPMSE-5#TRPBF 30555 16-Lead Plastic MSOP –55°C to 150°C LT3055HMSE-5#PBF LT3055HMSE-5#TRPBF 30555 16-Lead Plastic MSOP –40°C to 150°C LT3055EDE#PBF LT3055EDE#TRPBF 3055 16-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3055IDE#PBF LT3055IDE#TRPBF 3055 16-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3055EDE-3.3#PBF LT3055EDE-3.3#TRPBF 05533 16-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3055IDE-3.3#PBF LT3055IDE-3.3#TRPBF 05533 16-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3055EDE-5#PBF LT3055EDE-5#TRPBF 30555 16-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3055IDE-5#PBF LT3055IDE-5#TRPBF 30555 16-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix Rev. B For more information www.analog.com 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Revision History Typical Application Related Parts
