Datasheet ADP222, ADP223, ADP224, ADP225 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | Dual, 300 mA Adjustable Output, QOD, Low Noise, High PSRR Voltage Regulators |
| Pages / Page | 24 / 6 — ADP222/ADP223/ADP224/ADP225. Data Sheet. PIN CONFIGURATION AND FUNCTION … |
| Revision | E |
| File Format / Size | PDF / 791 Kb |
| Document Language | English |

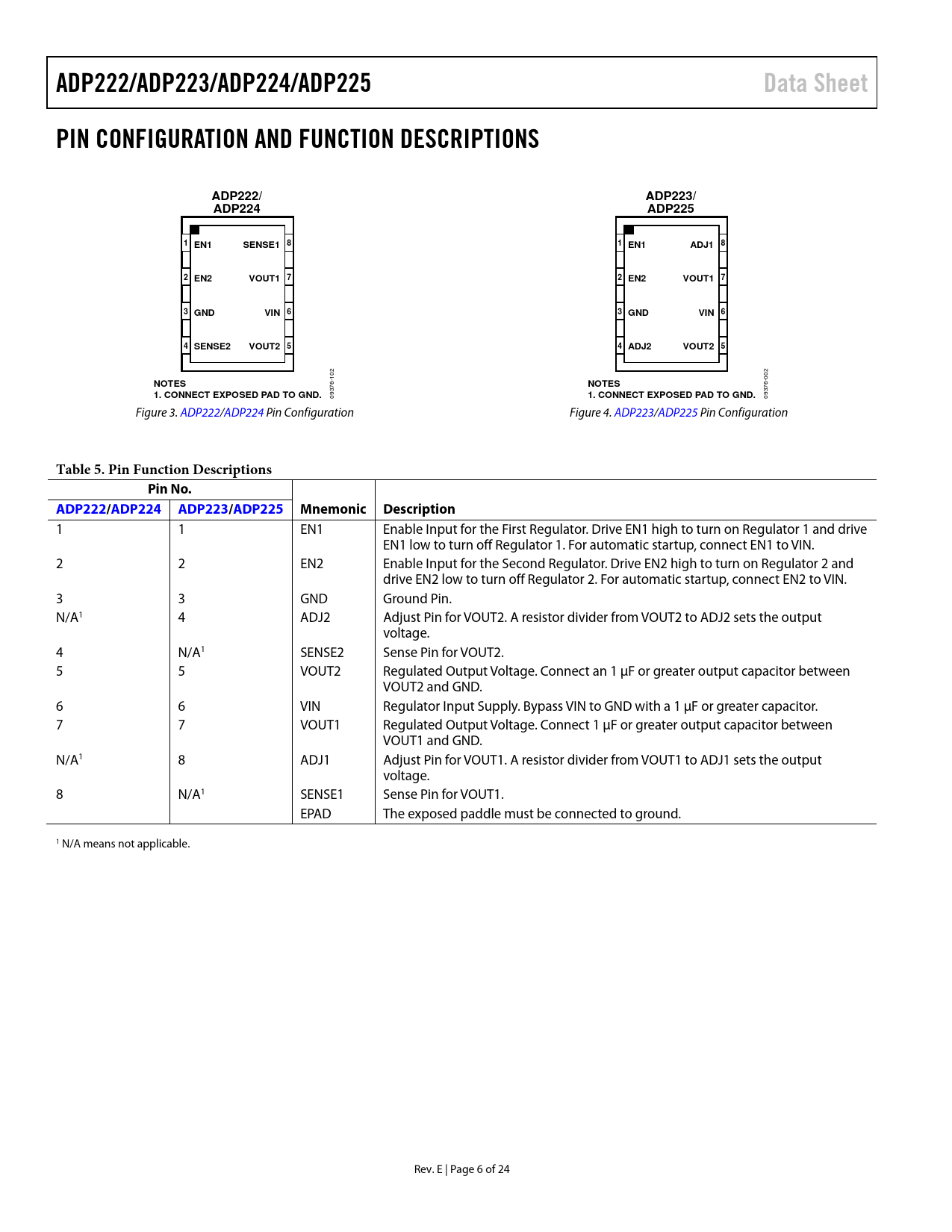

ADP222/ADP223/ADP224/ADP225. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. ADP222/. ADP223/. ADP224. ADP225. 1 EN1. SENSE1
Model Line for this Datasheet
Text Version of Document
ADP222/ADP223/ADP224/ADP225 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS ADP222/ ADP223/ ADP224 ADP225 1 EN1 8 SENSE1 1 EN1 8 ADJ1 2 EN2 VOUT1 7 2 EN2 VOUT1 7 3 GND VIN 6 3 GND VIN 6 4 SENSE2 VOUT2 5 4 ADJ2 VOUT2 5
2 2 10 00
NOTES
6-
NOTES
6-
1. CONNECT EXPOSED PAD TO GND.
937 937 0
1. CONNECT EXPOSED PAD TO GND.
0 Figure 3. ADP222/ADP224 Pin Configuration Figure 4. ADP223/ADP225 Pin Configuration
Table 5. Pin Function Descriptions Pin No. ADP222/ ADP224 ADP223/ ADP225 Mnemonic Description
1 1 EN1 Enable Input for the First Regulator. Drive EN1 high to turn on Regulator 1 and drive EN1 low to turn off Regulator 1. For automatic startup, connect EN1 to VIN. 2 2 EN2 Enable Input for the Second Regulator. Drive EN2 high to turn on Regulator 2 and drive EN2 low to turn off Regulator 2. For automatic startup, connect EN2 to VIN. 3 3 GND Ground Pin. N/A1 4 ADJ2 Adjust Pin for VOUT2. A resistor divider from VOUT2 to ADJ2 sets the output voltage. 4 N/A1 SENSE2 Sense Pin for VOUT2. 5 5 VOUT2 Regulated Output Voltage. Connect an 1 μF or greater output capacitor between VOUT2 and GND. 6 6 VIN Regulator Input Supply. Bypass VIN to GND with a 1 μF or greater capacitor. 7 7 VOUT1 Regulated Output Voltage. Connect 1 μF or greater output capacitor between VOUT1 and GND. N/A1 8 ADJ1 Adjust Pin for VOUT1. A resistor divider from VOUT1 to ADJ1 sets the output voltage. 8 N/A1 SENSE1 Sense Pin for VOUT1. EPAD The exposed paddle must be connected to ground. 1 N/A means not applicable. Rev. E | Page 6 of 24 Document Outline Features Applications Typical Application Circuits General Description Table of Contents Revision History Specifications Input and Output Capacitor, Recommended Specifications Absolute Maximum Ratings Thermal Data Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Applications Information Capacitor Selection Output Capacitor Input Bypass Capacitor Input and Output Capacitor Properties Enable Feature Quick Output Discharge (QOD) Function Current Limit and Thermal Overload Protection Thermal Considerations Printed Circuit Board Layout Considerations Outline Dimensions Ordering Guide
