Datasheet LT3021, LT3021-1.2, LT3021-1.5, LT3021-1.8 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 500mA, Low Voltage, Very Low Dropout Linear Regulator |
| Pages / Page | 18 / 3 — ORDER INFORMAITON LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE … |
| File Format / Size | PDF / 326 Kb |
| Document Language | English |
ORDER INFORMAITON LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE DESCRIPTION. TEMPERATURE RANGE. LEAD BASED FINISH
Model Line for this Datasheet
- LT3021EDH#PBF LT3021EDH#TRPBF LT3021EDH-1.2#PBF LT3021EDH-1.2#TRPBF LT3021EDH-1.5#PBF LT3021EDH-1.5#TRPBF LT3021EDH-1.8#PBF LT3021EDH-1.8#TRPBF LT3021ES8#PBF LT3021ES8#TRPBF LT3021ES8-1.2#PBF LT3021ES8-1.2#TRPBF LT3021ES8-1.5#PBF LT3021ES8-1.5#TRPBF LT3021ES8-1.8#PBF LT3021ES8-1.8#TRPBF LT3021IS8-1.8#PBF LT3021IS8-1.8#TRPBF
Text Version of Document

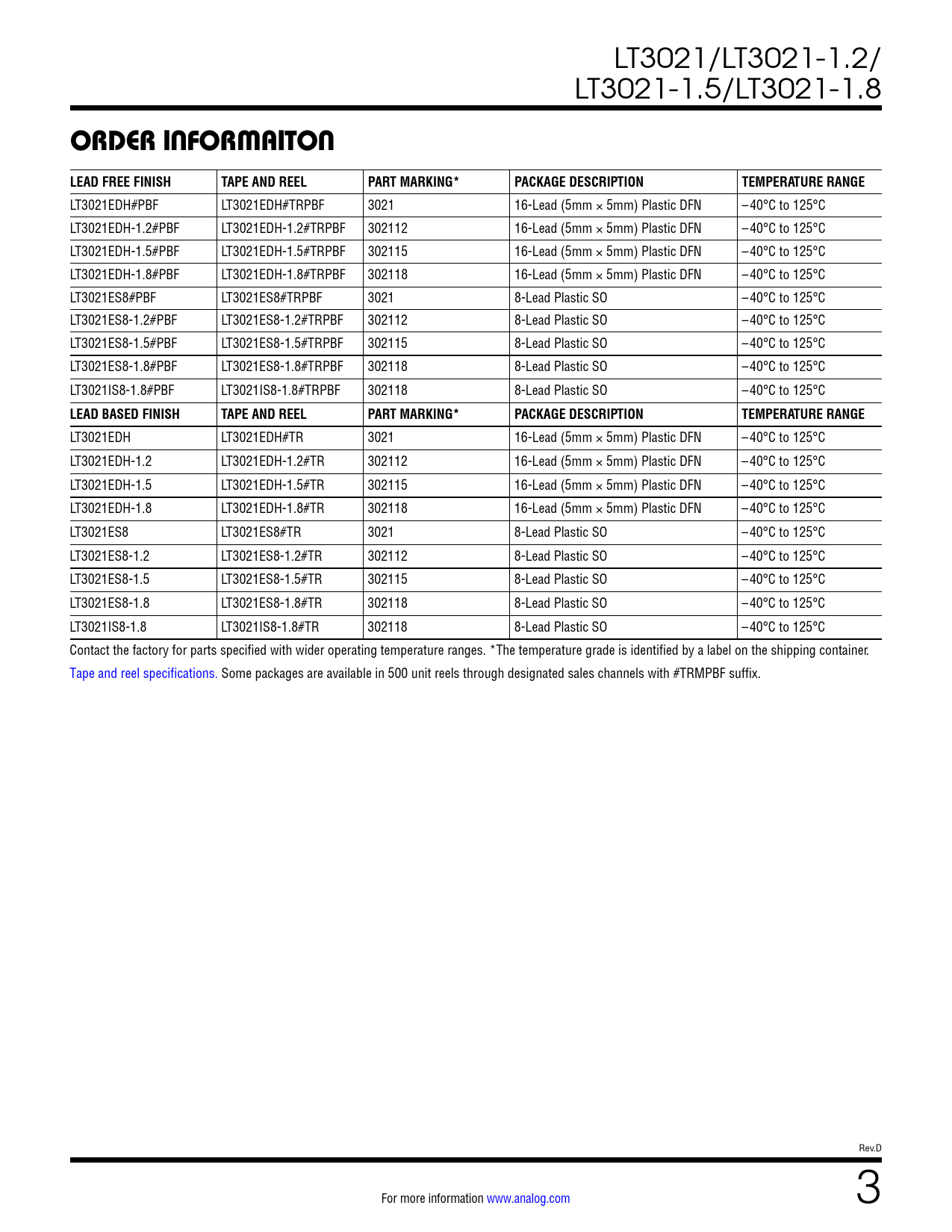

LT3021/LT3021-1.2/ LT3021-1.5/LT3021-1.8
ORDER INFORMAITON LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3021EDH#PBF LT3021EDH#TRPBF 3021 16-Lead (5mm × 5mm) Plastic DFN –40°C to 125°C LT3021EDH-1.2#PBF LT3021EDH-1.2#TRPBF 302112 16-Lead (5mm × 5mm) Plastic DFN –40°C to 125°C LT3021EDH-1.5#PBF LT3021EDH-1.5#TRPBF 302115 16-Lead (5mm × 5mm) Plastic DFN –40°C to 125°C LT3021EDH-1.8#PBF LT3021EDH-1.8#TRPBF 302118 16-Lead (5mm × 5mm) Plastic DFN –40°C to 125°C LT3021ES8#PBF LT3021ES8#TRPBF 3021 8-Lead Plastic SO –40°C to 125°C LT3021ES8-1.2#PBF LT3021ES8-1.2#TRPBF 302112 8-Lead Plastic SO –40°C to 125°C LT3021ES8-1.5#PBF LT3021ES8-1.5#TRPBF 302115 8-Lead Plastic SO –40°C to 125°C LT3021ES8-1.8#PBF LT3021ES8-1.8#TRPBF 302118 8-Lead Plastic SO –40°C to 125°C LT3021IS8-1.8#PBF LT3021IS8-1.8#TRPBF 302118 8-Lead Plastic SO –40°C to 125°C
LEAD BASED FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3021EDH LT3021EDH#TR 3021 16-Lead (5mm × 5mm) Plastic DFN –40°C to 125°C LT3021EDH-1.2 LT3021EDH-1.2#TR 302112 16-Lead (5mm × 5mm) Plastic DFN –40°C to 125°C LT3021EDH-1.5 LT3021EDH-1.5#TR 302115 16-Lead (5mm × 5mm) Plastic DFN –40°C to 125°C LT3021EDH-1.8 LT3021EDH-1.8#TR 302118 16-Lead (5mm × 5mm) Plastic DFN –40°C to 125°C LT3021ES8 LT3021ES8#TR 3021 8-Lead Plastic SO –40°C to 125°C LT3021ES8-1.2 LT3021ES8-1.2#TR 302112 8-Lead Plastic SO –40°C to 125°C LT3021ES8-1.5 LT3021ES8-1.5#TR 302115 8-Lead Plastic SO –40°C to 125°C LT3021ES8-1.8 LT3021ES8-1.8#TR 302118 8-Lead Plastic SO –40°C to 125°C LT3021IS8-1.8 LT3021IS8-1.8#TR 302118 8-Lead Plastic SO –40°C to 125°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. Rev.D For more information www.analog.com 3 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Typical Performance Characteristics Pin Functions Applications Information Package Description
