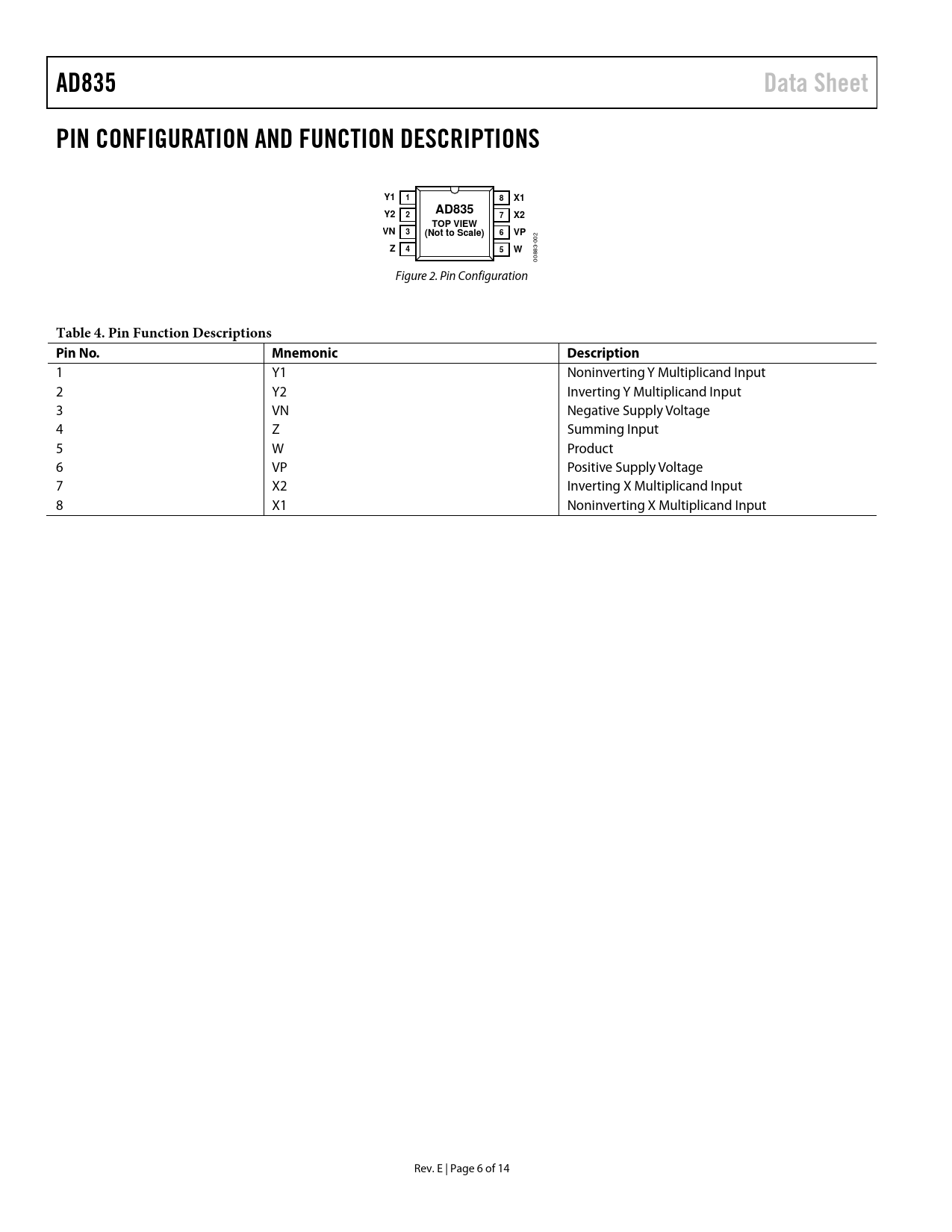

AD835Data SheetPIN CONFIGURATION AND FUNCTION DESCRIPTIONSY118X1AD835Y227X2TOP VIEWVN3(Not to Scale)6VPZ45W 00883-002 Figure 2. Pin Configuration Table 4. Pin Function Descriptions Pin No.MnemonicDescription 1 Y1 Noninverting Y Multiplicand Input 2 Y2 Inverting Y Multiplicand Input 3 VN Negative Supply Voltage 4 Z Summing Input 5 W Product 6 VP Positive Supply Voltage 7 X2 Inverting X Multiplicand Input 8 X1 Noninverting X Multiplicand Input Rev. E | Page 6 of 14 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION BASIC THEORY SCALING ADJUSTMENT APPLICATIONS INFORMATION MULTIPLIER CONNECTIONS WIDEBAND VOLTAGE-CONTROLLED AMPLIFIER AMPLITUDE MODULATOR SQUARING AND FREQUENCY DOUBLING OUTLINE DIMENSIONS ORDERING GUIDE
