Datasheet AD538 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Real-Time Analog Computational Unit (ACU) |
| Pages / Page | 16 / 5 — AD538. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. Rating. ESD CAUTION |
| Revision | E |
| File Format / Size | PDF / 352 Kb |
| Document Language | English |

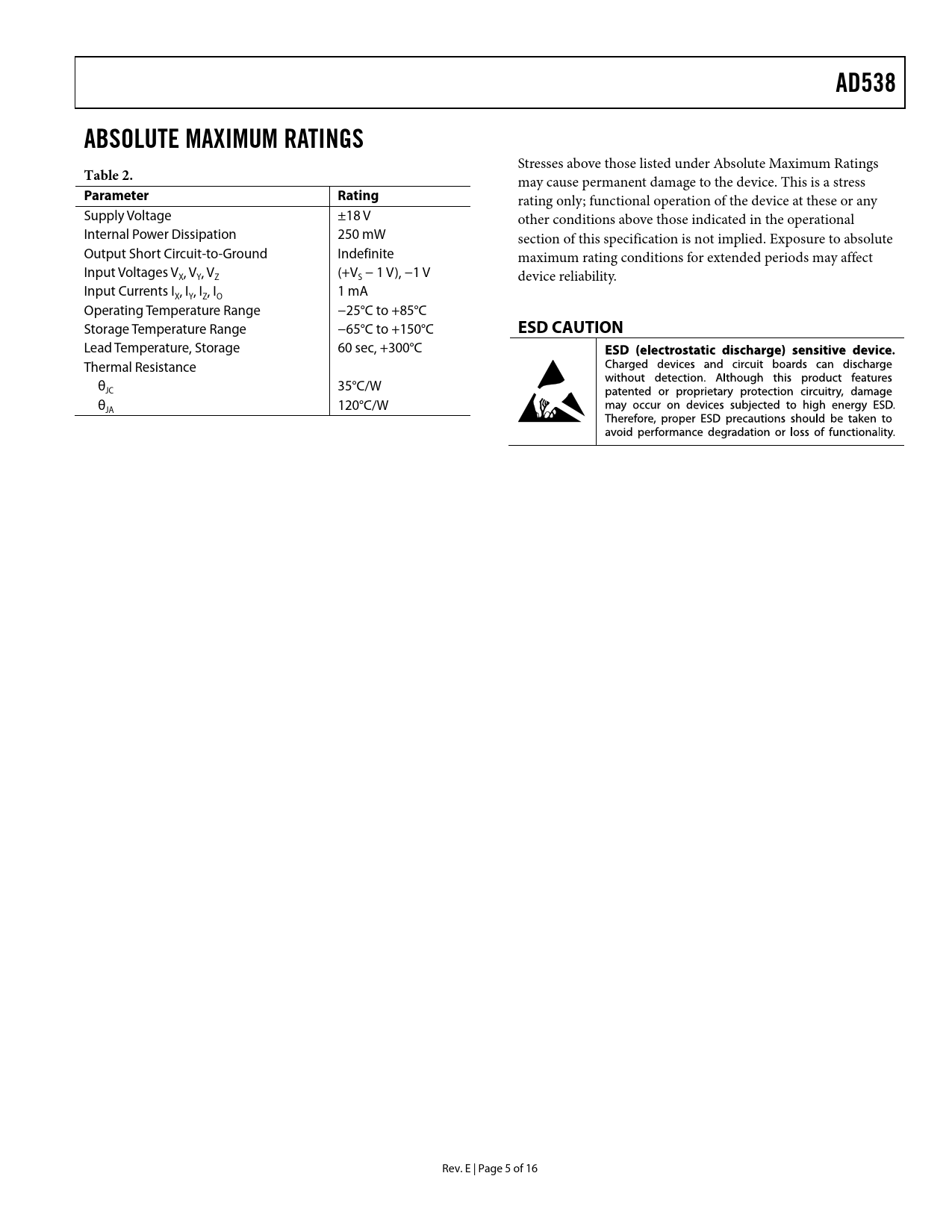

AD538. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
AD538 ABSOLUTE MAXIMUM RATINGS
Stresses above those listed under Absolute Maximum Ratings
Table 2.
may cause permanent damage to the device. This is a stress
Parameter Rating
rating only; functional operation of the device at these or any Supply Voltage ±18 V other conditions above those indicated in the operational Internal Power Dissipation 250 mW section of this specification is not implied. Exposure to absolute Output Short Circuit-to-Ground Indefinite maximum rating conditions for extended periods may affect Input Voltages V , V , V (+V − 1 V), −1 V X Y Z S device reliability. Input Currents I , I , I , I 1 mA X Y Z O Operating Temperature Range −25°C to +85°C Storage Temperature Range −65°C to +150°C
ESD CAUTION
Lead Temperature, Storage 60 sec, +300°C Thermal Resistance θ 35°C/W JC θ 120°C/W JA Rev. E | Page 5 of 16 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Re-Examination of Multiplier/Divider Accuracy Functional Description Stability Precautions Using The Voltage References One-Quadrant Multiplication/Division Two-Quadrant Division Log Ratio Operation Analog Computation Of Powers And Roots Square Root Operation Applications Information Transducer Linearization ARC-Tangent Approximation Outline Dimensions Ordering Guide
