| Manufacturer | Analog Devices |
| Description | Ultralow Drift Op Amp |
| Pages / Page | 8 / 3 — AD707. ABSOLUTE MAXIMUM RATINGS1. ORDERING GUIDE. Temperature. Package. … |
| File Format / Size | PDF / 298 Kb |
| Document Language | English |

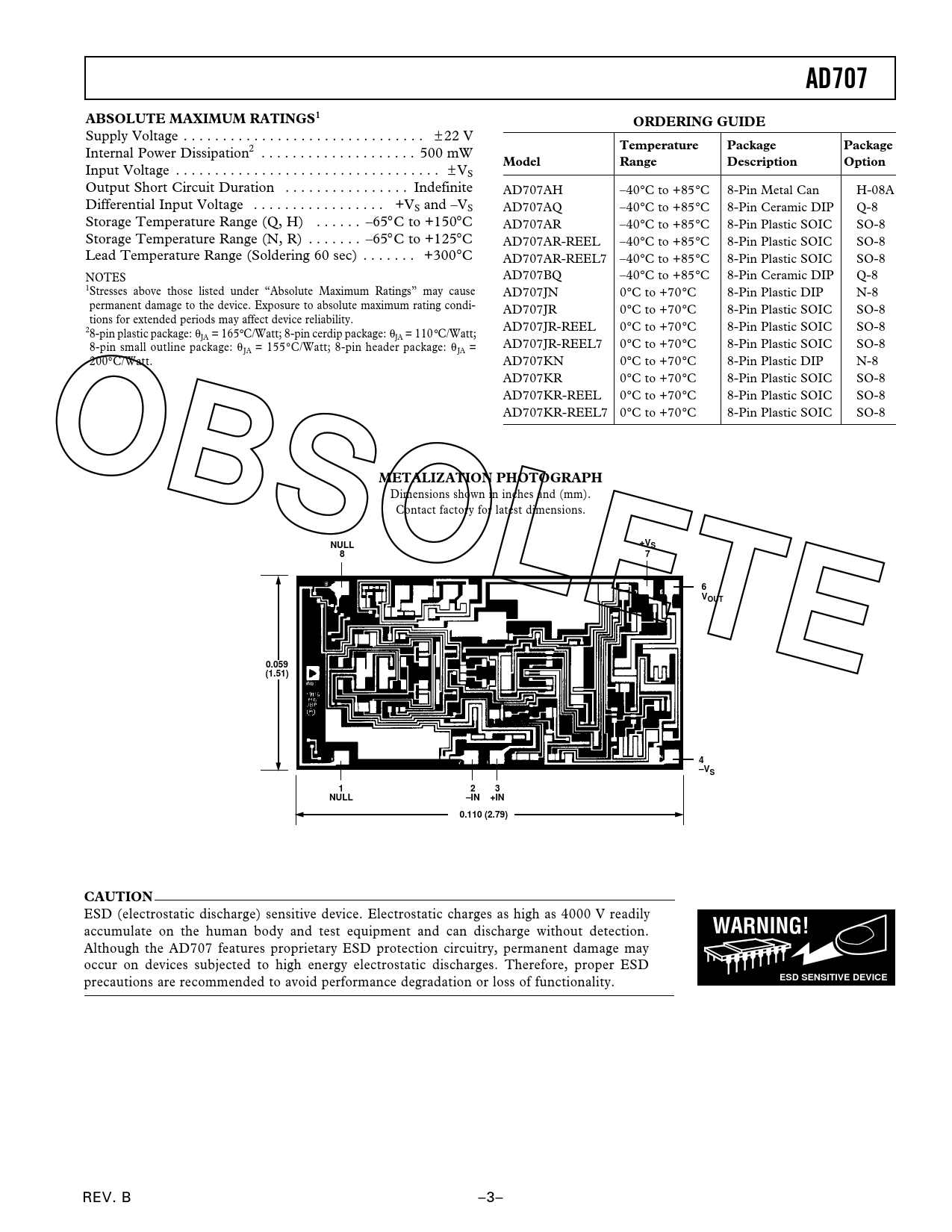

AD707. ABSOLUTE MAXIMUM RATINGS1. ORDERING GUIDE. Temperature. Package. Model. Range. Description. Option. OBSOLETE
Model Line for this Datasheet
Text Version of Document
AD707 ABSOLUTE MAXIMUM RATINGS1 ORDERING GUIDE
Supply Voltage . ± 22 V
Temperature Package Package
Internal Power Dissipation2 . 500 mW
Model Range Description Option
Input Voltage . ± VS Output Short Circuit Duration . Indefinite AD707AH –40°C to +85°C 8-Pin Metal Can H-08A Differential Input Voltage . +VS and –VS AD707AQ –40°C to +85°C 8-Pin Ceramic DIP Q-8 Storage Temperature Range (Q, H) . –65°C to +150°C AD707AR –40°C to +85°C 8-Pin Plastic SOIC SO-8 Storage Temperature Range (N, R) . –65°C to +125°C AD707AR-REEL –40°C to +85°C 8-Pin Plastic SOIC SO-8 Lead Temperature Range (Soldering 60 sec) . +300°C AD707AR-REEL7 –40°C to +85°C 8-Pin Plastic SOIC SO-8 NOTES AD707BQ –40°C to +85°C 8-Pin Ceramic DIP Q-8 1Stresses above those listed under “Absolute Maximum Ratings” may cause AD707JN 0°C to +70°C 8-Pin Plastic DIP N-8 permanent damage to the device. Exposure to absolute maximum rating condi- AD707JR 0°C to +70°C 8-Pin Plastic SOIC SO-8 tions for extended periods may affect device reliability. 2 AD707JR-REEL 0°C to +70°C 8-Pin Plastic SOIC SO-8 8-pin plastic package: θJA = 165°C/Watt; 8-pin cerdip package: θJA = 110°C/Watt; 8-pin small outline package: θ AD707JR-REEL7 0°C to +70°C 8-Pin Plastic SOIC SO-8 JA = 155 °C/Watt; 8-pin header package: θJA = 200°C/Watt. AD707KN 0°C to +70°C 8-Pin Plastic DIP N-8 AD707KR 0°C to +70°C 8-Pin Plastic SOIC SO-8 AD707KR-REEL 0°C to +70°C 8-Pin Plastic SOIC SO-8 AD707KR-REEL7 0°C to +70°C 8-Pin Plastic SOIC SO-8
OBSOLETE METALIZATION PHOTOGRAPH
Dimensions shown in inches and (mm). Contact factory for latest dimensions.
NULL +VS 8 7 6 VOUT 0.059 (1.51) 4 –VS 1 2 3 NULL –IN +IN 0.110 (2.79) CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection.
WARNING!
Although the AD707 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD
ESD SENSITIVE DEVICE
precautions are recommended to avoid performance degradation or loss of functionality. REV. B –3–
