Datasheet AD8232 (Analog Devices) - 30
| Manufacturer | Analog Devices |
| Description | Single-Lead, Heart Rate Monitor Front End |
| Pages / Page | 32 / 30 — AD8232. Data Sheet. PACKAGING AND ORDERING INFORMATION OUTLINE … |
| Revision | D |
| File Format / Size | PDF / 686 Kb |
| Document Language | English |

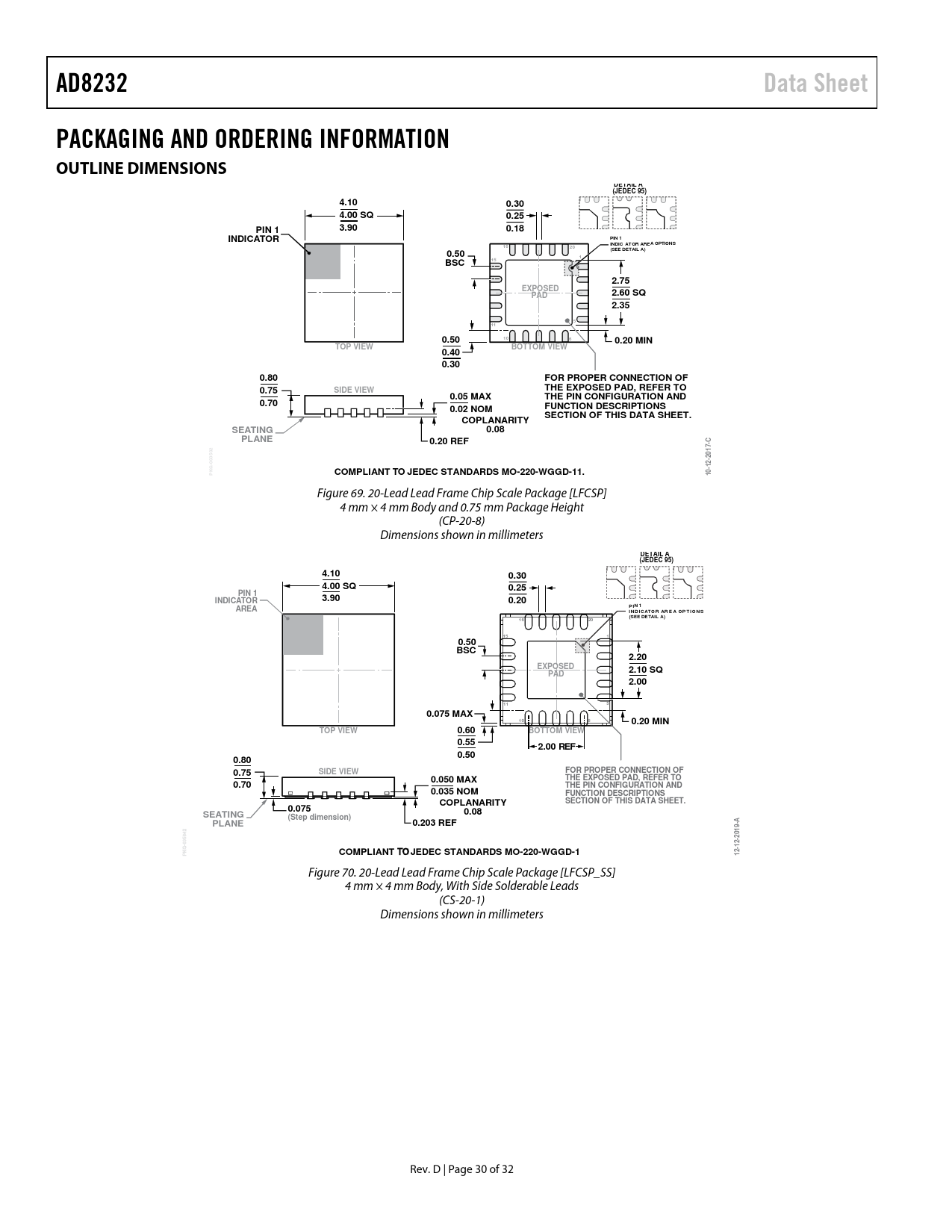

AD8232. Data Sheet. PACKAGING AND ORDERING INFORMATION OUTLINE DIMENSIONS. DETAIL A. (JEDEC 95). 4.10. 0.30. 4.00 SQ. 0.25. 3.90. PIN 1. 0.18
Model Line for this Datasheet
Text Version of Document
AD8232 Data Sheet PACKAGING AND ORDERING INFORMATION OUTLINE DIMENSIONS DETAIL A (JEDEC 95) 4.10 0.30 4.00 SQ 0.25 3.90 PIN 1 0.18 INDICATOR PIN 1 INDIC ATOR AREA OPTIONS 16 20 (SEE DETAIL A) 0.50 1 BSC 15 2.75 EXPOSED 2.60 SQ PAD 2.35 5 11 0.50 10 6 0.20 MIN TOP VIEW BOTTOM VIEW 0.40 0.30 0.80 FOR PROPER CONNECTION OF 0.75 SIDE VIEW THE EXPOSED PAD, REFER TO 0.05 MAX THE PIN CONFIGURATION AND 0.70 0.02 NOM FUNCTION DESCRIPTIONS SECTION OF THIS DATA SHEET. COPLANARITY SEATING 0.08 PLANE 0.20 REF C 2017- -003502 12- G K P COMPLIANT TO JEDEC STANDARDS MO-220-WGGD-11. 10-
Figure 69. 20-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm Body and 0.75 mm Package Height (CP-20-8) Dimensions shown in millimeters
DETAIL A (JEDEC 95) 4.10 0.30 4.00 SQ 0.25 PIN 1 3.90 INDICATOR 0.20 AREA P IN 1 I N D IC ATO R AR E A OP T I O N S (SEE DETAIL A) 16 20 15 1 0.50 BSC 2.20 EXPOSED 2.10 SQ PAD 2.00 11 5 0.075 MAX 10 6 0.20 MIN TOP VIEW 0.60 BOTTOM VIEW 0.55 2.00 REF 0.50 0.80 0.75 SIDE VIEW FOR PROPER CONNECTION OF 0.050 MAX THE EXPOSED PAD, REFER TO 0.70 THE PIN CONFIGURATION AND 0.035 NOM FUNCTION DESCRIPTIONS COPLANARITY SECTION OF THIS DATA SHEET. 0.075 0.08 SEATING (Step dimension) PLANE 0.203 REF A 2019- 12- COMPLIANT JEDEC STANDARDS MO-220-WGGD-1 12-
Figure 70. 20-Lead Lead Frame Chip Scale Package [LFCSP_SS] 4 mm × 4 mm Body, With Side Solderable Leads (CS-20-1) Dimensions shown in millimeters Rev. D | Page 30 of 32 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Instrumentation Amplifier Performance Curves Operational Amplifier Performance Curves Right Leg Drive (RLD) Amplifier Performance Curves Reference Buffer Performance Curves System Performance Curves Theory of Operation Architecture Overview Instrumentation Amplifier Operational Amplifier Right Leg Drive Amplifier Reference Buffer Fast Restore Circuit Leads Off Detection DC Leads Off Detection AC Leads Off Detection Standby Operation Input Protection Radio Frequency Interference (RFI) Power Supply Regulation and Bypassing Input Referred Offsets Layout Recommendations Applications Information Eliminating Electrode Offsets High-Pass Filtering Two-Pole High-Pass Filter Additional High-Pass Filtering Options Low-Pass Filtering and Gain Driving Analog-to-Digital Converters Driven Electrode Application Circuits Heart Rate Measurement Next to the Heart Exercise Application: Heart Rate Measured at the Hands Cardiac Monitor Configuration Portable Cardiac Monitor with Elimination of Motion Artifacts Packaging and Ordering Information Outline Dimensions Ordering Guide
Figure 69. 20-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm Body and 0.75 mm Package Height (CP-20-8) Dimensions shown in millimeters
