Datasheet AD8295 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | Precision Instrumentation Amplifier with Signal Processing Amplifiers |
| Pages / Page | 28 / 7 — AD8295. ABSOLUTE MAXIMUM RATINGS Table 6. THERMAL CHARACTERISTICS. … |
| Revision | A |
| File Format / Size | PDF / 684 Kb |
| Document Language | English |
AD8295. ABSOLUTE MAXIMUM RATINGS Table 6. THERMAL CHARACTERISTICS. Parameter Rating. Table 7. Package θ. JA Unit. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
link to page 9 link to page 7

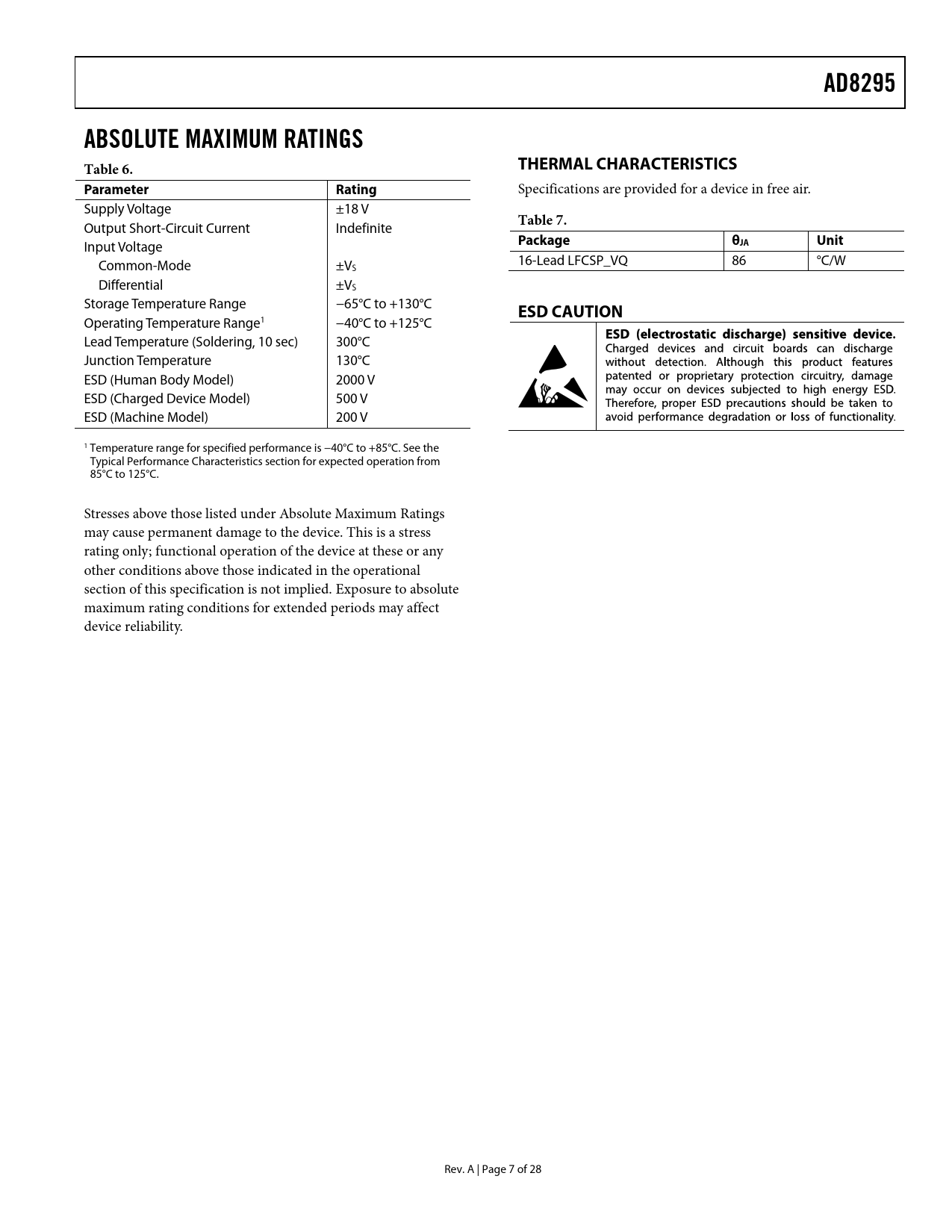

AD8295 ABSOLUTE MAXIMUM RATINGS Table 6. THERMAL CHARACTERISTICS Parameter Rating
Specifications are provided for a device in free air. Supply Voltage ±18 V
Table 7.
Output Short-Circuit Current Indefinite
Package θ
Input Voltage
JA Unit
Common-Mode ±V 16-Lead LFCSP_VQ 86 °C/W S Differential ±VS Storage Temperature Range −65°C to +130°C
ESD CAUTION
Operating Temperature Range1 −40°C to +125°C Lead Temperature (Soldering, 10 sec) 300°C Junction Temperature 130°C ESD (Human Body Model) 2000 V ESD (Charged Device Model) 500 V ESD (Machine Model) 200 V 1 Temperature range for specified performance is −40°C to +85°C. See the Typical Performance Characteristics section for expected operation from 85°C to 125°C. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. A | Page 7 of 28 Document Outline FEATURES APPLICATIONS CONNECTION DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS INSTRUMENTATION AMPLIFIER SPECIFICATIONS, SINGLE-ENDED AND DIFFERENTIAL OUTPUT CONFIGURATIONS OP AMP SPECIFICATIONS INTERNAL RESISTOR NETWORK POWER AND TEMPERATURE SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL CHARACTERISTICS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS IN-AMP OP AMPS SYSTEM THEORY OF OPERATION UNCOMMITTED OP AMPS INSTRUMENTATION AMPLIFIER Gain Selection Common-Mode Input Voltage Range Reference Terminal LAYOUT Routing and Vias Common-Mode Rejection over Frequency Unused Op Amps Reference Power Supplies INPUT PROTECTION INPUT BIAS CURRENT RETURN PATH RF INTERFERENCE DIFFERENTIAL OUTPUT APPLICATIONS INFORMATION CREATING A REFERENCE VOLTAGE AT MIDSCALE HIGH ACCURACY G = −1 CONFIGURATION WITH LOW-PASS FILTER TWO-POLE SALLEN-KEY FILTER AC-COUPLED INSTRUMENTATION AMPLIFIER DRIVING DIFFERENTIAL ADCs OUTLINE DIMENSIONS ORDERING GUIDE
