AP22652/AP22653/AP22652A/AP22653A Typical Performance Characteristics
(continued) Trigger signal VOUT-VIN 200mV/div FLAG 5V/div IOUT 500mA/div

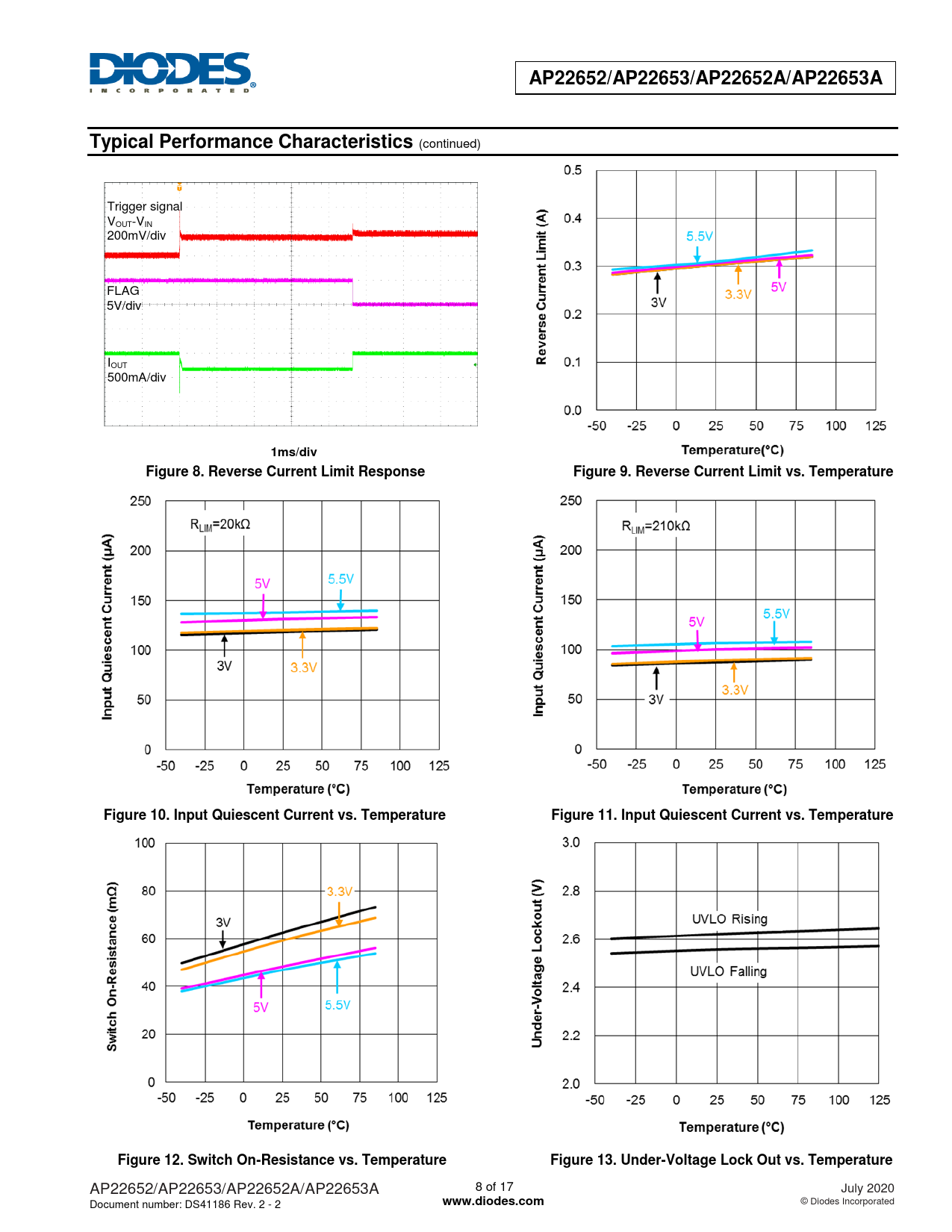

1ms/div Figure 8. Reverse Current Limit Response Figure 9. Reverse Current Limit vs. Temperature Figure 10. Input Quiescent Current vs. Temperature Figure 11. Input Quiescent Current vs. Temperature Figure 12. Switch On-Resistance vs. Temperature Figure 13. Under-Voltage Lock Out vs. Temperature
AP22652/AP22653/AP22652A/AP22653A 8 of 17 July 2020 Document number: DS41186 Rev. 2 - 2
