Datasheet MOC205M, MOC206M, MOC207M, MOC211M, MOC212M, MOC213M, MOC216M, MOC217M (ON Semiconductor) - 4
| Manufacturer | ON Semiconductor |
| Description | 8-pin SOIC Single-Channel Phototransistor Output |
| Pages / Page | 12 / 4 — Stresses exceeding the absolute maximum ratings may damage the device. … |
| Revision | A |
| File Format / Size | PDF / 342 Kb |
| Document Language | English |
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be
Model Line for this Datasheet
Text Version of Document
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be
operable above the recommended operating conditions and stressing the parts to these levels is not recommended.
In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability.
The absolute maximum ratings are stress ratings only. TA = 25°C unless otherwise specified. Symbol Rating Value Unit Storage Temperature -40 to +125 °C TA Ambient Operating Temperature -40 to +100 °C TJ Junction Temperature TOTAL DEVICE
TSTG TSOL
PD -40 to +125 °C 260 for 10 seconds °C Total Device Power Dissipation @ TA = 25°C 240 mW Derate above 25°C 2.94 mW/°C Continuous Forward Current 60 mA Forward Current – Peak (PW = 100 µs, 120 pps) 1.0 A Reverse Voltage 6.0 V Lead Solder Temperature EMITTER
IF
IF (pk)
VR LED Power Dissipation @ TA = 25°C 90 mW Derate above 25°C 0.8 mW/°C Continuous Collector Current 150 mA VCEO Collector-Emitter Voltage 30 V VECO Emitter-Collector Voltage 7 V Detector Power Dissipation @ TA = 25°C 150 mW Derate above 25°C 1.76 mW/°C PD
DETECTOR
IC PD ©2005 Fairchild Semiconductor Corporation
MOC20xM, MOC21xM Rev. 1.5 www.fairchildsemi.com

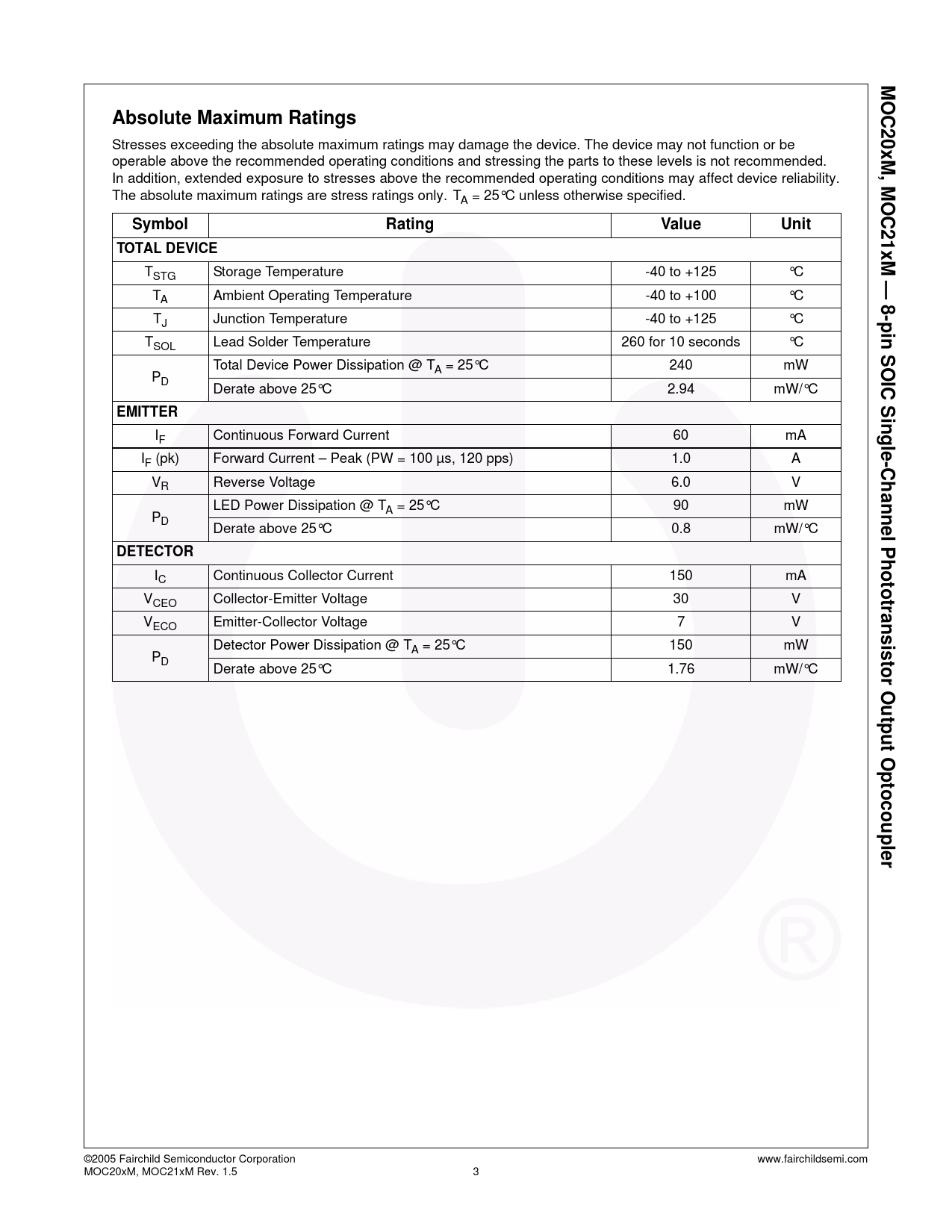

3 MOC20xM, MOC21xM — 8-pin SOIC Single-Channel Phototransistor Output Optocoupler Absolute Maximum Ratings
operable above the recommended operating conditions and stressing the parts to these levels is not recommended.
In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability.
The absolute maximum ratings are stress ratings only. TA = 25°C unless otherwise specified. Symbol Rating Value Unit Storage Temperature -40 to +125 °C TA Ambient Operating Temperature -40 to +100 °C TJ Junction Temperature TOTAL DEVICE
TSTG TSOL
PD -40 to +125 °C 260 for 10 seconds °C Total Device Power Dissipation @ TA = 25°C 240 mW Derate above 25°C 2.94 mW/°C Continuous Forward Current 60 mA Forward Current – Peak (PW = 100 µs, 120 pps) 1.0 A Reverse Voltage 6.0 V Lead Solder Temperature EMITTER
IF
IF (pk)
VR LED Power Dissipation @ TA = 25°C 90 mW Derate above 25°C 0.8 mW/°C Continuous Collector Current 150 mA VCEO Collector-Emitter Voltage 30 V VECO Emitter-Collector Voltage 7 V Detector Power Dissipation @ TA = 25°C 150 mW Derate above 25°C 1.76 mW/°C PD
DETECTOR
IC PD ©2005 Fairchild Semiconductor Corporation
MOC20xM, MOC21xM Rev. 1.5 www.fairchildsemi.com
3 MOC20xM, MOC21xM — 8-pin SOIC Single-Channel Phototransistor Output Optocoupler Absolute Maximum Ratings
