Datasheet IR11-21C/TR8 (Everlight) - 3
| Manufacturer | Everlight |
| Description | 1206 Package Chip Infrared LED With Inner Lens |
| Pages / Page | 9 / 3 — Data Sheet. 1206 Package Chip Infrared LED With Inner Lens IR11-21C/TR8. … |
| File Format / Size | PDF / 322 Kb |
| Document Language | English |

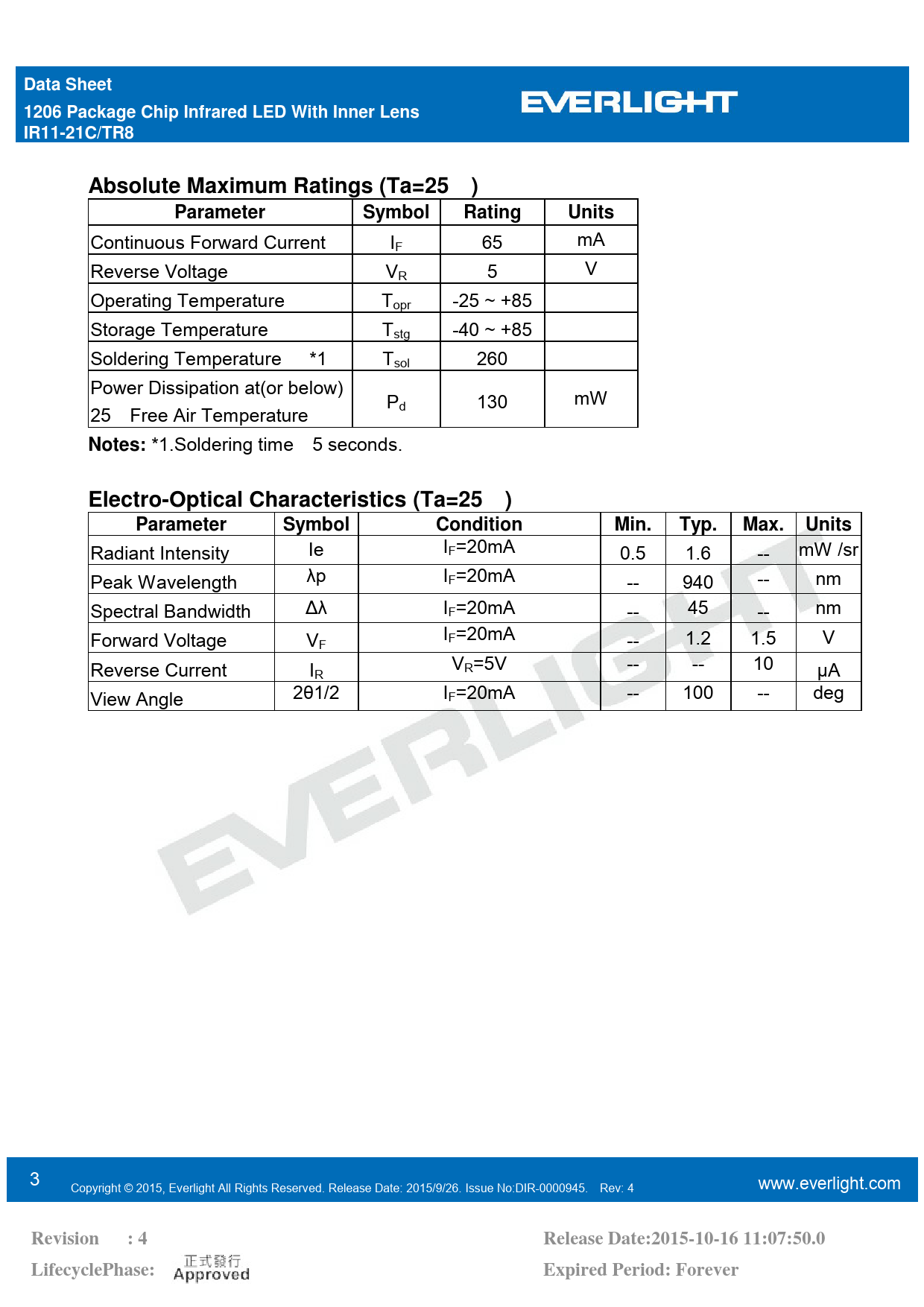

Data Sheet. 1206 Package Chip Infrared LED With Inner Lens IR11-21C/TR8. Absolute Maximum Ratings (Ta=25. Parameter. Symbol
Model Line for this Datasheet
Text Version of Document
Data Sheet 1206 Package Chip Infrared LED With Inner Lens IR11-21C/TR8 Absolute Maximum Ratings (Ta=25
℃
) Parameter Symbol Rating Units
Continuous Forward Current IF 65 mA Reverse Voltage VR 5 V Operating Temperature Topr -25 ~ +85 ℃ Storage Temperature Tstg -40 ~ +85 ℃ Soldering Temperature *1 Tsol 260 ℃ Power Dissipation at(or below) P 25 d 130 mW ℃Free Air Temperature
Notes:
*1.Soldering time≦5 seconds.
Electro-Optical Characteristics (Ta=25
℃
) Parameter Symbol Condition Min. Typ. Max. Units
Radiant Intensity Ie IF=20mA 0.5 1.6 -- mW /sr Peak Wavelength λp IF=20mA -- 940 -- nm Spectral Bandwidth Δλ IF=20mA -- 45 -- nm Forward Voltage V I F F=20mA -- 1.2 1.5 V Reverse Current I V R R=5V -- -- 10 μA View Angle 2θ1/2 IF=20mA -- 100 -- deg 3 Copyright © 2015, Everlight All Rights Reserved. Release Date: 2015/9/26. Issue No:DIR-0000945. Rev: 4 www.everlight.com
