Nexperia NCR420PAS / NCR421PAS 150 mA LED driver in DFN2020D-6
006aad168 103 Zth(j-a) (K/W) duty cycle = 1 0.75 102 0.5 0.33 0.2 0.1 0.05 10 0.02 0.01 0 110-5 10-3 10-2 10-4 10 102 10-1 103 1 tp (s) FR4 PCB; 4-layer copper; tin-plated and standard footprint

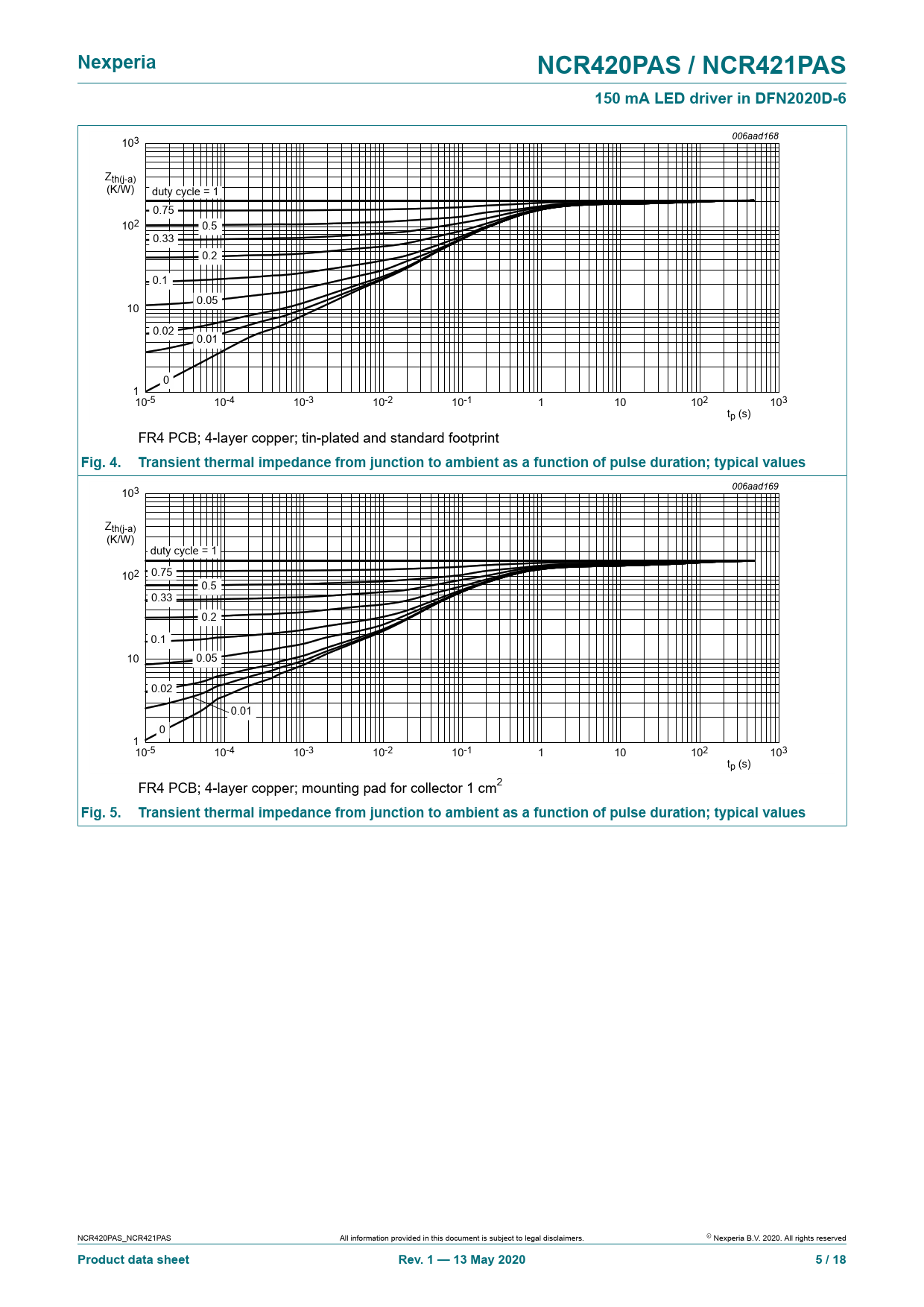

Fig. 4. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
006aad169 103 Zth(j-a) (K/W) duty cycle = 1 102 0.75 0.5 0.33 0.2 0.1 10 0.05 0.02 0.01 0 110-5 10-3 10-2 10-4 10 102 10-1 103 1 tp (s) FR4 PCB; 4-layer copper; mounting pad for collector 1 cm2
Fig. 5. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
