Datasheet ADA4001-2 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | Low Noise, Low Input Bias Current, Rail-to-Rail Output, JFET Dual Op Amp |
| Pages / Page | 12 / 4 — ADA4001-2. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. … |
| Revision | C |
| File Format / Size | PDF / 327 Kb |
| Document Language | English |

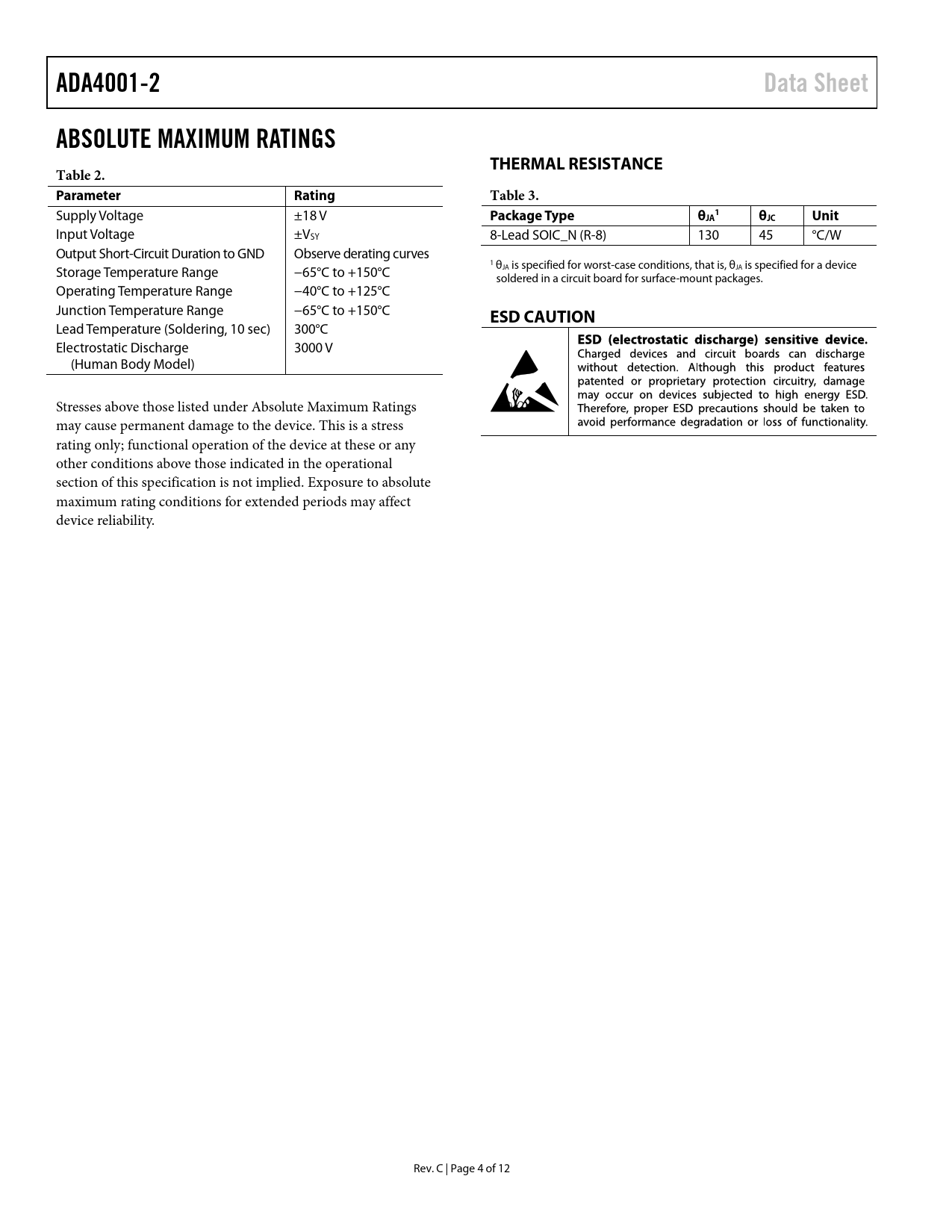

ADA4001-2. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 2. Parameter. Rating. Table 3. Package Type. θ 1. θJC. Unit
Model Line for this Datasheet
Text Version of Document
link to page 4
ADA4001-2 Data Sheet ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 2. Parameter Rating Table 3.
Supply Voltage ±18 V
Package Type θ 1 JA θJC Unit
Input Voltage ±VSY 8-Lead SOIC_N (R-8) 130 45 °C/W Output Short-Circuit Duration to GND Observe derating curves 1 Storage Temperature Range −65°C to +150°C θJA is specified for worst-case conditions, that is, θJA is specified for a device soldered in a circuit board for surface-mount packages. Operating Temperature Range −40°C to +125°C Junction Temperature Range −65°C to +150°C
ESD CAUTION
Lead Temperature (Soldering, 10 sec) 300°C Electrostatic Discharge 3000 V (Human Body Model) Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. C | Page 4 of 12 Document Outline Features Applications Pin Configuration General Description Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Applications Information Total Noise Including Source Resistors I-V Conversion Applications Photodiode Circuits Input Bias Current Noise Considerations Outline Dimensions Ordering Guide
