Datasheet AD8067 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | High Gain Bandwidth Product, Precision FastFET Op Amp |
| Pages / Page | 24 / 9 — Data Sheet. AD8067. G = +10. CL = 100pF. VIN = 20mV p-p. CL = 0pF. 1.5V. … |
| Revision | B |
| File Format / Size | PDF / 419 Kb |
| Document Language | English |
Data Sheet. AD8067. G = +10. CL = 100pF. VIN = 20mV p-p. CL = 0pF. 1.5V. 50mV/DIV. 25ns/DIV. 10VIN. OUT. S =. 12V. VIN = 2V p-p G = +10. 2V/DIV
Model Line for this Datasheet
Text Version of Document
Data Sheet AD8067 G = +10 G = +10 CL = 100pF VIN = 20mV p-p VIN = 20mV p-p CL = 0pF 1.5V 50mV/DIV 25ns/DIV 50mV/DIV 25ns/DIV

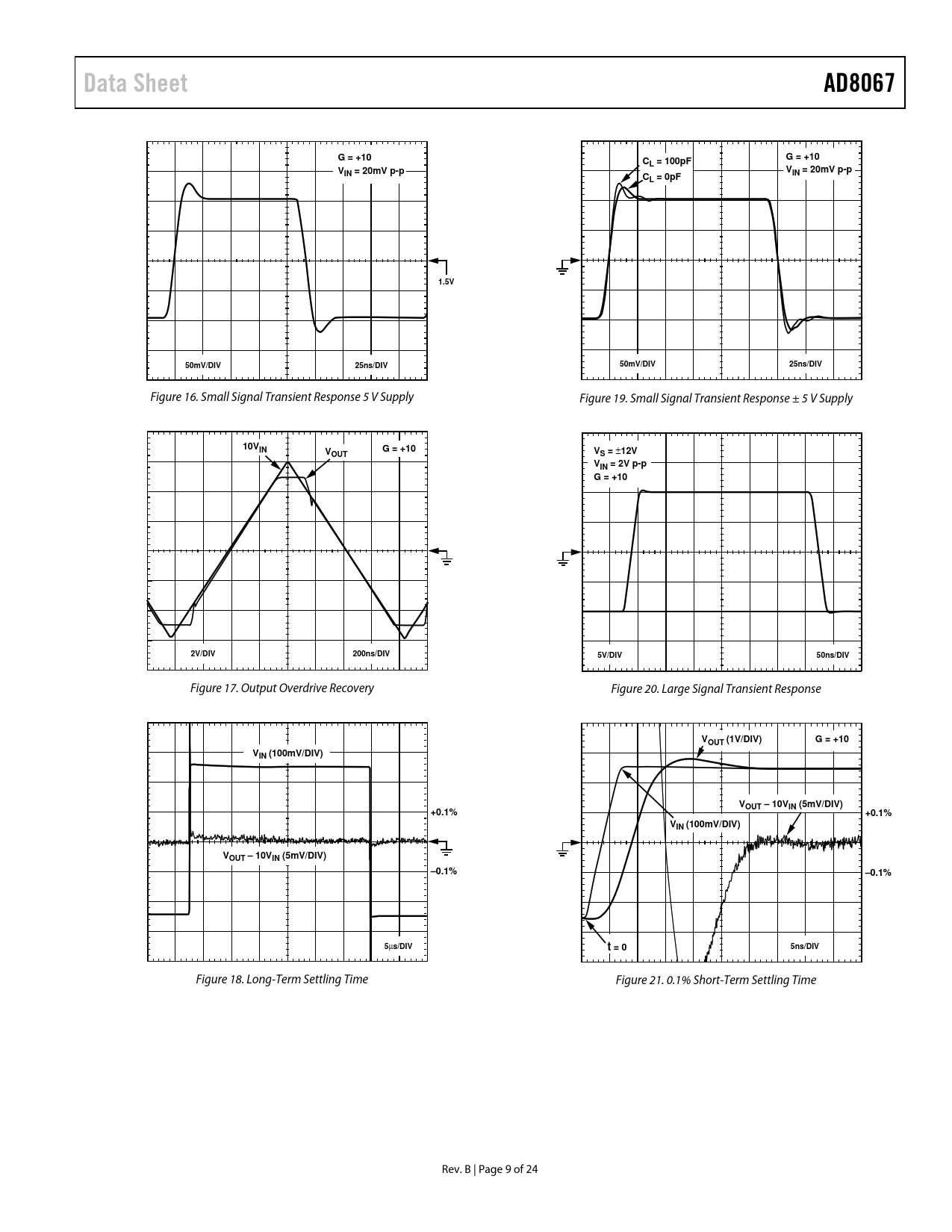

Figure 16. Small Signal Transient Response 5 V Supply Figure 19. Small Signal Transient Response ± 5 V Supply
10VIN V G = +10 V OUT S =
12V VIN = 2V p-p G = +10 2V/DIV 200ns/DIV 5V/DIV 50ns/DIV
Figure 17. Output Overdrive Recovery Figure 20. Large Signal Transient Response
VOUT (1V/DIV) G = +10 VIN (100mV/DIV) VOUT – 10VIN (5mV/DIV) +0.1% +0.1% VIN (100mV/DIV) VOUT – 10VIN (5mV/DIV) –0.1% –0.1% 5
s/DIV t = 0 5ns/DIV
Figure 18. Long-Term Settling Time Figure 21. 0.1% Short-Term Settling Time Rev. B | Page 9 of 24 Document Outline Features Applications Connection Diagram (Top View) General Description Revision History Specifications for ±5 V Specifications for +5 V Specifications for ±12 V Absolute Maximum Ratings Maximum Power Dissipation ESD Caution Typical Performance Characteristics Test Circuits Theory of Operation Basic Frequency Response Resistor Selection for Wideband Operation DC Error Calculations Input and Output Overload Behavior Input Protection Capacitive Load Drive Layout, Grounding, and Bypassing Considerations Layout Grounding Power Supply Bypassing Applications Wideband Photodiode Preamp Using the AD8067 at Gains of Less Than 8 Single-Supply Operation High Gain, High Bandwidth Composite Amplifier Outline Dimensions Ordering Guide
