Data Sheet. AD8022. SPECIFICATIONS. Table 1. Parameter Conditions. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
link to page 16 link to page 3 link to page 3 link to page 9

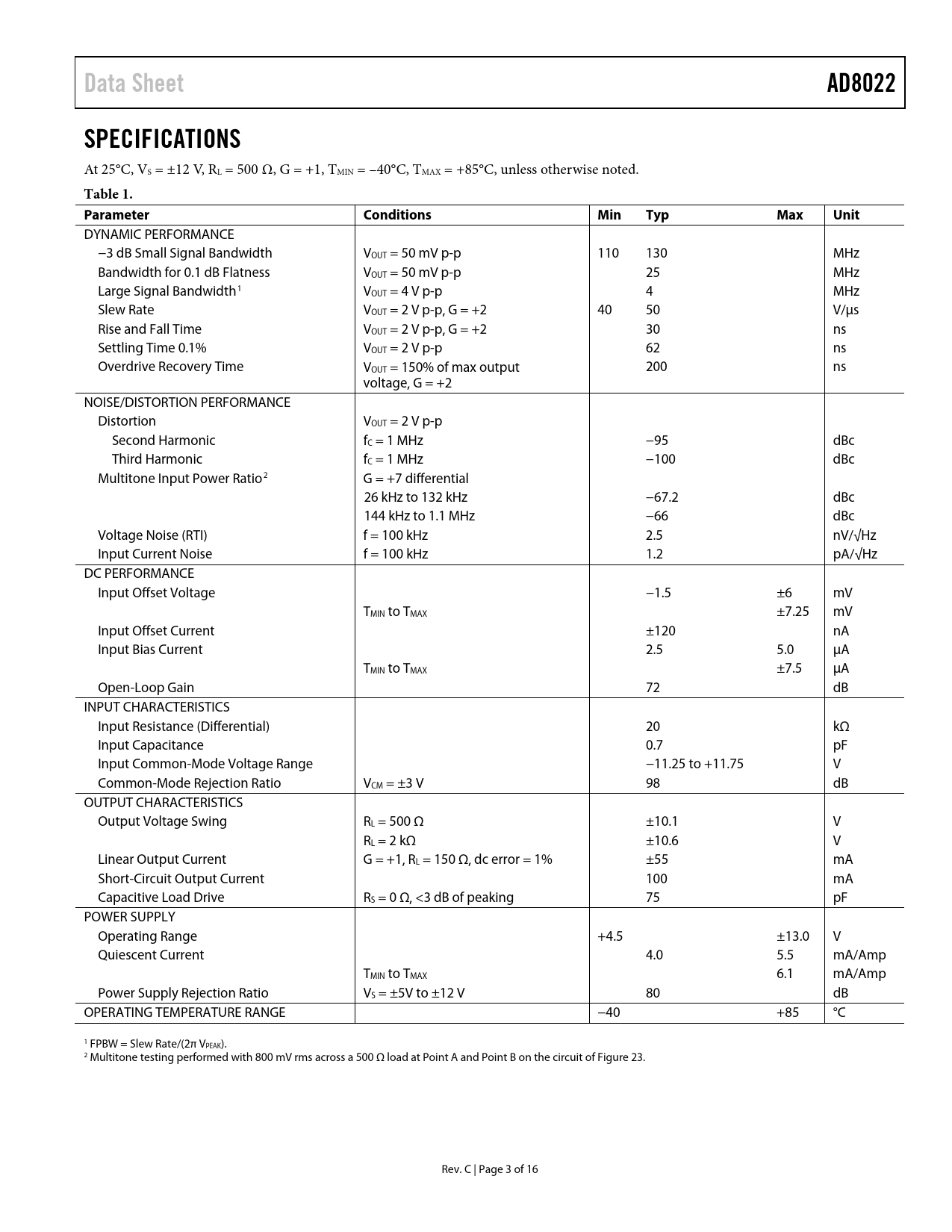

Data Sheet AD8022 SPECIFICATIONS
At 25°C, VS = ±12 V, RL = 500 Ω, G = +1, TMIN = –40°C, TMAX = +85°C, unless otherwise noted.
Table 1. Parameter Conditions Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Small Signal Bandwidth VOUT = 50 mV p-p 110 130 MHz Bandwidth for 0.1 dB Flatness VOUT = 50 mV p-p 25 MHz Large Signal Bandwidth1 VOUT = 4 V p-p 4 MHz Slew Rate VOUT = 2 V p-p, G = +2 40 50 V/μs Rise and Fall Time VOUT = 2 V p-p, G = +2 30 ns Settling Time 0.1% VOUT = 2 V p-p 62 ns Overdrive Recovery Time VOUT = 150% of max output 200 ns voltage, G = +2 NOISE/DISTORTION PERFORMANCE Distortion VOUT = 2 V p-p Second Harmonic fC = 1 MHz −95 dBc Third Harmonic fC = 1 MHz −100 dBc Multitone Input Power Ratio2 G = +7 differential 26 kHz to 132 kHz −67.2 dBc 144 kHz to 1.1 MHz −66 dBc Voltage Noise (RTI) f = 100 kHz 2.5 nV/√Hz Input Current Noise f = 100 kHz 1.2 pA/√Hz DC PERFORMANCE Input Offset Voltage −1.5 ±6 mV TMIN to TMAX ±7.25 mV Input Offset Current ±120 nA Input Bias Current 2.5 5.0 μA TMIN to TMAX ±7.5 μA Open-Loop Gain 72 dB INPUT CHARACTERISTICS Input Resistance (Differential) 20 kΩ Input Capacitance 0.7 pF Input Common-Mode Voltage Range −11.25 to +11.75 V Common-Mode Rejection Ratio VCM = ±3 V 98 dB OUTPUT CHARACTERISTICS Output Voltage Swing RL = 500 Ω ±10.1 V RL = 2 kΩ ±10.6 V Linear Output Current G = +1, RL = 150 Ω, dc error = 1% ±55 mA Short-Circuit Output Current 100 mA Capacitive Load Drive RS = 0 Ω, <3 dB of peaking 75 pF POWER SUPPLY Operating Range +4.5 ±13.0 V Quiescent Current 4.0 5.5 mA/Amp TMIN to TMAX 6.1 mA/Amp Power Supply Rejection Ratio VS = ±5V to ±12 V 80 dB OPERATING TEMPERATURE RANGE −40 +85 °C 1 FPBW = Slew Rate/(2π VPEAK). 2 Multitone testing performed with 800 mV rms across a 500 Ω load at Point A and Point B on the circuit of Figure 23. Rev. C | Page 3 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTIONS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS DMT MODULATION AND MULTITONE POWER RATIO (MTPR) CHANNEL CAPACITY AND SNR POWER SUPPLY AND DECOUPLING LAYOUT CONSIDERATIONS OUTLINE DIMENSIONS ORDERING GUIDE
