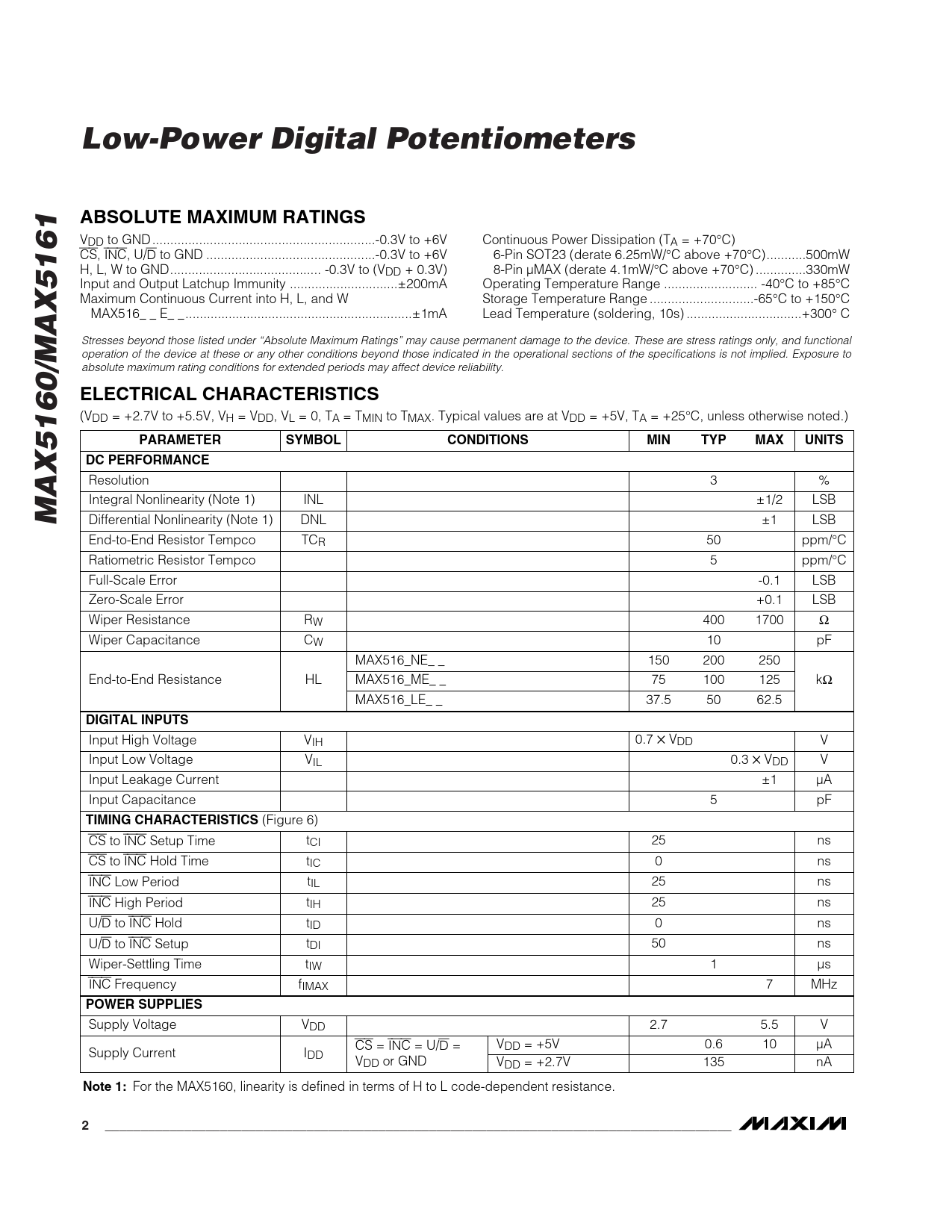

Low-Power Digital Potentiometers. ABSOLUTE MAXIMUM RATINGS. ELECTRICAL CHARACTERISTICS. PARAMETER. SYMBOL. CONDITIONS. MIN. TYP. MAX
Model Line for this Datasheet
Text Version of Document
Low-Power Digital Potentiometers ABSOLUTE MAXIMUM RATINGS
VDD to GND ..-0.3V to +6V Continuous Power Dissipation (TA = +70°C) CS, INC, U/D to GND ...-0.3V to +6V 6-Pin SOT23 (derate 6.25mW/°C above +70°C)...500mW H, L, W to GND.. -0.3V to (VDD + 0.3V) 8-Pin µMAX (derate 4.1mW/°C above +70°C) ..330mW Input and Output Latchup Immunity ..±200mA Operating Temperature Range .. -40°C to +85°C Maximum Continuous Current into H, L, and W Storage Temperature Range ...-65°C to +150°C MAX516_ _ E_ _...±1mA Lead Temperature (soldering, 10s) ..+300° C Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS
(VDD = +2.7V to +5.5V, VH = VDD, VL = 0, TA = TMIN to TMAX. Typical values are at VDD = +5V, TA = +25°C, unless otherwise noted.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS DC PERFORMANCE
Resolution 3 % Integral Nonlinearity (Note 1) INL ±1/2 LSB
MAX5160/MAX5161
Differential Nonlinearity (Note 1) DNL ±1 LSB End-to-End Resistor Tempco TCR 50 ppm/°C Ratiometric Resistor Tempco 5 ppm/°C Full-Scale Error -0.1 LSB Zero-Scale Error +0.1 LSB Wiper Resistance RW 400 1700 Ω Wiper Capacitance CW 10 pF MAX516_NE_ _ 150 200 250 End-to-End Resistance HL MAX516_ME_ _ 75 100 125 kΩ MAX516_LE_ _ 37.5 50 62.5
DIGITAL INPUTS
Input High Voltage VIH 0.7 ✕ VDD V Input Low Voltage VIL 0.3 ✕ VDD V Input Leakage Current ±1 µA Input Capacitance 5 pF
TIMING CHARACTERISTICS
(Figure 6) CS to INC Setup Time tCI 25 ns CS to INC Hold Time tIC 0 ns INC Low Period tIL 25 ns INC High Period tIH 25 ns U/D to INC Hold tID 0 ns U/D to INC Setup tDI 50 ns Wiper-Settling Time tIW 1 µs INC Frequency fIMAX 7 MHz
POWER SUPPLIES
Supply Voltage VDD 2.7 5.5 V CS = INC = U/D = VDD = +5V 0.6 10 µA Supply Current IDD VDD or GND VDD = +2.7V 135 nA
Note 1:
For the MAX5160, linearity is defined in terms of H to L code-dependent resistance.
