Datasheet NC7S14 (ON Semiconductor) - 2
| Manufacturer | ON Semiconductor |
| Description | TinyLogic HS Inverter with Schmitt Trigger Input |
| Pages / Page | 10 / 2 — NC7S14. Pin Configurations. Figure 2. SC−88A and SC−74A (Top View). … |
| Revision | 3 |
| File Format / Size | PDF / 306 Kb |
| Document Language | English |

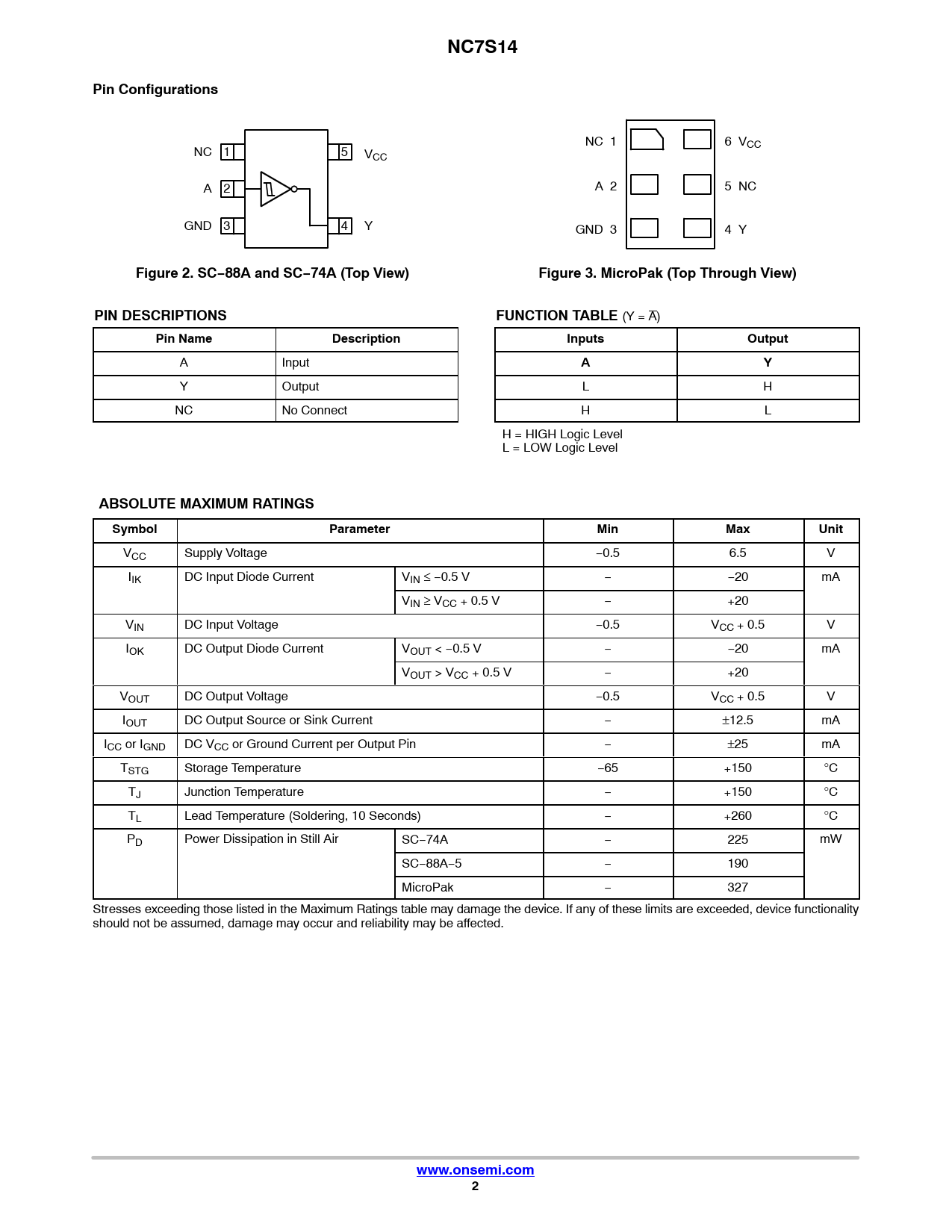

NC7S14. Pin Configurations. Figure 2. SC−88A and SC−74A (Top View). Figure 3. MicroPak (Top Through View). PIN DESCRIPTIONS
Model Line for this Datasheet
Text Version of Document
NC7S14 Pin Configurations
NC 1 6 V NC 1 5 CC VCC A 2 A 2 5 NC GND 3 4 Y GND 3 4 Y
Figure 2. SC−88A and SC−74A (Top View) Figure 3. MicroPak (Top Through View) PIN DESCRIPTIONS FUNCTION TABLE
(Y = A)
Pin Name Description Inputs Output
A Input
A Y
Y Output L H NC No Connect H L H = HIGH Logic Level L = LOW Logic Level
ABSOLUTE MAXIMUM RATINGS Symbol Parameter Min Max Unit
VCC Supply Voltage −0.5 6.5 V IIK DC Input Diode Current VIN ≤ −0.5 V − −20 mA VIN ≥ VCC + 0.5 V − +20 VIN DC Input Voltage −0.5 VCC + 0.5 V IOK DC Output Diode Current VOUT < −0.5 V − −20 mA VOUT > VCC + 0.5 V − +20 VOUT DC Output Voltage −0.5 VCC + 0.5 V IOUT DC Output Source or Sink Current − ±12.5 mA ICC or IGND DC VCC or Ground Current per Output Pin − ±25 mA TSTG Storage Temperature −65 +150 °C TJ Junction Temperature − +150 °C TL Lead Temperature (Soldering, 10 Seconds) − +260 °C PD Power Dissipation in Still Air SC−74A − 225 mW SC−88A−5 − 190 MicroPak − 327 Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
www.onsemi.com 2
