FT232R USB UART IC Datasheet Version 2.16
Document No.: FT_000053 Clearance No.: FTDI# 38
10 Alternative Parts

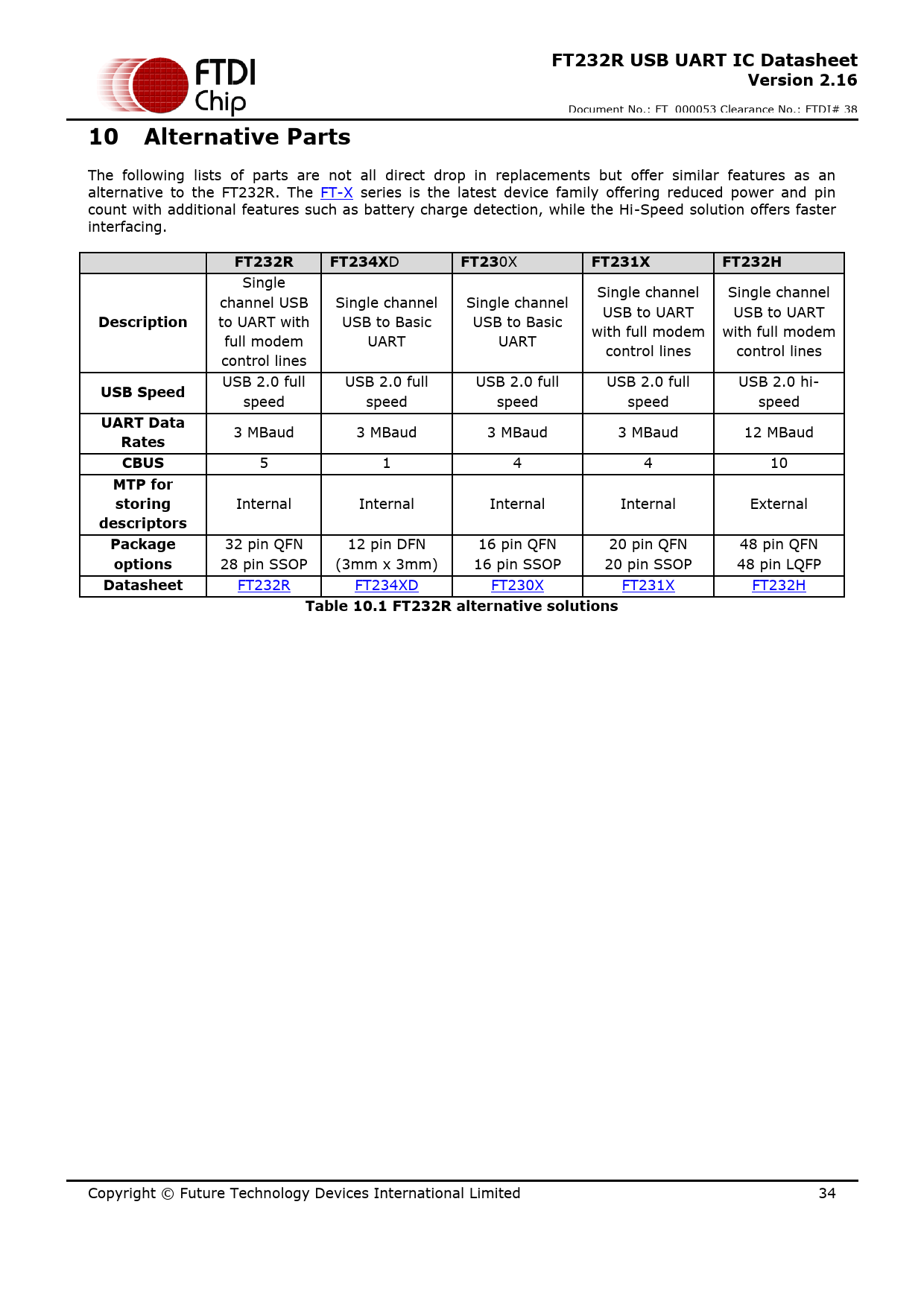

The following lists of parts are not all direct drop in replacements but offer similar features as an alternative to the FT232R. The FT-X series is the latest device family offering reduced power and pin count with additional features such as battery charge detection, while the Hi-Speed solution offers faster interfacing.
FT232R FT234X
D
FT23
0X
FT231X FT232H
Single Single channel Single channel channel USB Single channel Single channel USB to UART USB to UART
Description
to UART with USB to Basic USB to Basic with full modem with full modem full modem UART UART control lines control lines control lines USB 2.0 full USB 2.0 full USB 2.0 full USB 2.0 full USB 2.0 hi-
USB Speed
speed speed speed speed speed
UART Data
3 MBaud 3 MBaud 3 MBaud 3 MBaud 12 MBaud
Rates CBUS
5 1 4 4 10
MTP for storing
Internal Internal Internal Internal External
descriptors Package
32 pin QFN 12 pin DFN 16 pin QFN 20 pin QFN 48 pin QFN
options
28 pin SSOP (3mm x 3mm) 16 pin SSOP 20 pin SSOP 48 pin LQFP
Datasheet
FT232R FT234XD FT230X FT231X FT232H
Table 10.1 FT232R alternative solutions
