BLP2425M10S250P. Power LDMOS transistor. 6. Characteristics. Table 6. DC characteristics. Symbol Parameter. Conditions. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
link to page 4 link to page 3 link to page 3

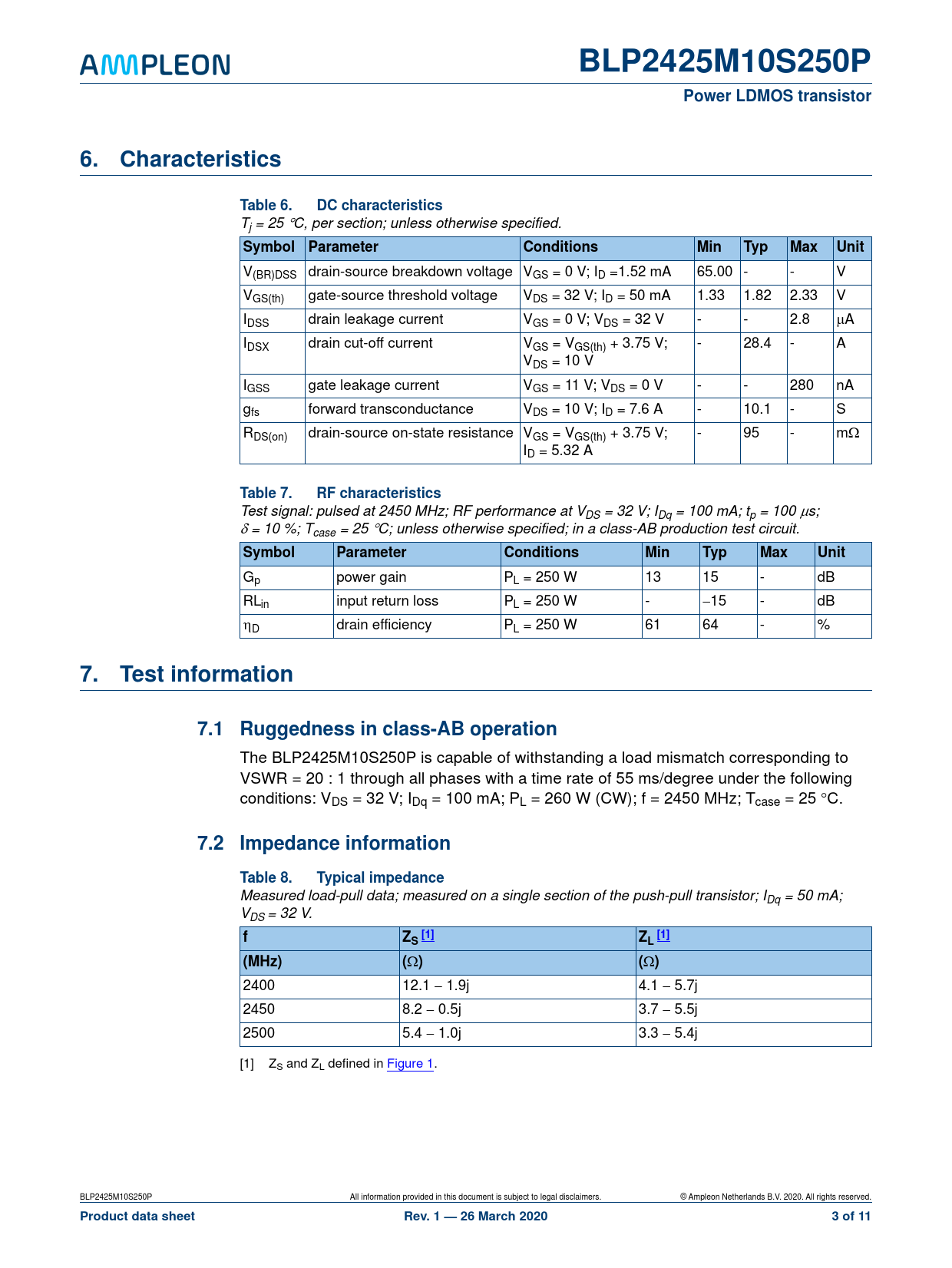

BLP2425M10S250P Power LDMOS transistor 6. Characteristics Table 6. DC characteristics
Tj = 25 C, per section; unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
V(BR)DSS drain-source breakdown voltage VGS = 0 V; ID =1.52 mA 65.00 - - V VGS(th) gate-source threshold voltage VDS = 32 V; ID = 50 mA 1.33 1.82 2.33 V IDSS drain leakage current VGS = 0 V; VDS = 32 V - - 2.8 A IDSX drain cut-off current VGS = VGS(th) + 3.75 V; - 28.4 - A VDS = 10 V IGSS gate leakage current VGS = 11 V; VDS = 0 V - - 280 nA gfs forward transconductance VDS = 10 V; ID = 7.6 A - 10.1 - S RDS(on) drain-source on-state resistance VGS = VGS(th) + 3.75 V; - 95 - m ID = 5.32 A
Table 7. RF characteristics
Test signal: pulsed at 2450 MHz; RF performance at VDS = 32 V; IDq = 100 mA; tp = 100 s; = 10 %; Tcase = 25 C; unless otherwise specified; in a class-AB production test circuit.
Symbol Parameter Conditions Min Typ Max Unit
Gp power gain PL = 250 W 13 15 - dB RLin input return loss PL = 250 W - 15 - dB D drain efficiency PL = 250 W 61 64 - %
7. Test information 7.1 Ruggedness in class-AB operation
The BLP2425M10S250P is capable of withstanding a load mismatch corresponding to VSWR = 20 : 1 through all phases with a time rate of 55 ms/degree under the following conditions: VDS = 32 V; IDq = 100 mA; PL = 260 W (CW); f = 2450 MHz; Tcase = 25 C.
7.2 Impedance information Table 8. Typical impedance
Measured load-pull data; measured on a single section of the push-pull transistor; IDq = 50 mA; VDS = 32 V.
f Z [1] [1] S ZL (MHz) ( ) ( )
2400 12.1 1.9j 4.1 5.7j 2450 8.2 0.5j 3.7 5.5j 2500 5.4 1.0j 3.3 5.4j [1] ZS and ZL defined in Figure 1. BLP2425M10S250P All information provided in this document is subject to legal disclaimers. © Ampleon Netherlands B.V. 2020. All rights reserved.
Product data sheet Rev. 1 — 26 March 2020 3 of 11
