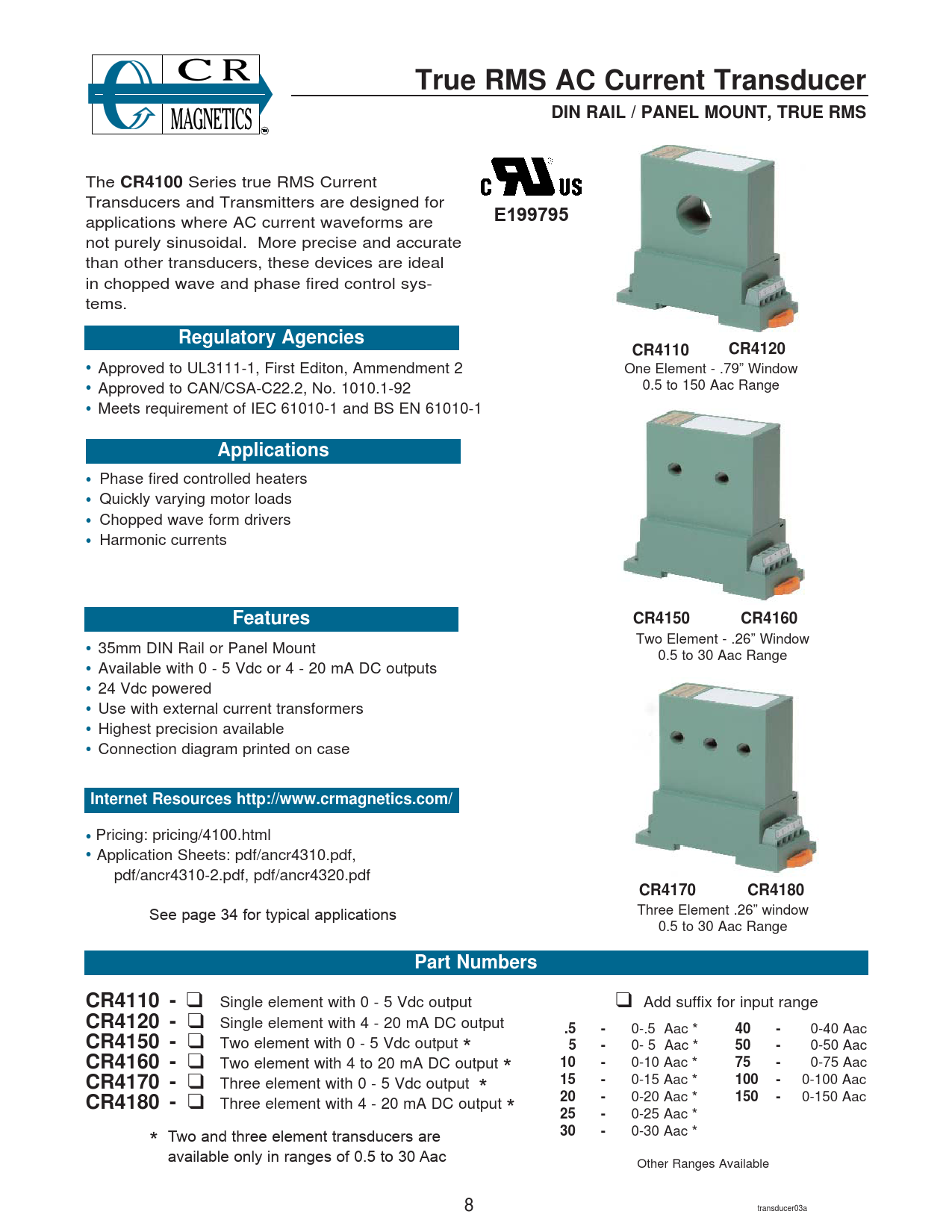

True RMS AC Current Transducer DIN RAIL / PANEL MOUNT, TRUE RMS
The
CR4100
Series true RMS Current Transducers and Transmitters are designed for
E199795
applications where AC current waveforms are not purely sinusoidal. More precise and accurate than other transducers, these devices are ideal in chopped wave and phase fired control sys- tems.
Regulatory Agencies CR4110 CR4120
• Approved to UL3111-1, First Editon, Ammendment 2 One Element - .79” Window 0.5 to 150 Aac Range • Approved to CAN/CSA-C22.2, No. 1010.1-92 • Meets requirement of IEC 61010-1 and BS EN 61010-1
Applications
• Phase fired controlled heaters • Quickly varying motor loads • Chopped wave form drivers • Harmonic currents
Features CR4150 CR4160
Two Element - .26” Window • 35mm DIN Rail or Panel Mount 0.5 to 30 Aac Range • Available with 0 - 5 Vdc or 4 - 20 mA DC outputs • 24 Vdc powered • Use with external current transformers • Highest precision available • Connection diagram printed on case
Internet Resources http://www.crmagnetics.com/
• Pricing: pricing/4100.html • Application Sheets: pdf/ancr4310.pdf, pdf/ancr4310-2.pdf, pdf/ancr4320.pdf
CR4170 CR4180
Three Element .26” window See page 34 for typical applications 0.5 to 30 Aac Range
Part Numbers CR4110 -
❑ Single element with 0 - 5 Vdc output ❑ Add suffix for input range
CR4120 -
❑ Single element with 4 - 20 mA DC output
.5 -
0-.5 Aac *
40 -
0-40 Aac
CR4150 -
❑ Two element with 0 - 5 Vdc output *
5 -
0- 5 Aac *
50 -
0-50 Aac
CR4160 -
❑ Two element with 4 to 20 mA DC output *
10 -
0-10 Aac *
75 -
0-75 Aac
CR4170 -
❑ Three element with 0 - 5 Vdc output *
15 -
0-15 Aac *
100 -
0-100 Aac
CR4180 -
❑ Three element with 4 - 20 mA DC output *
20 -
0-20 Aac *
150 -
0-150 Aac
25 -
0-25 Aac *
30 -
0-30 Aac * * Two and three element transducers are available only in ranges of 0.5 to 30 Aac Other Ranges Available 8 transducer03a
