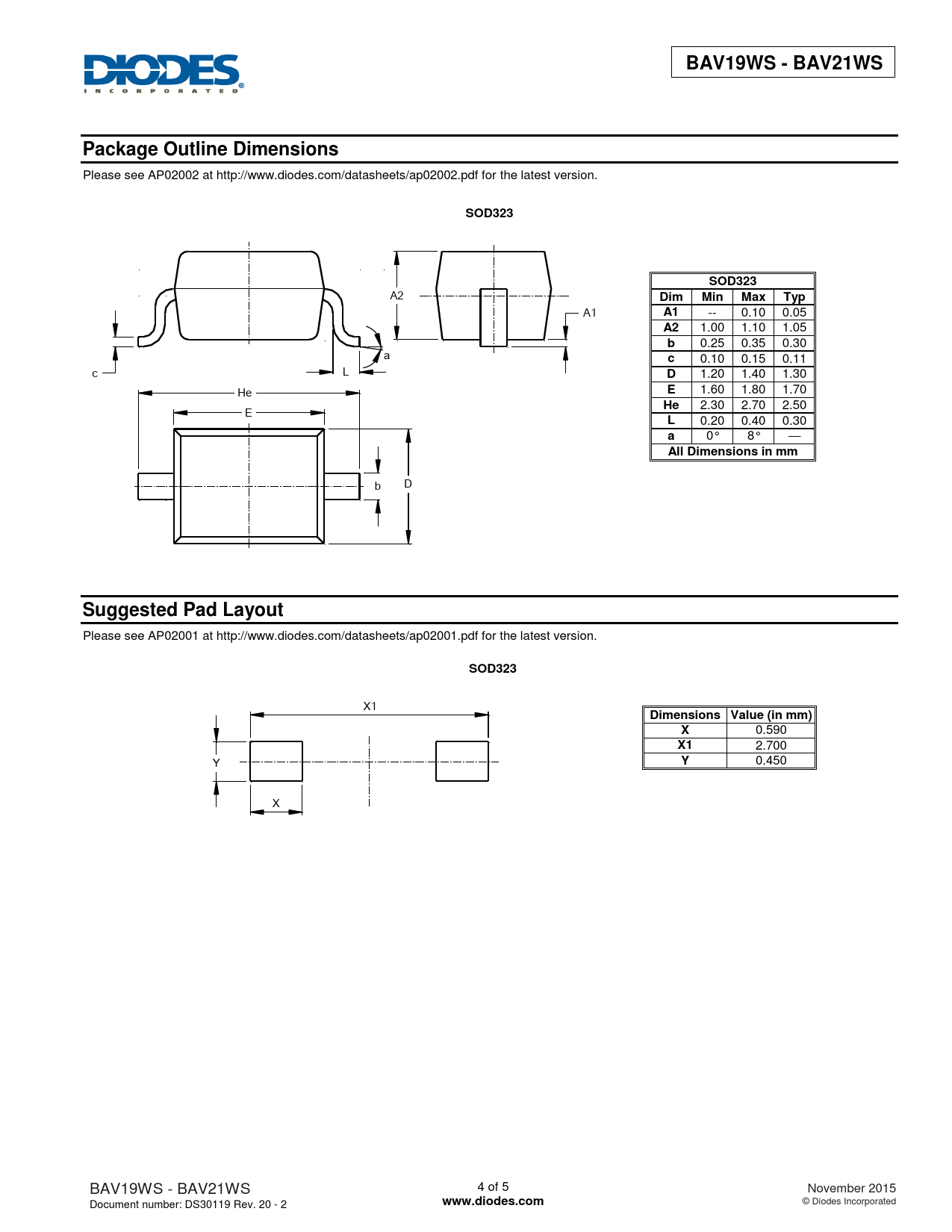

BAV19WS - BAV21WS. Package Outline Dimensions. SOD323. Dim. Min. Max. Typ. All Dimensions in mm. Suggested Pad Layout
Model Line for this Datasheet
Text Version of Document
BAV19WS - BAV21WS Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
SOD323 SOD323
A2
Dim Min Max Typ
A1
A1
-- 0.10 0.05
A2
1.00 1.10 1.05
b
0.25 0.35 0.30 a
c
0.10 0.15 0.11 c L
D
1.20 1.40 1.30 He
E
1.60 1.80 1.70 E
He
2.30 2.70 2.50
L
0.20 0.40 0.30
a
0° 8° —
All Dimensions in mm
b D
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
SOD323
X1
Dimensions Value (in mm) X
0.590
X1
2.700 Y
Y
0.450 X BAV19WS - BAV21WS 4 of 5 November 2015 Document number: DS30119 Rev. 20 - 2
