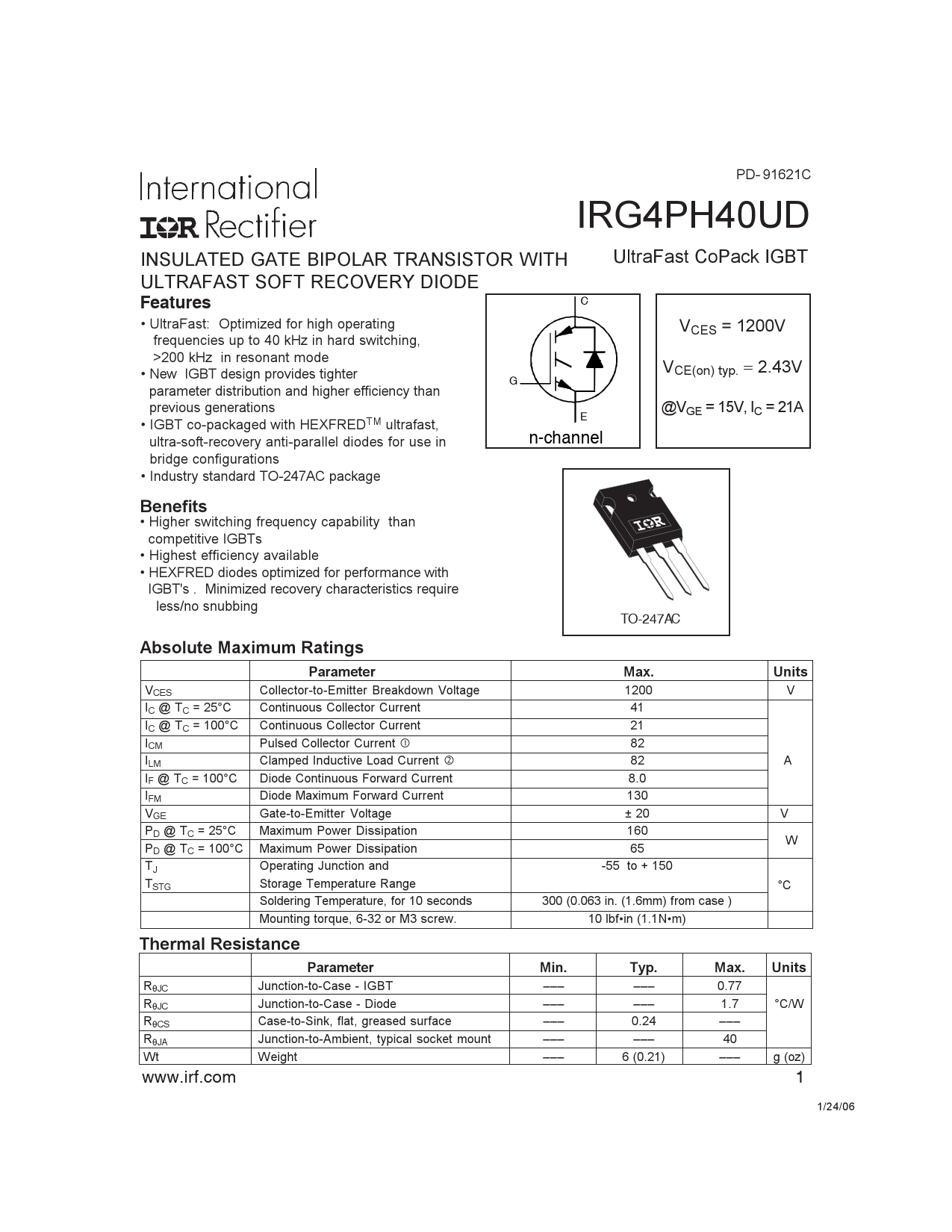

PD- 91621C IRG4PH40UD INSULATED GATE BIPOLAR TRANSISTOR WITH UltraFast CoPack IGBT ULTRAFAST SOFT RECOVERY DIODE
Features
C UltraFast: Optimized for high operating VCES = 1200V frequencies up to 40 kHz in hard switching, >200 kHz in resonant mode VCE(on) typ. = 2.43V New IGBT design provides tighter G parameter distribution and higher efficiency than previous generations @V E GE = 15V, IC = 21A IGBT co-packaged with HEXFREDTM ultrafast, n-channel ultra-soft-recovery anti-parallel diodes for use in bridge configurations Industry standard TO-247AC package
Benefits
Higher switching frequency capability than competitive IGBTs Highest efficiency available HEXFRED diodes optimized for performance with IGBT's . Minimized recovery characteristics require less/no snubbing TO-247AC
Absolute Maximum Ratings Parameter Max. Units
VCES Collector-to-Emitter Breakdown Voltage 1200 V IC @ TC = 25°C Continuous Collector Current 41 IC @ TC = 100°C Continuous Collector Current 21 ICM Pulsed Collector Current 82 ILM Clamped Inductive Load Current 82 A IF @ TC = 100°C Diode Continuous Forward Current 8.0 IFM Diode Maximum Forward Current 130 VGE Gate-to-Emitter Voltage ± 20 V PD @ TC = 25°C Maximum Power Dissipation 160 W PD @ TC = 100°C Maximum Power Dissipation 65 TJ Operating Junction and -55 to + 150 TSTG Storage Temperature Range °C Soldering Temperature, for 10 seconds 300 (0.063 in. (1.6mm) from case ) Mounting torque, 6-32 or M3 screw. 10 lbfin (1.1Nm)
Thermal Resistance Parameter Min. Typ. Max. Units
RθJC Junction-to-Case - IGBT 0.77 RθJC Junction-to-Case - Diode 1.7 °C/W RθCS Case-to-Sink, flat, greased surface 0.24 RθJA Junction-to-Ambient, typical socket mount 40 Wt Weight 6 (0.21) g (oz) www.irf.com 1 1/24/06
