T1635H-8T. Characteristics (curves)
Model Line for this Datasheet
Text Version of Document

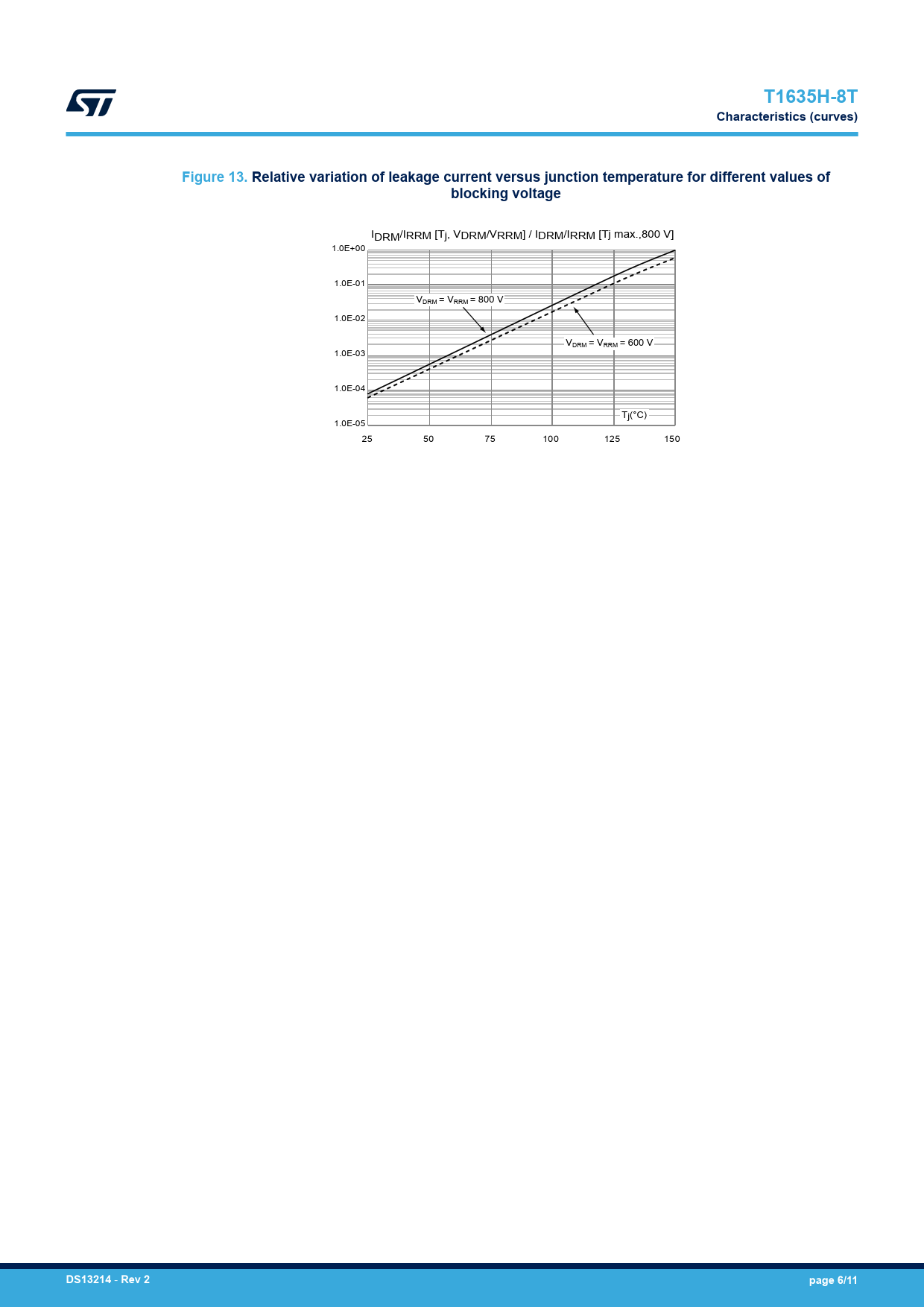

T1635H-8T Characteristics (curves) Figure 13. Relative variation of leakage current versus junction temperature for different values of blocking voltage
IDRM/IRRM [Tj, VDRM/VRRM] / IDRM/IRRM [Tj max.,800 V] 1.0E+00 1.0E-01 VDRM = VRRM = 800 V 1.0E-02 VDRM = VRRM = 600 V 1.0E-03 1.0E-04 Tj(°C) 1.0E-05 25 50 75 100 125 150
DS13214
-
Rev 2 page 6/11
