Datasheet T2035H-8G (STMicroelectronics) - 9
| Manufacturer | STMicroelectronics |
| Description | 20 A - 800 V - 150°C H-series Triac in D²PAK |
| Pages / Page | 12 / 9 — T2035H-8G. D²PAK package information. Figure 16. D²PAK recommended … |
| File Format / Size | PDF / 275 Kb |
| Document Language | English |

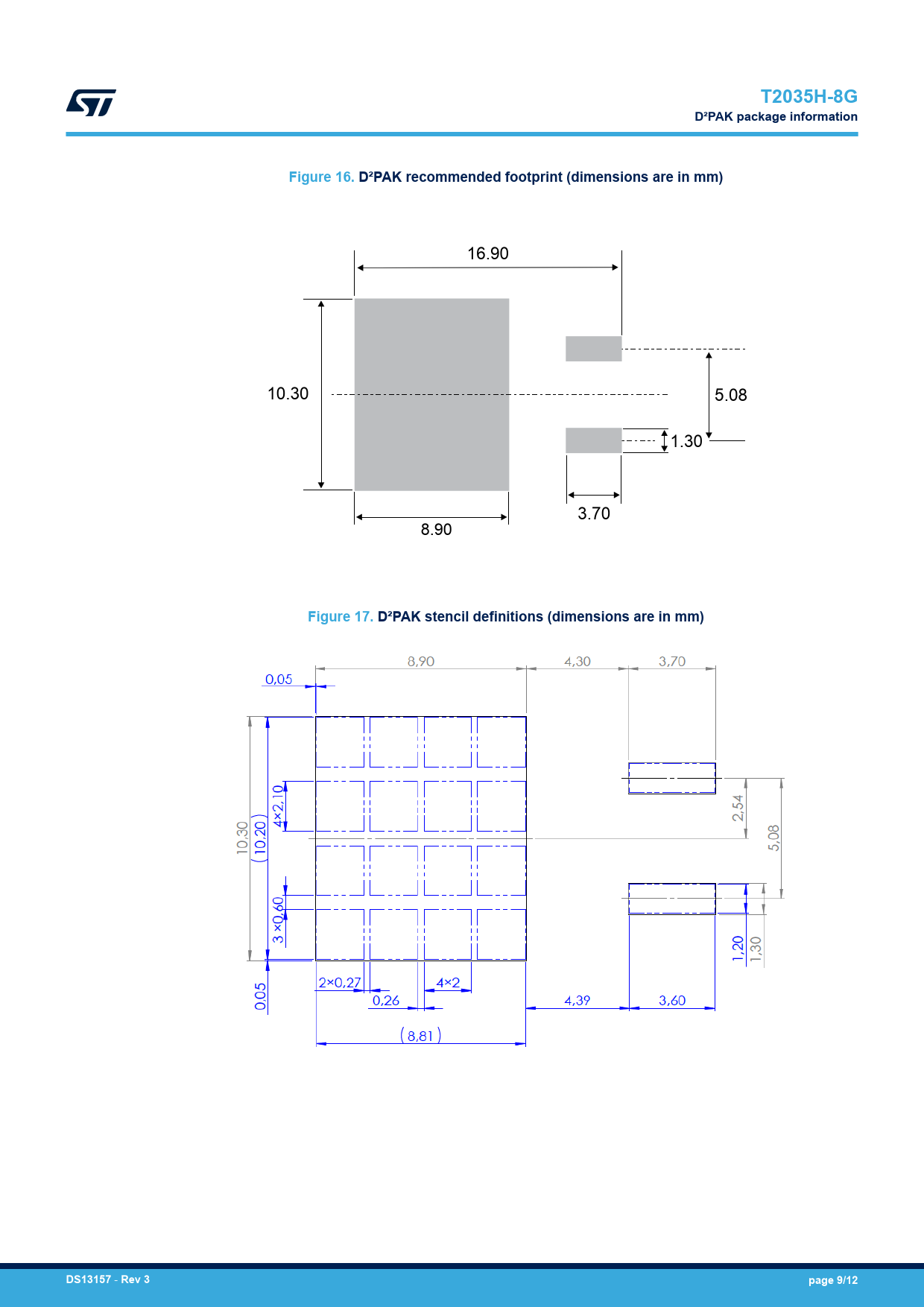

T2035H-8G. D²PAK package information. Figure 16. D²PAK recommended footprint (dimensions are in mm)
Model Line for this Datasheet
Text Version of Document
T2035H-8G D²PAK package information Figure 16. D²PAK recommended footprint (dimensions are in mm)
16.90 10.30 5.08 1.30 3.70 8.90
Figure 17. D²PAK stencil definitions (dimensions are in mm) DS13157
-
Rev 3 page 9/12
