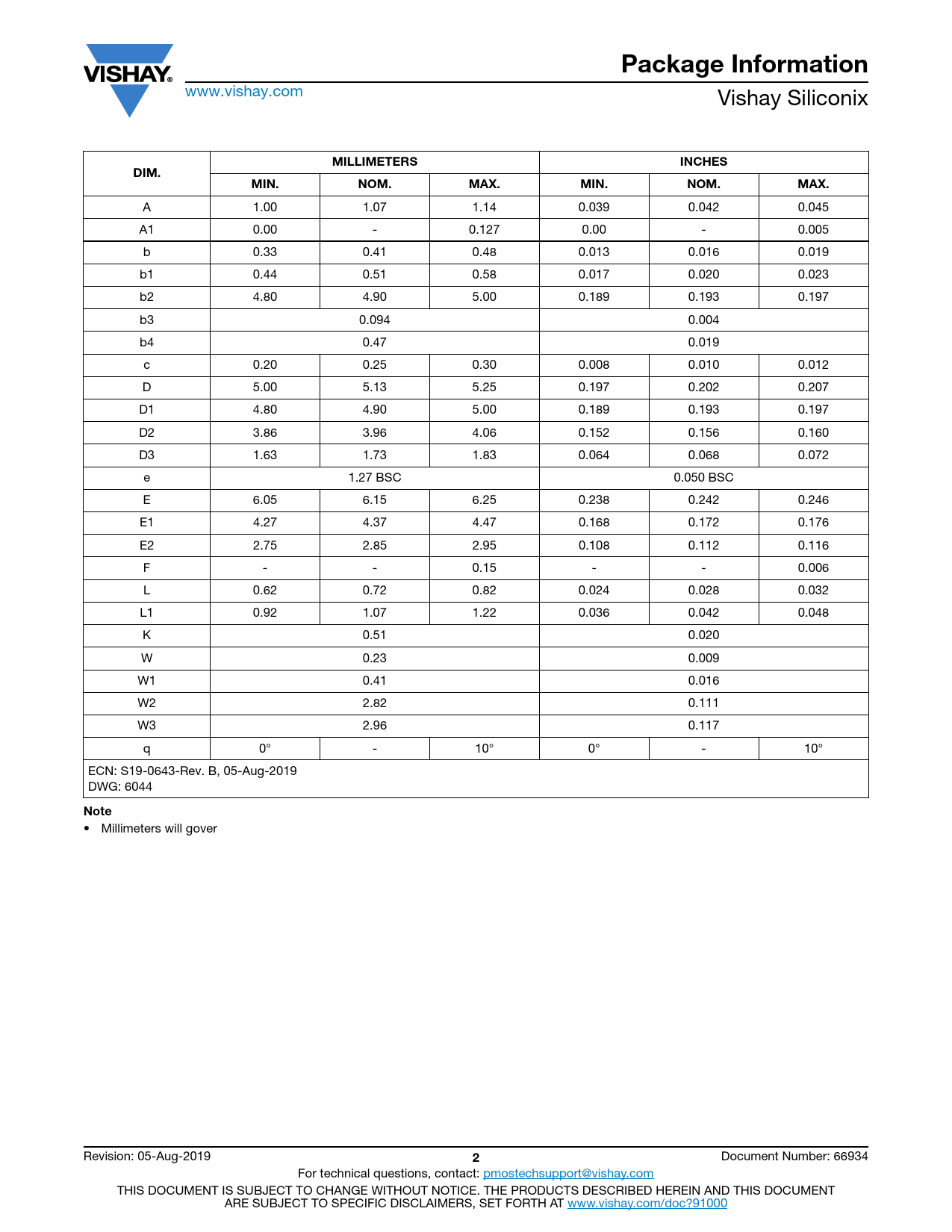

Package Information
www.vishay.com Vishay Siliconix
MILLIMETERS INCHES DIM. MIN. NOM. MAX. MIN. NOM. MAX.
A 1.00 1.07 1.14 0.039 0.042 0.045 A1 0.00 - 0.127 0.00 - 0.005 b 0.33 0.41 0.48 0.013 0.016 0.019 b1 0.44 0.51 0.58 0.017 0.020 0.023 b2 4.80 4.90 5.00 0.189 0.193 0.197 b3 0.094 0.004 b4 0.47 0.019 c 0.20 0.25 0.30 0.008 0.010 0.012 D 5.00 5.13 5.25 0.197 0.202 0.207 D1 4.80 4.90 5.00 0.189 0.193 0.197 D2 3.86 3.96 4.06 0.152 0.156 0.160 D3 1.63 1.73 1.83 0.064 0.068 0.072 e 1.27 BSC 0.050 BSC E 6.05 6.15 6.25 0.238 0.242 0.246 E1 4.27 4.37 4.47 0.168 0.172 0.176 E2 2.75 2.85 2.95 0.108 0.112 0.116 F - - 0.15 - - 0.006 L 0.62 0.72 0.82 0.024 0.028 0.032 L1 0.92 1.07 1.22 0.036 0.042 0.048 K 0.51 0.020 W 0.23 0.009 W1 0.41 0.016 W2 2.82 0.111 W3 2.96 0.117 q 0° - 10° 0° - 10° ECN: S19-0643-Rev. B, 05-Aug-2019 DWG: 6044
Note
• Millimeters will gover Revision: 05-Aug-2019
2
Document Number: 66934 For technical questions, contact: pmostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
