Datasheet STM32WB5MMG (STMicroelectronics) - 6
| Manufacturer | STMicroelectronics |
| Description | Bluetooth Low Energy 5.0 and 802.15.4 module |
| Pages / Page | 31 / 6 — STM32WB5MMG. Pin description. Table 1. STM32WB5MMG pin/ball definition. … |
| File Format / Size | PDF / 3.7 Mb |
| Document Language | English |

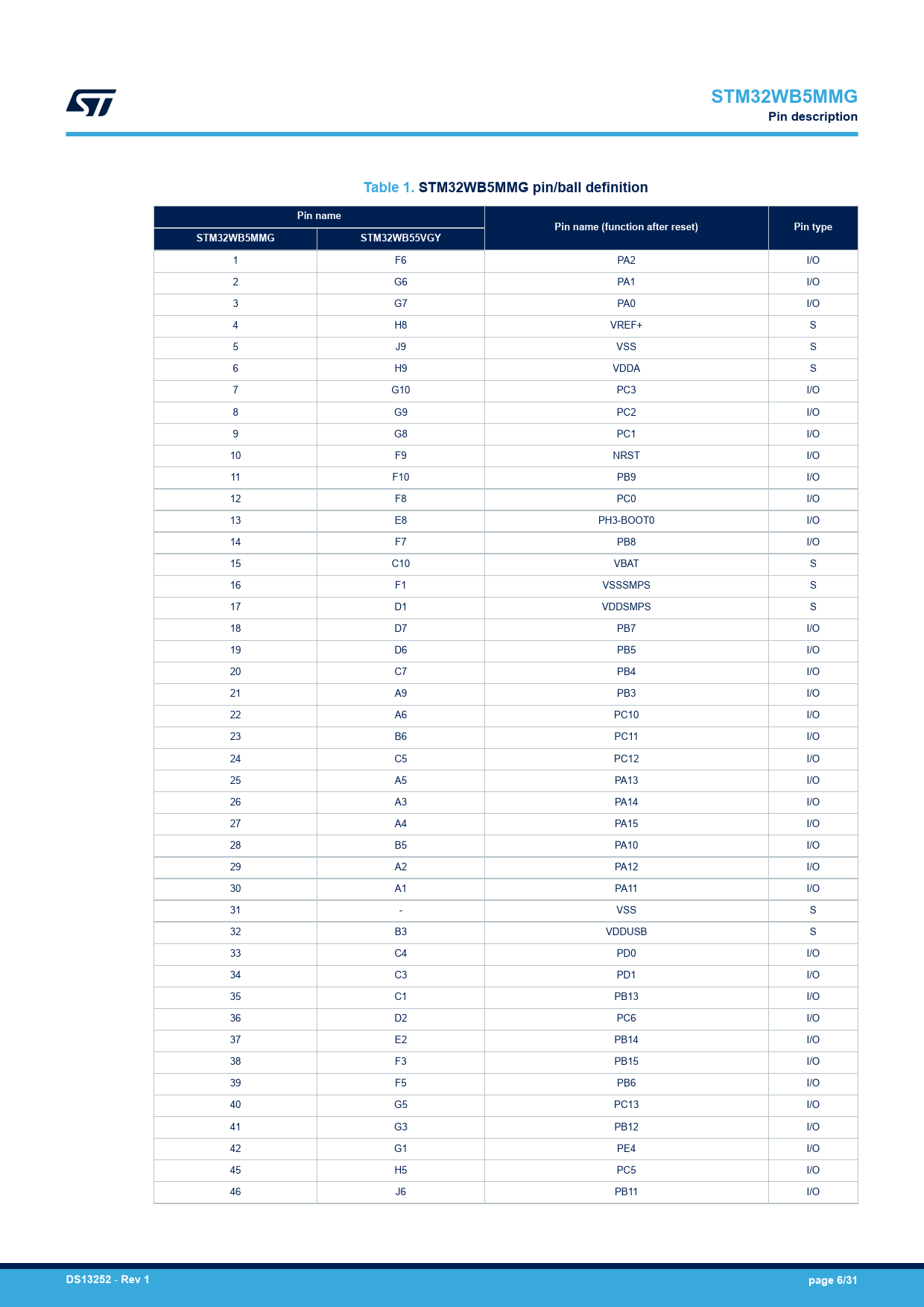

STM32WB5MMG. Pin description. Table 1. STM32WB5MMG pin/ball definition. Pin name. Pin name (function after reset). Pin type
Model Line for this Datasheet
Text Version of Document
STM32WB5MMG Pin description Table 1. STM32WB5MMG pin/ball definition Pin name Pin name (function after reset) Pin type STM32WB5MMG STM32WB55VGY
1 F6 PA2 I/O 2 G6 PA1 I/O 3 G7 PA0 I/O 4 H8 VREF+ S 5 J9 VSS S 6 H9 VDDA S 7 G10 PC3 I/O 8 G9 PC2 I/O 9 G8 PC1 I/O 10 F9 NRST I/O 11 F10 PB9 I/O 12 F8 PC0 I/O 13 E8 PH3-BOOT0 I/O 14 F7 PB8 I/O 15 C10 VBAT S 16 F1 VSSSMPS S 17 D1 VDDSMPS S 18 D7 PB7 I/O 19 D6 PB5 I/O 20 C7 PB4 I/O 21 A9 PB3 I/O 22 A6 PC10 I/O 23 B6 PC11 I/O 24 C5 PC12 I/O 25 A5 PA13 I/O 26 A3 PA14 I/O 27 A4 PA15 I/O 28 B5 PA10 I/O 29 A2 PA12 I/O 30 A1 PA11 I/O 31 - VSS S 32 B3 VDDUSB S 33 C4 PD0 I/O 34 C3 PD1 I/O 35 C1 PB13 I/O 36 D2 PC6 I/O 37 E2 PB14 I/O 38 F3 PB15 I/O 39 F5 PB6 I/O 40 G5 PC13 I/O 41 G3 PB12 I/O 42 G1 PE4 I/O 45 H5 PC5 I/O 46 J6 PB11 I/O
