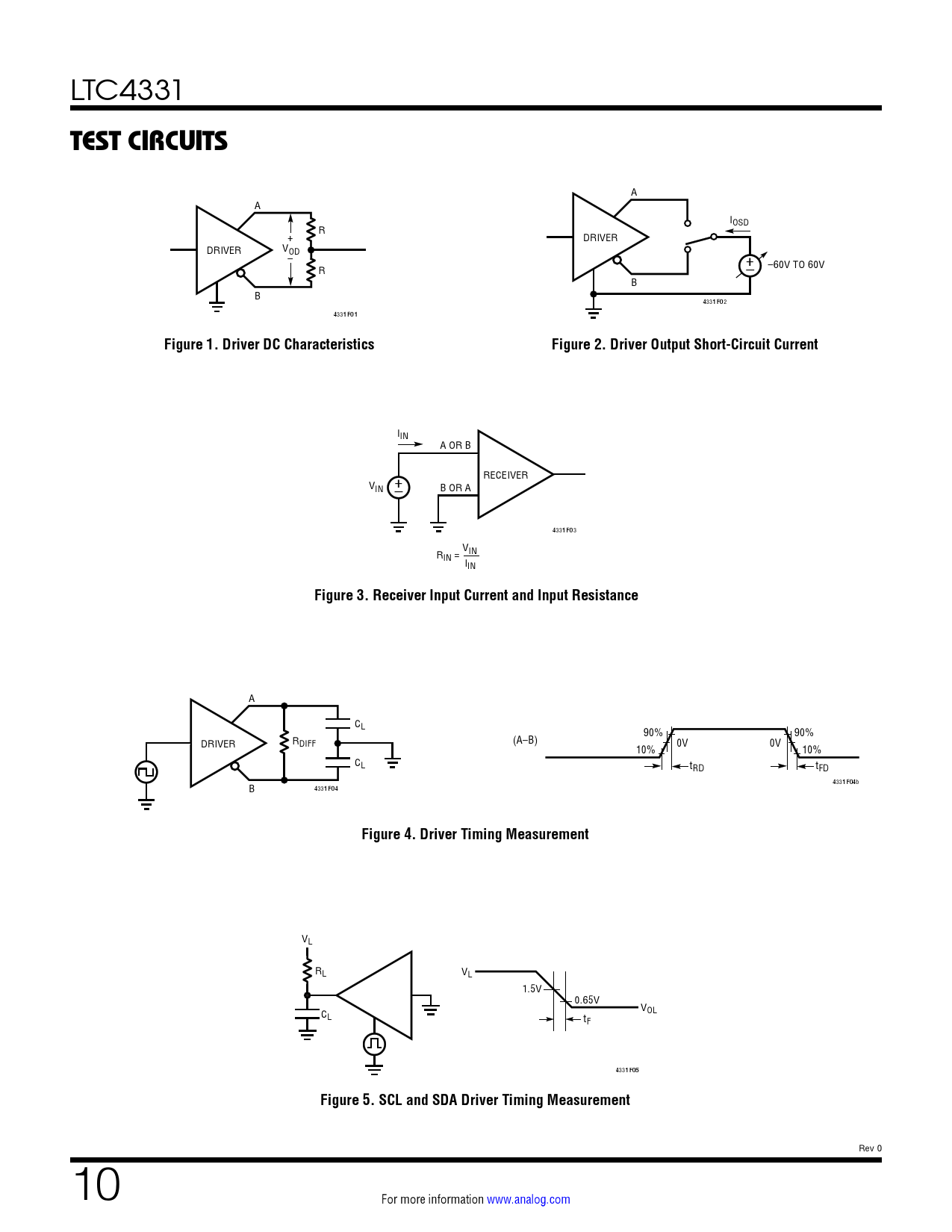

LTC4331 TEST CIRCUITS A A IOSD R + DRIVER DRIVER VOD – + R –60V TO 60V – B B 4331 FO2 4331 FO1 Figure 1. Driver DC CharacteristicsFigure 2. Driver Output Short-Circuit Current IIN A OR B RECEIVER V + IN B OR A – 4331 FO3 VIN RIN = IIN Figure 3. Receiver Input Current and Input Resistance A CL 90% 90% DRIVER RDIFF (A–B) 10% 0V 0V 10% CL tRD tFD B 4331 F04b 4331 FO4 Figure 4. Driver Timing Measurement VL RL VL 1.5V 0.65V V C OL L tF 4331 F05 Figure 5. SCL and SDA Driver Timing Measurement Rev 0 10 For more information www.analog.com Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Switching Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuits Timing Diagrams Applications Information Typical Applications Package Description Typical Application Related Parts
