Datasheet LTC7817 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 40V, Low IQ, 3MHz, Triple Output Buck/Buck/Boost Synchronous Controller |
| Pages / Page | 44 / 4 — ELECTRICAL CHARACTERISTICS. The. indicates specifications which apply … |
| File Format / Size | PDF / 3.0 Mb |
| Document Language | English |
ELECTRICAL CHARACTERISTICS. The. indicates specifications which apply over the specified operating
Model Line for this Datasheet
Text Version of Document
LTC7817
ELECTRICAL CHARACTERISTICS The
l

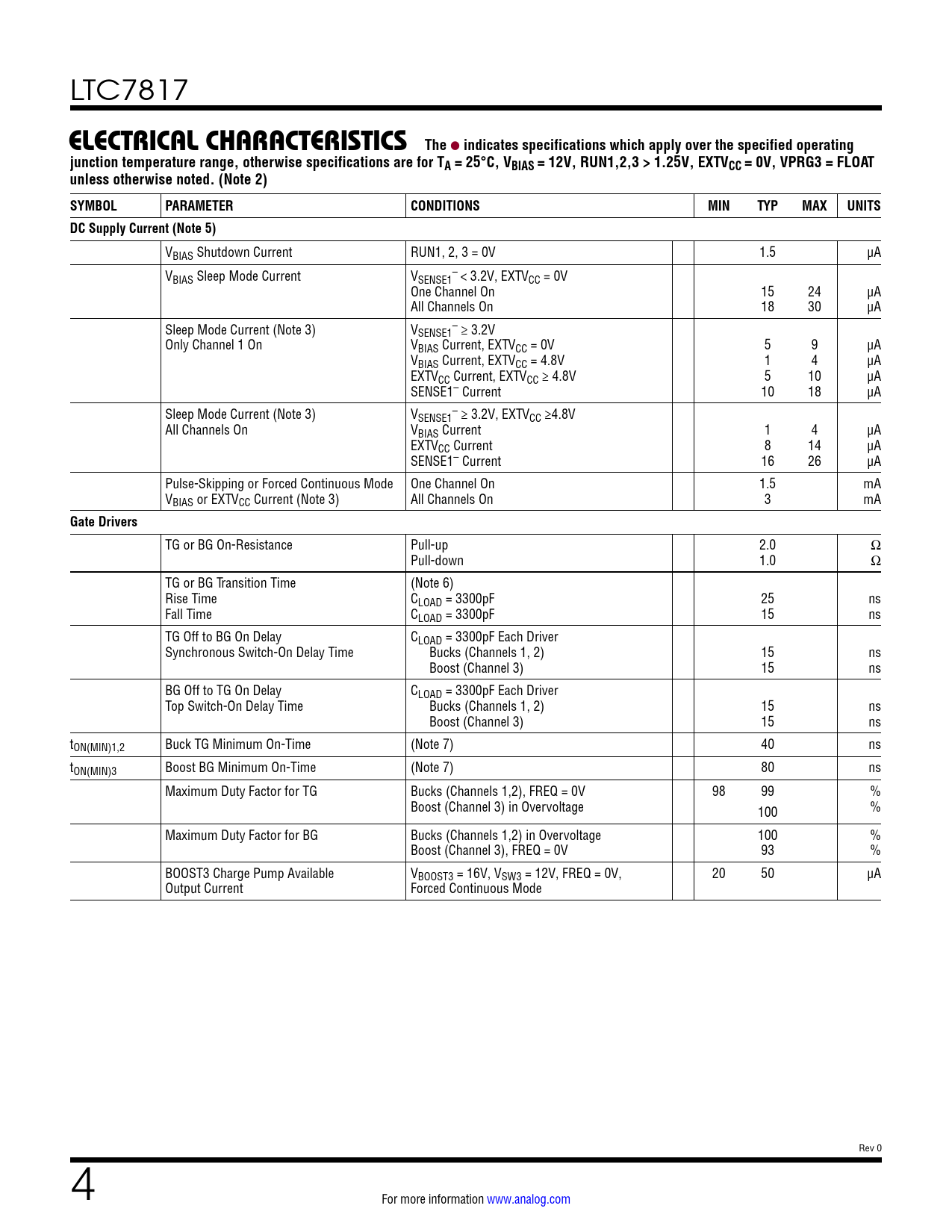

indicates specifications which apply over the specified operating junction temperature range, otherwise specifications are for TA = 25°C, VBIAS = 12V, RUN1,2,3 > 1.25V, EXTVCC = 0V, VPRG3 = FLOAT unless otherwise noted. (Note 2) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS DC Supply Current (Note 5)
VBIAS Shutdown Current RUN1, 2, 3 = 0V 1.5 µA V – BIAS Sleep Mode Current VSENSE1 < 3.2V, EXTVCC = 0V One Channel On 15 24 µA All Channels On 18 30 µA Sleep Mode Current (Note 3) V – SENSE1 ≥ 3.2V Only Channel 1 On VBIAS Current, EXTVCC = 0V 5 9 µA VBIAS Current, EXTVCC = 4.8V 1 4 µA EXTVCC Current, EXTVCC ≥ 4.8V 5 10 µA SENSE1– Current 10 18 µA Sleep Mode Current (Note 3) V – SENSE1 ≥ 3.2V, EXTVCC ≥4.8V All Channels On VBIAS Current 1 4 µA EXTVCC Current 8 14 µA SENSE1– Current 16 26 µA Pulse-Skipping or Forced Continuous Mode One Channel On 1.5 mA VBIAS or EXTVCC Current (Note 3) All Channels On 3 mA
Gate Drivers
TG or BG On-Resistance Pull-up 2.0 Ω Pull-down 1.0 Ω TG or BG Transition Time (Note 6) Rise Time CLOAD = 3300pF 25 ns Fall Time CLOAD = 3300pF 15 ns TG Off to BG On Delay CLOAD = 3300pF Each Driver Synchronous Switch-On Delay Time Bucks (Channels 1, 2) 15 ns Boost (Channel 3) 15 ns BG Off to TG On Delay CLOAD = 3300pF Each Driver Top Switch-On Delay Time Bucks (Channels 1, 2) 15 ns Boost (Channel 3) 15 ns tON(MIN)1,2 Buck TG Minimum On-Time (Note 7) 40 ns tON(MIN)3 Boost BG Minimum On-Time (Note 7) 80 ns Maximum Duty Factor for TG Bucks (Channels 1,2), FREQ = 0V 98 99 % Boost (Channel 3) in Overvoltage 100 % Maximum Duty Factor for BG Bucks (Channels 1,2) in Overvoltage 100 % Boost (Channel 3), FREQ = 0V 93 % BOOST3 Charge Pump Available VBOOST3 = 16V, VSW3 = 12V, FREQ = 0V, 20 50 µA Output Current Forced Continuous Mode Rev 0 4 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Functional Diagram Operation Applications Information Typical Applications Typical Application Related Parts
