TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Soft-Start Tracking. Frequency Foldback
Model Line for this Datasheet
- LT8606BEDC#TRMPBF LT8606BEDC#TRPBF LT8606BHDC#TRMPBF LT8606BHDC#TRPBF LT8606BIDC#TRMPBF LT8606BIDC#TRPBF LT8606EDC#TRMPBF LT8606EDC#TRPBF LT8606EDC#WTRMPBF LT8606EMSE#PBF LT8606EMSE#TRPBF LT8606EMSE#WPBF LT8606EMSE#WTRPBF LT8606HDC#TRMPBF LT8606HDC#TRPBF LT8606HDC#WTRMPBF LT8606HDC#WTRPBF LT8606HMSE#PBF LT8606HMSE#TRPBF LT8606HMSE#WPBF LT8606HMSE#WTRPBF LT8606IDC#TRMPBF LT8606IDC#TRPBF LT8606IDC#WTRMPBF LT8606IDC#WTRPBF LT8606IMSE#PBF LT8606IMSE#TRPBF LT8606IMSE#WPBF LT8606IMSE#WTRPBF LT8606JDC#WTRMPBF LT8606JDC#WTRPBF LT8606JMSE#WPBF LT8606JMSE#WTRPBF
Text Version of Document
LT8606/LT8606B

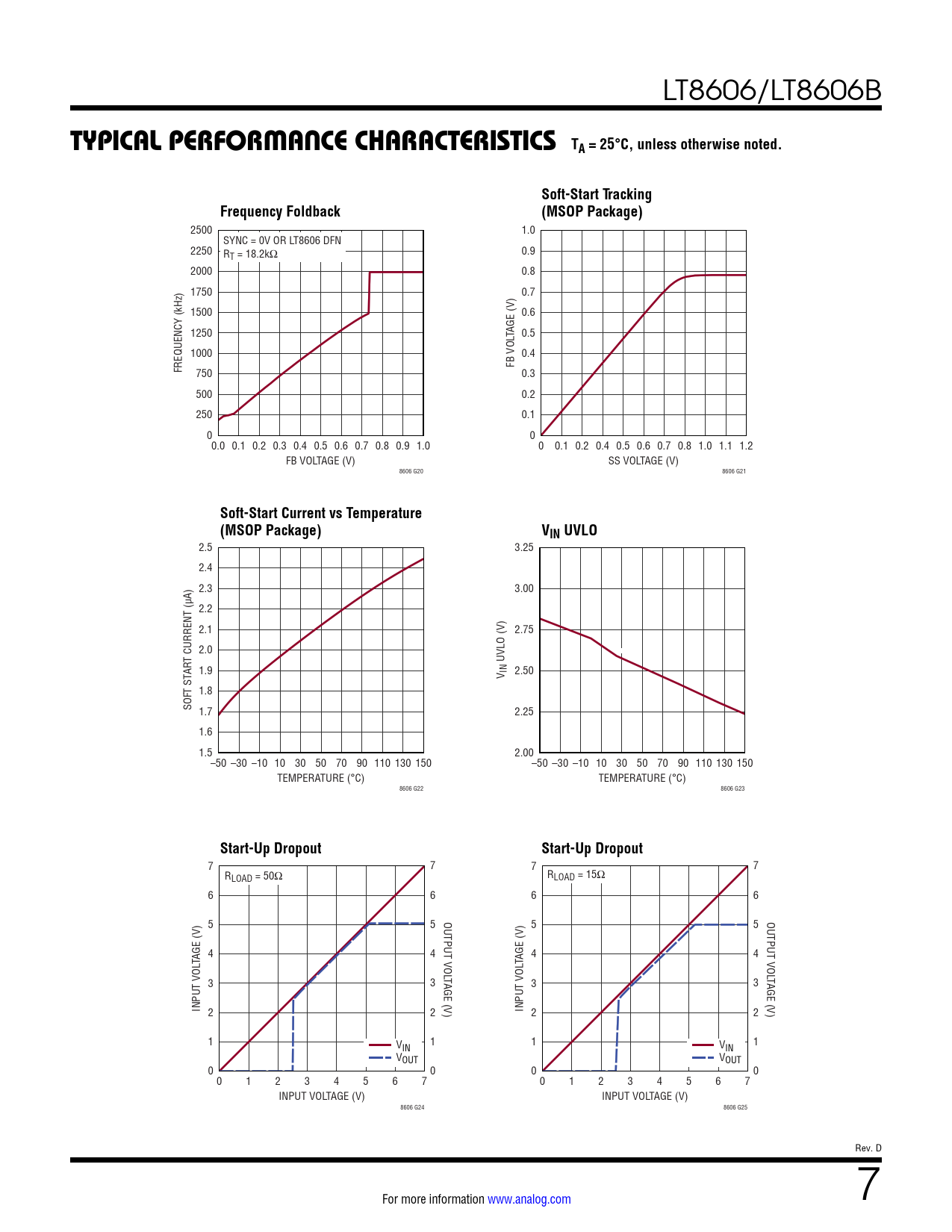

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Soft-Start Tracking Frequency Foldback (MSOP Package)
