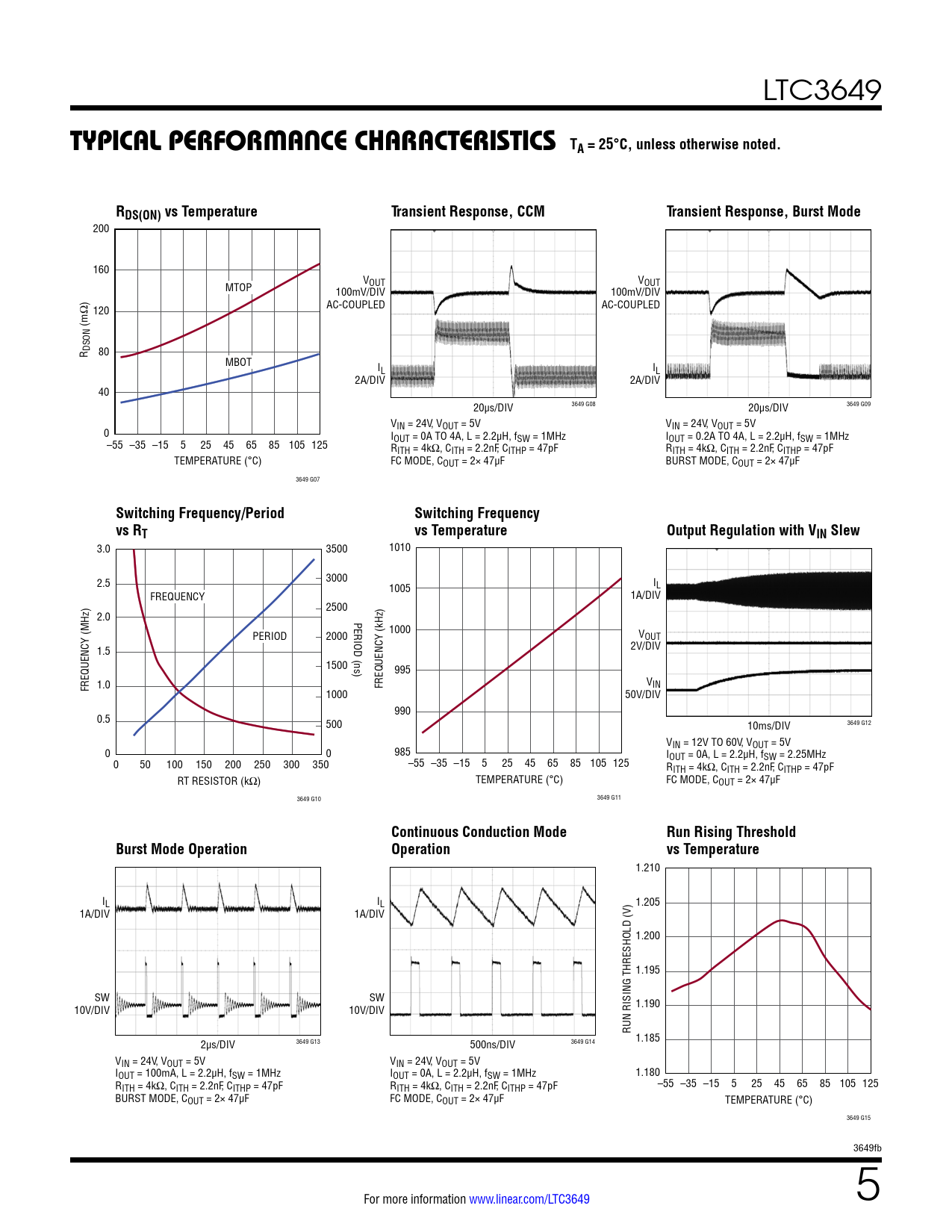

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. RDS(ON) vs Temperature. Transient Response, CCM
