| Manufacturer | Analog Devices |
| Description | 42V Quad Monolithic Synchronous Step-Down Regulator |
| Pages / Page | 30 / 3 — ORDER INFORMATION. TAPE AND REEL (QFN)/. MSL. LEAD FREE FINISH. TRAY … |
| Revision | C |
| File Format / Size | PDF / 2.7 Mb |
| Document Language | English |
ORDER INFORMATION. TAPE AND REEL (QFN)/. MSL. LEAD FREE FINISH. TRAY (LXE). PART MARKING*. PACKAGE DESCRIPTION
Model Line for this Datasheet
Text Version of Document
LT8602

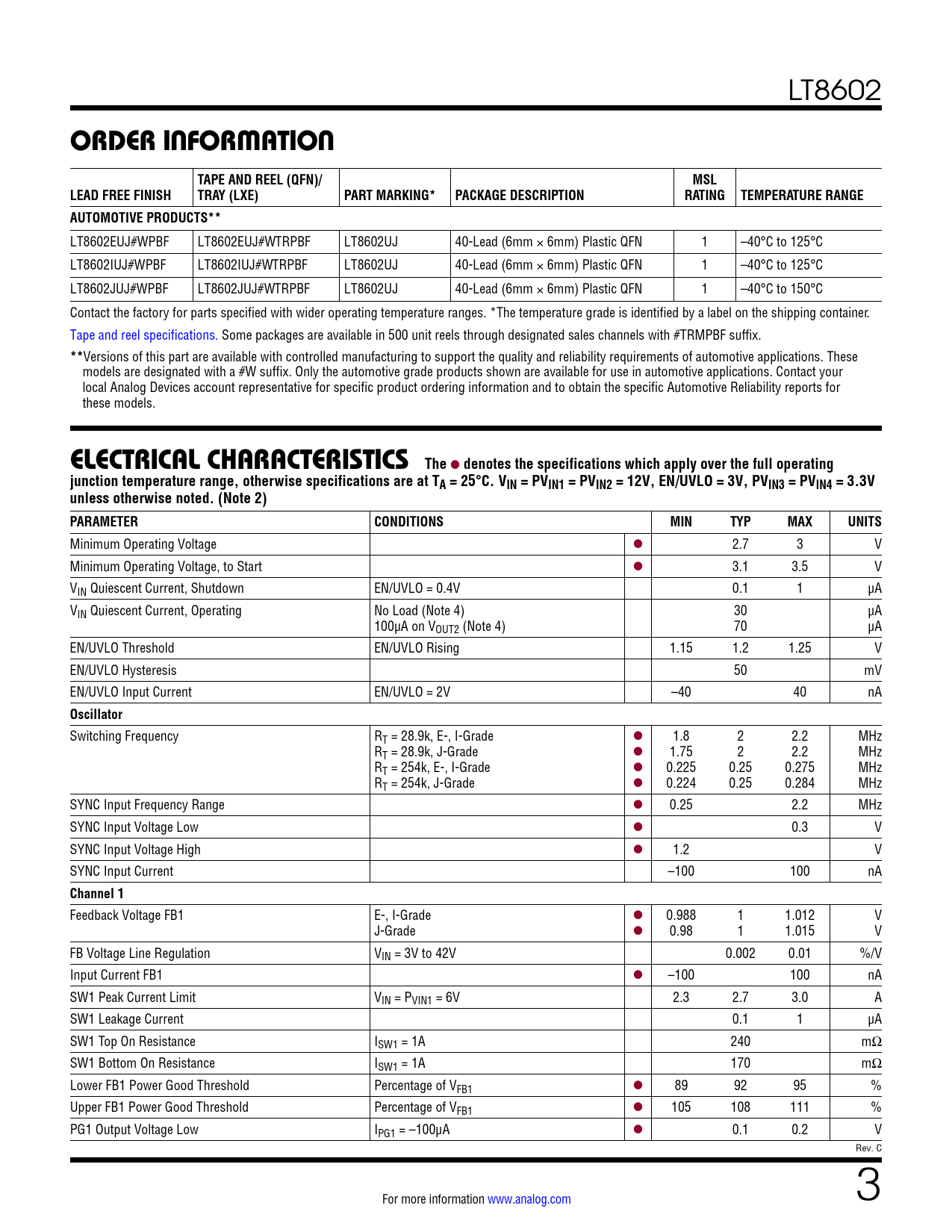

ORDER INFORMATION TAPE AND REEL (QFN)/ MSL LEAD FREE FINISH TRAY (LXE) PART MARKING* PACKAGE DESCRIPTION RATING TEMPERATURE RANGE AUTOMOTIVE PRODUCTS**
LT8602EUJ#WPBF LT8602EUJ#WTRPBF LT8602UJ 40-Lead (6mm × 6mm) Plastic QFN 1 –40°C to 125°C LT8602IUJ#WPBF LT8602IUJ#WTRPBF LT8602UJ 40-Lead (6mm × 6mm) Plastic QFN 1 –40°C to 125°C LT8602JUJ#WPBF LT8602JUJ#WTRPBF LT8602UJ 40-Lead (6mm × 6mm) Plastic QFN 1 –40°C to 150°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
**
Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models.
