Datasheet LT8613 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | 42V, 6A Synchronous Step-Down Regulator with Current Sense and 3µA Quiescent Current |
| Pages / Page | 26 / 8 — TYPICAL PERFORMANCE CHARACTERISTICS. ICTRL Voltage. VISP-VISN Sense … |
| Revision | A |
| File Format / Size | PDF / 2.0 Mb |
| Document Language | English |

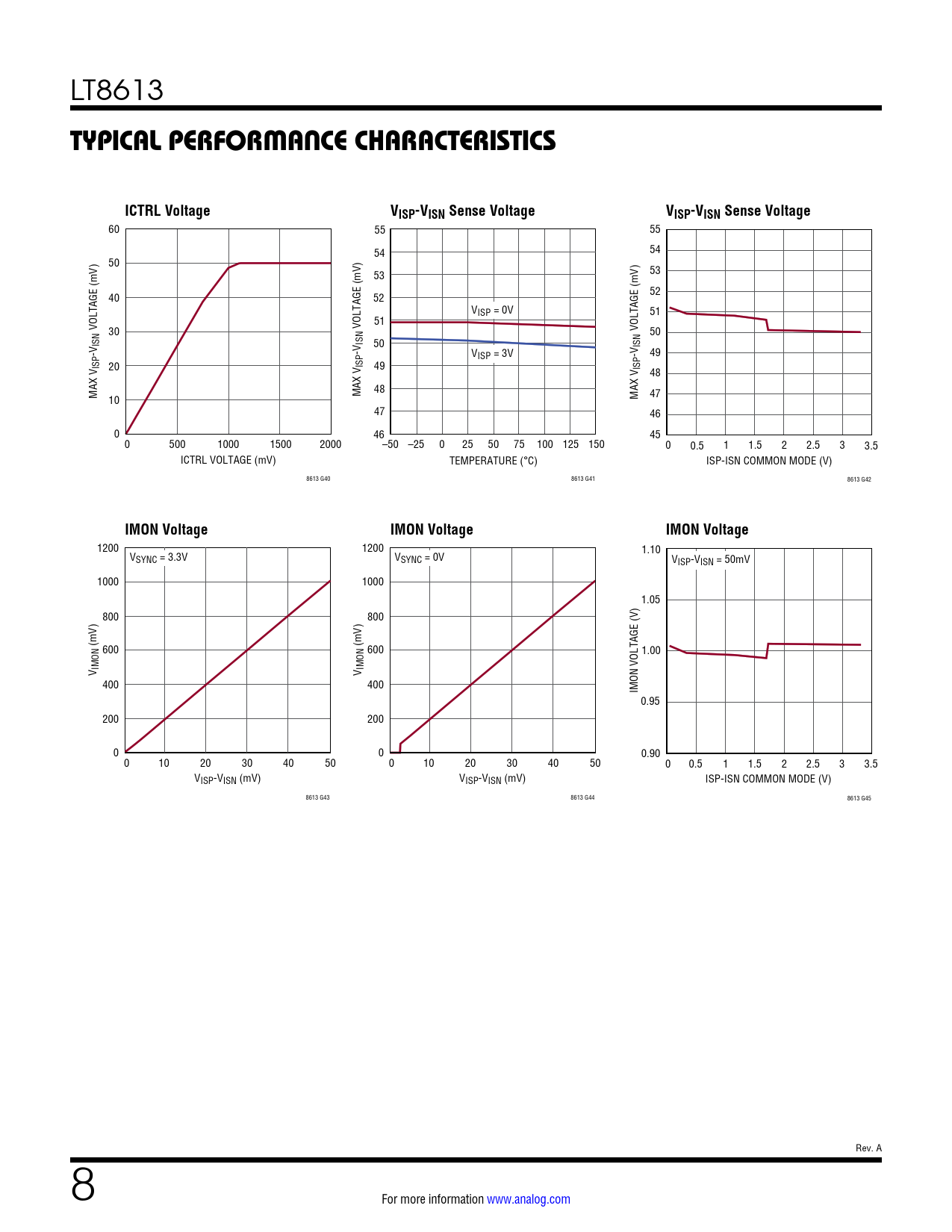

TYPICAL PERFORMANCE CHARACTERISTICS. ICTRL Voltage. VISP-VISN Sense Voltage. IMON Voltage
Model Line for this Datasheet
Text Version of Document
LT8613
TYPICAL PERFORMANCE CHARACTERISTICS ICTRL Voltage VISP-VISN Sense Voltage VISP-VISN Sense Voltage
60 55 55 54 54 50 53 53 52 40 52 VISP = 0V 51 VOLTAGE (mV) 30 VOLTAGE (mV) 51 VOLTAGE (mV) 50 ISN ISN 50 ISN -V -V VISP = 3V -V 49 ISP 20 ISP 49 ISP 48 MAX V MAX V 48 10 MAX V 47 47 46 0 46 45 0 500 1000 1500 2000 –50 –25 0 25 50 75 100 125 150 0 0.5 1 1.5 2 2.5 3 3.5 ICTRL VOLTAGE (mV) TEMPERATURE (°C) ISP-ISN COMMON MODE (V) 8613 G40 8613 G41 8613 G42
IMON Voltage IMON Voltage IMON Voltage
1200 1200 1.10 VSYNC = 3.3V VSYNC = 0V VISP-VISN = 50mV 1000 1000 1.05 800 800 (mV) 600 (mV) 600 1.00 V IMON V IMON 400 400 IMON VOLTAGE (V) 0.95 200 200 0 0 0.90 0 10 20 30 40 50 0 10 20 30 40 50 0 0.5 1 1.5 2 2.5 3 3.5 VISP-VISN (mV) VISP-VISN (mV) ISP-ISN COMMON MODE (V) 8613 G43 8613 G44 8613 G45 Rev. A 8 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Electrical Characteristics Pin Configuration Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Revision History Typical Application Related Parts
