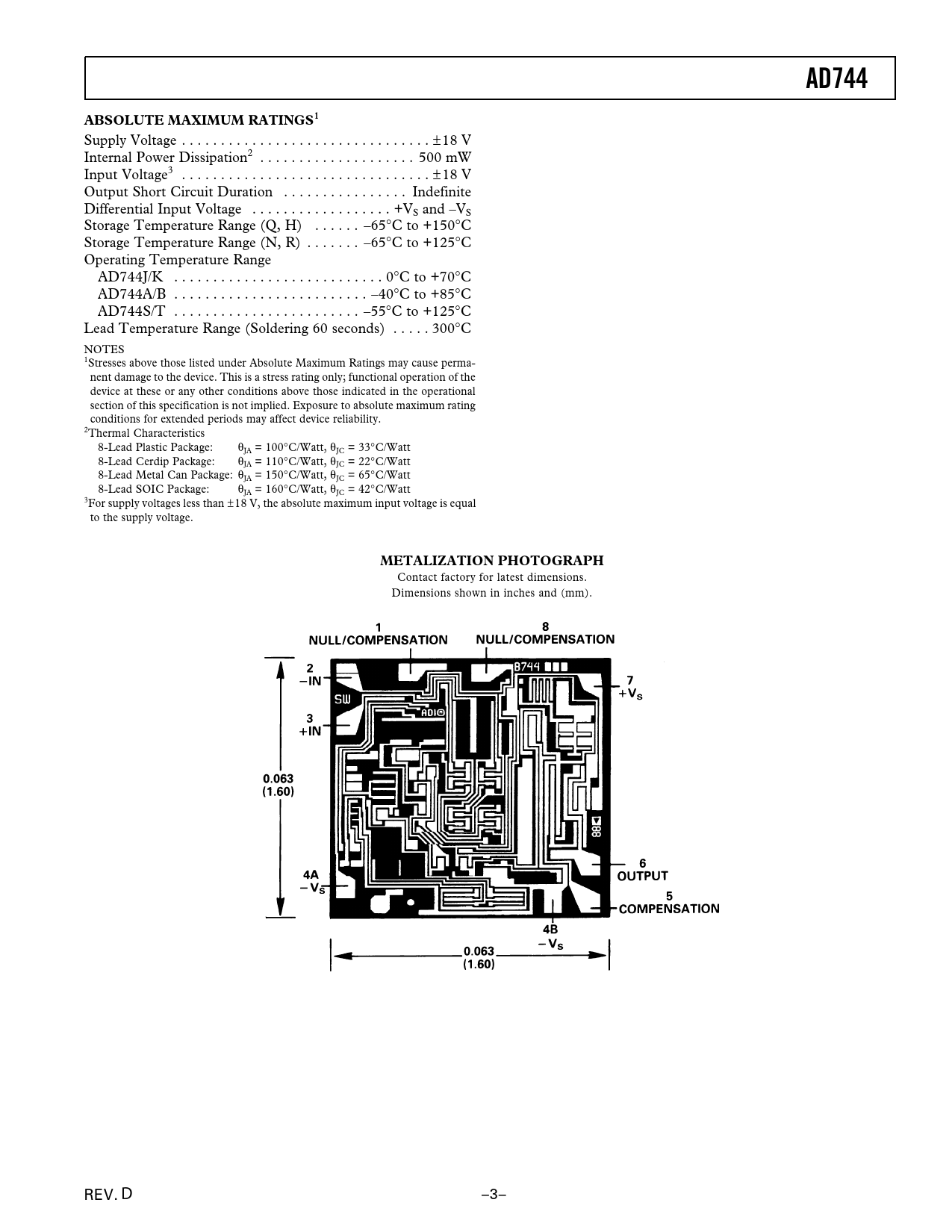

AD744. ABSOLUTE MAXIMUM RATINGS1. METALIZATION PHOTOGRAPH
Model Line for this Datasheet
Text Version of Document
AD744 ABSOLUTE MAXIMUM RATINGS1
Supply Voltage . ± 18 V Internal Power Dissipation2 . 500 mW Input Voltage3 . ± 18 V Output Short Circuit Duration . Indefinite Differential Input Voltage . +VS and –VS Storage Temperature Range (Q, H) . –65°C to +150°C Storage Temperature Range (N, R) . –65°C to +125°C Operating Temperature Range AD744J/K . 0°C to +70°C AD744A/B . –40°C to +85°C AD744S/T . –55°C to +125°C Lead Temperature Range (Soldering 60 seconds) . 300°C NOTES 1Stresses above those listed under Absolute Maximum Ratings may cause perma- nent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. 2Thermal Characteristics 8-Lead Plastic Package: θJA = 100°C/Watt, θJC = 33°C/Watt 8-Lead Cerdip Package: θJA = 110°C/Watt, θJC = 22°C/Watt 8-Lead Metal Can Package: θJA = 150°C/Watt, θJC = 65°C/Watt 8-Lead SOIC Package: θJA = 160°C/Watt, θJC = 42°C/Watt 3For supply voltages less than ±18 V, the absolute maximum input voltage is equal to the supply voltage.
METALIZATION PHOTOGRAPH
Contact factory for latest dimensions. Dimensions shown in inches and (mm). REV. D –3– Document Outline FEATURES ac Performance dc Performance APPLICATIONS CONNECTION DIAGRAMS PRODUCT DESCRIPTION PRODUCT HIGHLIGHTS SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS METALIZATION PHOTOGRAPH TYPICAL CHARACTERISITICS POWER SUPPLY BYPASSING MEASURING AD744 SETTLING TIME EXTERNAL FREQUENCY COMPENSATION Using Decompensation to Extend the Gain Bandwidth Product HIGH-SPEED OP AMP APPLICATIONS TECHNIQUES DAC Buffers (I-to-V Converters) A HIGH-SPEED, 3 OP AMP INSTRUMENTATION AMPLIFIER CIRCUIT Minimizing Settling Time in Real-World Applications OUTLINE DIMENSIONS ORDERING GUIDE REVISION HISTORY
