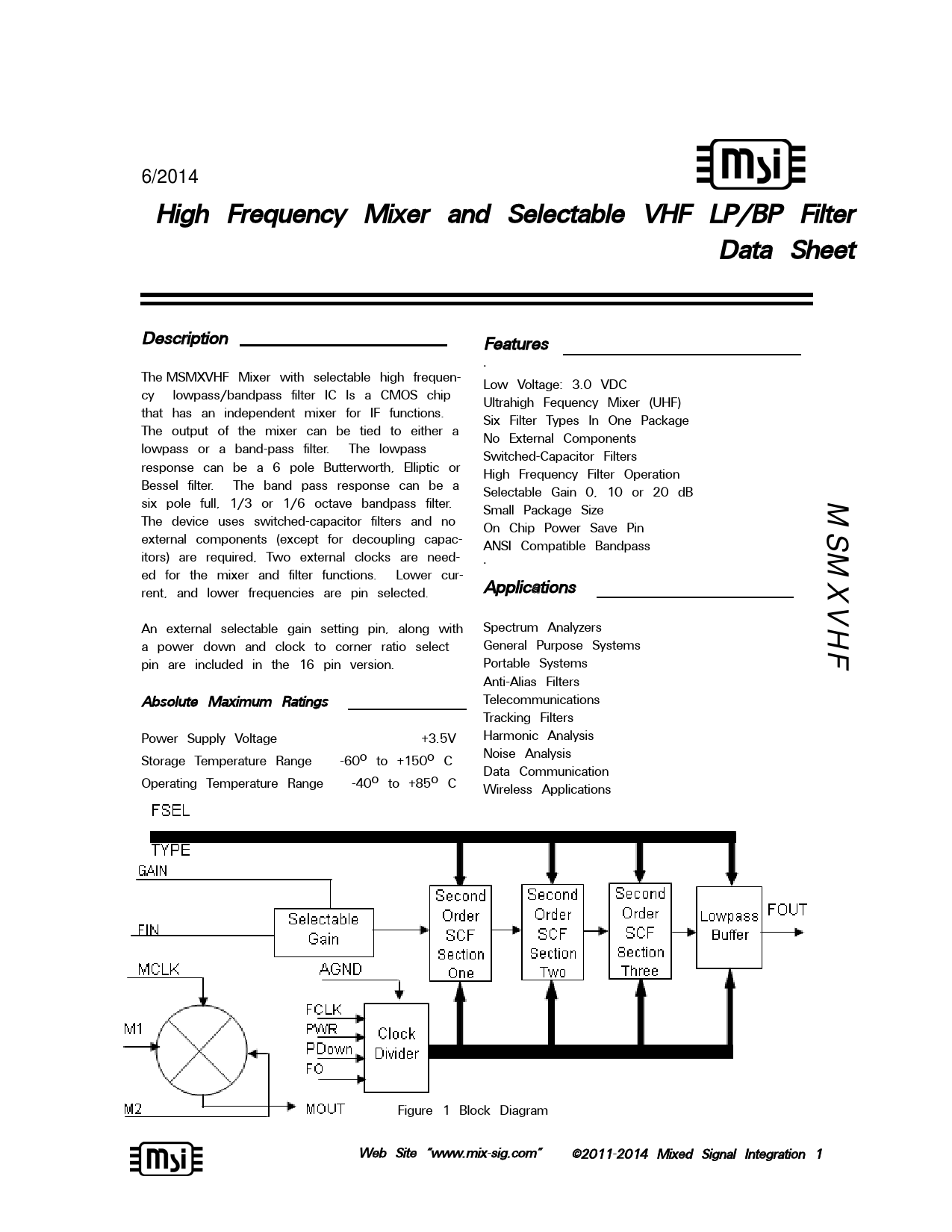

6/2014 High Frequency Mixer and Selectable VHF LP/BP Filter Data Sheet Description Features · The MSMXVHF Mixer with selectable high frequen- Low Voltage: 3.0 VDC cy lowpass/bandpass filter IC Is a CMOS chip Ultrahigh Fequency Mixer (UHF) that has an independent mixer for IF functions. Six Filter Types In One Package The output of the mixer can be tied to either a No External Components lowpass or a band-pass filter. The lowpass Switched-Capacitor Filters response can be a 6 pole Butterworth, Elliptic or High Frequency Filter Operation Bessel filter. The band pass response can be a Selectable Gain 0, 10 or 20 dB
MSMXVHF
six pole full, 1/3 or 1/6 octave bandpass filter. Small Package Size The device uses switched-capacitor filters and no On Chip Power Save Pin external components (except for decoupling capac- ANSI Compatible Bandpass itors) are required, Two external clocks are need- · ed for the mixer and filter functions. Lower cur- rent, and lower frequencies are pin selected. Applications An external selectable gain setting pin, along with Spectrum Analyzers a power down and clock to corner ratio select General Purpose Systems pin are included in the 16 pin version. Portable Systems Anti-Alias Filters Absolute Maximum Ratings Telecommunications Tracking Filters Power Supply Voltage +3.5V Harmonic Analysis Noise Analysis Storage Temperature Range -60o to +150o C Data Communication Operating Temperature Range -40o to +85o C Wireless Applications Figure 1 Block Diagram Web Site “www.mix-ssig.com” ©2011-2 2014 Mixed Signal Integration 1
