Datasheet ADL5321 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 2.3 GHz TO 4.0 GHz ¼ Watt RF Driver Amplifier |
| Pages / Page | 16 / 3 — Data Sheet. ADL5321. SPECIFICATIONS. Table 1. 3.3 V. 5 V. Parameter. … |
| Revision | D |
| File Format / Size | PDF / 464 Kb |
| Document Language | English |

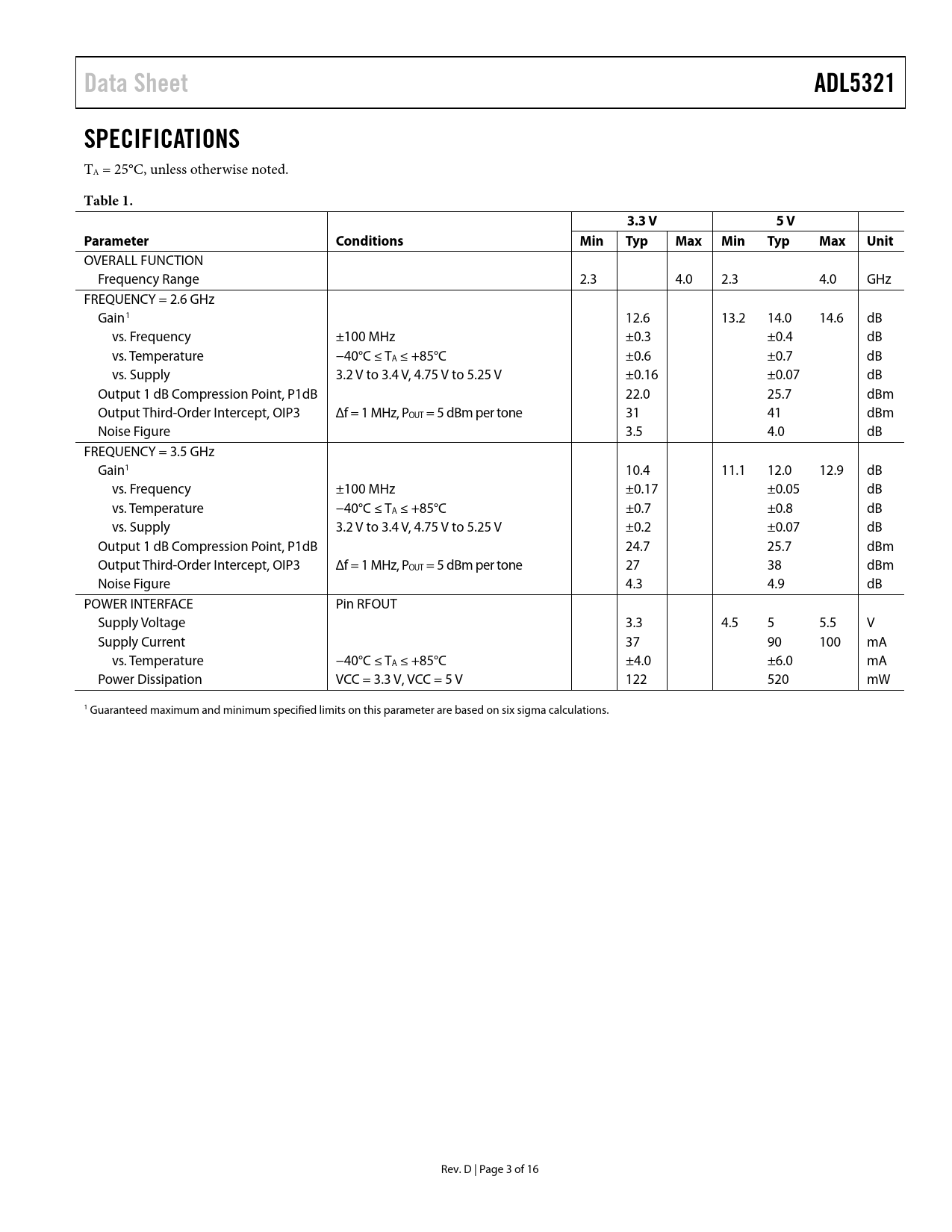

Data Sheet. ADL5321. SPECIFICATIONS. Table 1. 3.3 V. 5 V. Parameter. Conditions. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
link to page 3 link to page 3
Data Sheet ADL5321 SPECIFICATIONS
TA = 25°C, unless otherwise noted.
Table 1. 3.3 V 5 V Parameter Conditions Min Typ Max Min Typ Max Unit
OVERALL FUNCTION Frequency Range 2.3 4.0 2.3 4.0 GHz FREQUENCY = 2.6 GHz Gain1 12.6 13.2 14.0 14.6 dB vs. Frequency ±100 MHz ±0.3 ±0.4 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.6 ±0.7 dB vs. Supply 3.2 V to 3.4 V, 4.75 V to 5.25 V ±0.16 ±0.07 dB Output 1 dB Compression Point, P1dB 22.0 25.7 dBm Output Third-Order Intercept, OIP3 Δf = 1 MHz, POUT = 5 dBm per tone 31 41 dBm Noise Figure 3.5 4.0 dB FREQUENCY = 3.5 GHz Gain1 10.4 11.1 12.0 12.9 dB vs. Frequency ±100 MHz ±0.17 ±0.05 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.7 ±0.8 dB vs. Supply 3.2 V to 3.4 V, 4.75 V to 5.25 V ±0.2 ±0.07 dB Output 1 dB Compression Point, P1dB 24.7 25.7 dBm Output Third-Order Intercept, OIP3 Δf = 1 MHz, POUT = 5 dBm per tone 27 38 dBm Noise Figure 4.3 4.9 dB POWER INTERFACE Pin RFOUT Supply Voltage 3.3 4.5 5 5.5 V Supply Current 37 90 100 mA vs. Temperature −40°C ≤ TA ≤ +85°C ±4.0 ±6.0 mA Power Dissipation VCC = 3.3 V, VCC = 5 V 122 520 mW 1 Guaranteed maximum and minimum specified limits on this parameter are based on six sigma calculations. Rev. D | Page 3 of 16 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Typical Scattering Parameters Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics High Temperature and 3.3 V Operation Basic Layout Connections Soldering Information and Recommended PCB Land Pattern Matching Procedure WiMax Operation Evaluation Board Outline Dimensions Ordering Guide
Data Sheet ADL5321 SPECIFICATIONS
TA = 25°C, unless otherwise noted.
Table 1. 3.3 V 5 V Parameter Conditions Min Typ Max Min Typ Max Unit
