Datasheet HMC608LC4 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | GaAs pHEMT MEDIUM POWER AMPLIFIER, 9.5 - 11.5 GHz |
| Pages / Page | 8 / 5 — HMC608LC4. GaAs pHEMT MEDIUM. POWER AMPLIFIER, 9.5 - 11.5 GHz. Absolute … |
| File Format / Size | PDF / 989 Kb |
| Document Language | English |
HMC608LC4. GaAs pHEMT MEDIUM. POWER AMPLIFIER, 9.5 - 11.5 GHz. Absolute Maximum Ratings. Typical Supply Current vs. Vdd
Model Line for this Datasheet
Text Version of Document
HMC608LC4
v04.0617

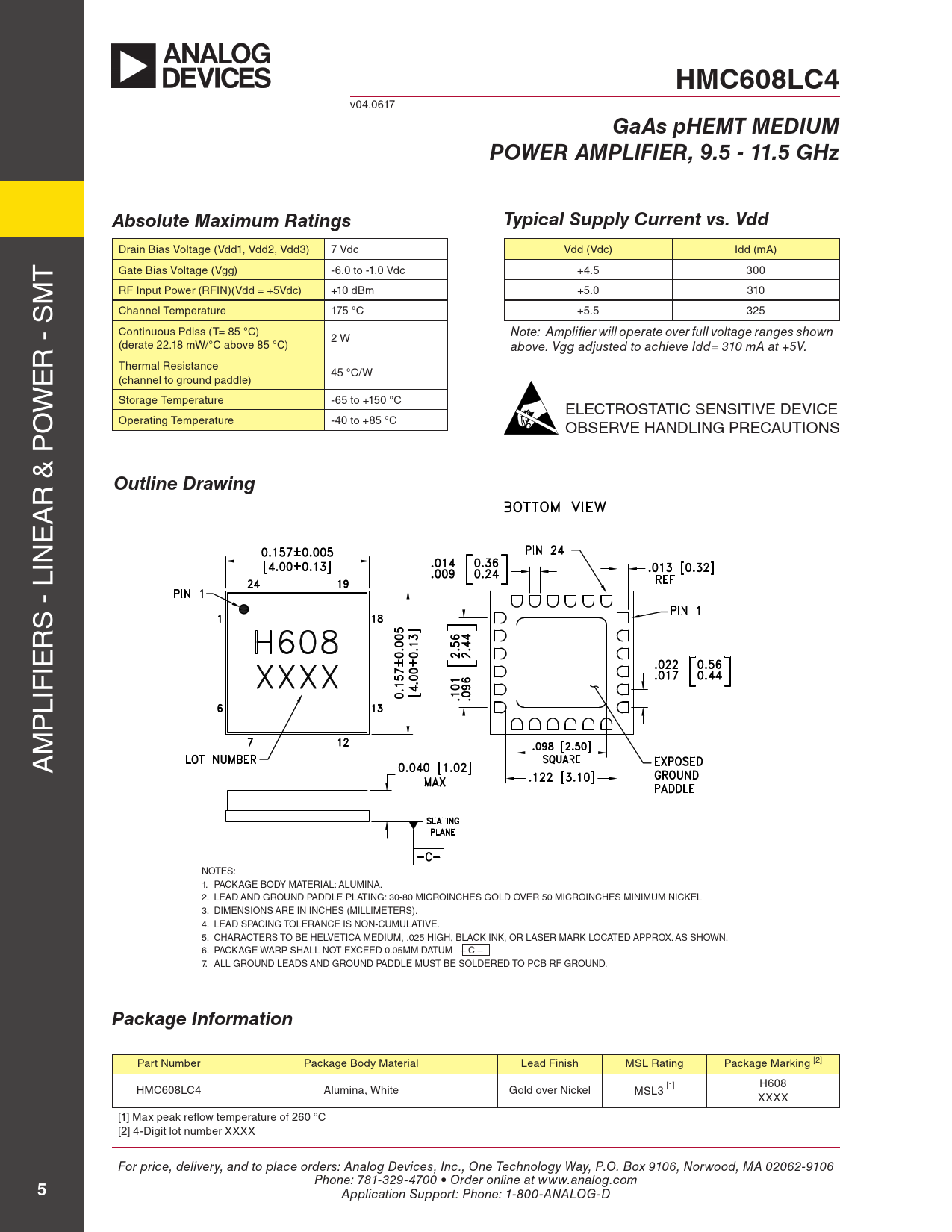

GaAs pHEMT MEDIUM POWER AMPLIFIER, 9.5 - 11.5 GHz Absolute Maximum Ratings Typical Supply Current vs. Vdd
Drain Bias Voltage (Vdd1, Vdd2, Vdd3) 7 Vdc Vdd (Vdc) Idd (mA) T Gate Bias Voltage (Vgg) -6.0 to -1.0 Vdc +4.5 300 M RF Input Power (RFIN)(Vdd = +5Vdc) +10 dBm +5.0 310 Channel Temperature 175 °C +5.5 325 Continuous Pdiss (T= 85 °C) Note: Amplifier will operate over full voltage ranges shown 2 W R - S (derate 22.18 mW/°C above 85 °C) above. Vgg adjusted to achieve Idd= 310 mA at +5V. E Thermal Resistance 45 °C/W (channel to ground paddle) W Storage Temperature -65 to +150 °C O ELECTROSTATIC SENSITIVE DEVICE Operating Temperature -40 to +85 °C OBSERVE HANDLING PRECAUTIONS R & P
Outline Drawing
A E IN S - L R IE LIF P M A NOTES: 1. PACKAGE BODY MATERIAL: ALUMINA. 2. LEAD AND GROUND PADDLE PLATING: 30-80 MICROINCHES GOLD OVER 50 MICROINCHES MINIMUM NICKEL 3. DIMENSIONS ARE IN INCHES (MILLIMETERS). 4. LEAD SPACING TOLERANCE IS NON-CUMULATIVE. 5. CHARACTERS TO BE HELVETICA MEDIUM, .025 HIGH, BLACK INK, OR LASER MARK LOCATED APPROX. AS SHOWN. 6. PACKAGE WARP SHALL NOT EXCEED 0.05MM DATUM – C – 7. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED TO PCB RF GROUND.
Package Information
Part Number Package Body Material Lead Finish MSL Rating Package Marking [2] HMC608LC4 Alumina, White Gold over Nickel MSL3 [1] H608 XXXX [1] Max peak reflow temperature of 260 °C [2] 4-Digit lot number XXXX For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
