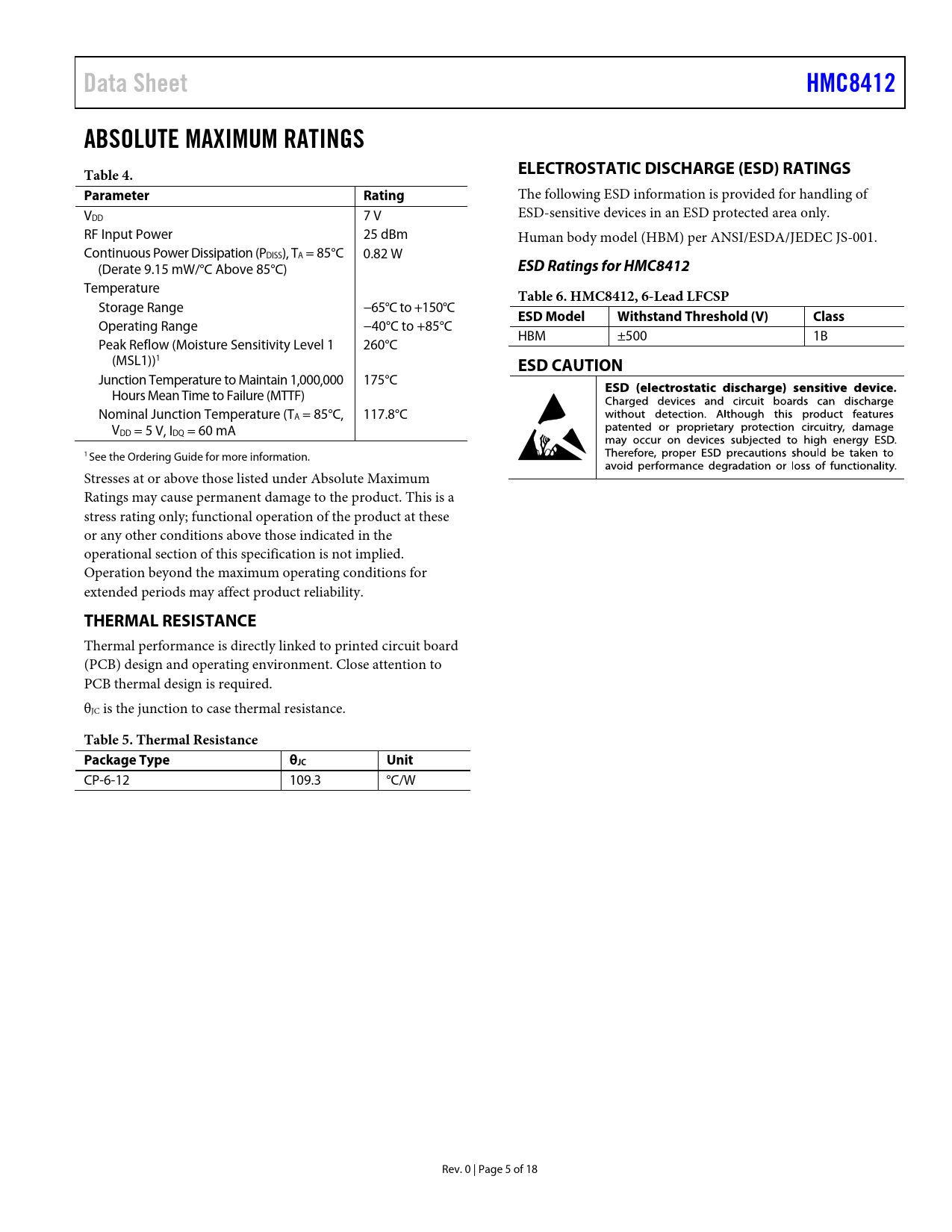

Data Sheet. HMC8412. ABSOLUTE MAXIMUM RATINGS Table 4. ELECTROSTATIC DISCHARGE (ESD) RATINGS. Parameter. Rating
Model Line for this Datasheet
Text Version of Document
link to page 18
Data Sheet HMC8412 ABSOLUTE MAXIMUM RATINGS Table 4. ELECTROSTATIC DISCHARGE (ESD) RATINGS Parameter Rating
The fol owing ESD information is provided for handling of V ESD-sensitive devices in an ESD protected area only. DD 7 V RF Input Power 25 dBm Human body model (HBM) per ANSI/ESDA/JEDEC JS-001. Continuous Power Dissipation (PDISS), TA = 85°C 0.82 W (Derate 9.15 mW/°C Above 85°C)
ESD Ratings for HMC8412
Temperature
Table 6. HMC8412, 6-Lead LFCSP
Storage Range −65°C to +150°C
ESD Model Withstand Threshold (V) Class
Operating Range −40°C to +85°C HBM ±500 1B Peak Reflow (Moisture Sensitivity Level 1 260°C (MSL1))1
ESD CAUTION
Junction Temperature to Maintain 1,000,000 175°C Hours Mean Time to Failure (MTTF) Nominal Junction Temperature (TA = 85°C, 117.8°C VDD = 5 V, IDQ = 60 mA 1 See the Ordering Guide for more information. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability.
THERMAL RESISTANCE
Thermal performance is directly linked to printed circuit board (PCB) design and operating environment. Close attention to PCB thermal design is required. θJC is the junction to case thermal resistance.
Table 5. Thermal Resistance Package Type θJC Unit
CP-6-12 109.3 °C/W Rev. 0 | Page 5 of 18 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications 0.4 GHz to 3 GHz Frequency Range 3 GHz to 9 GHz Frequency Range 9 GHz to 11 GHz Frequency Range Absolute Maximum Ratings Thermal Resistance Electrostatic Discharge (ESD) Ratings ESD Ratings for HMC8412 ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Theory of Operation Applications Information Recommended Bias Sequencing Power-Up Sequence Power-Down Sequence Outline Dimensions Ordering Guide
