Datasheet HMC392ALC4 (Analog Devices) - 6

HMC392ALC4
v01.0117

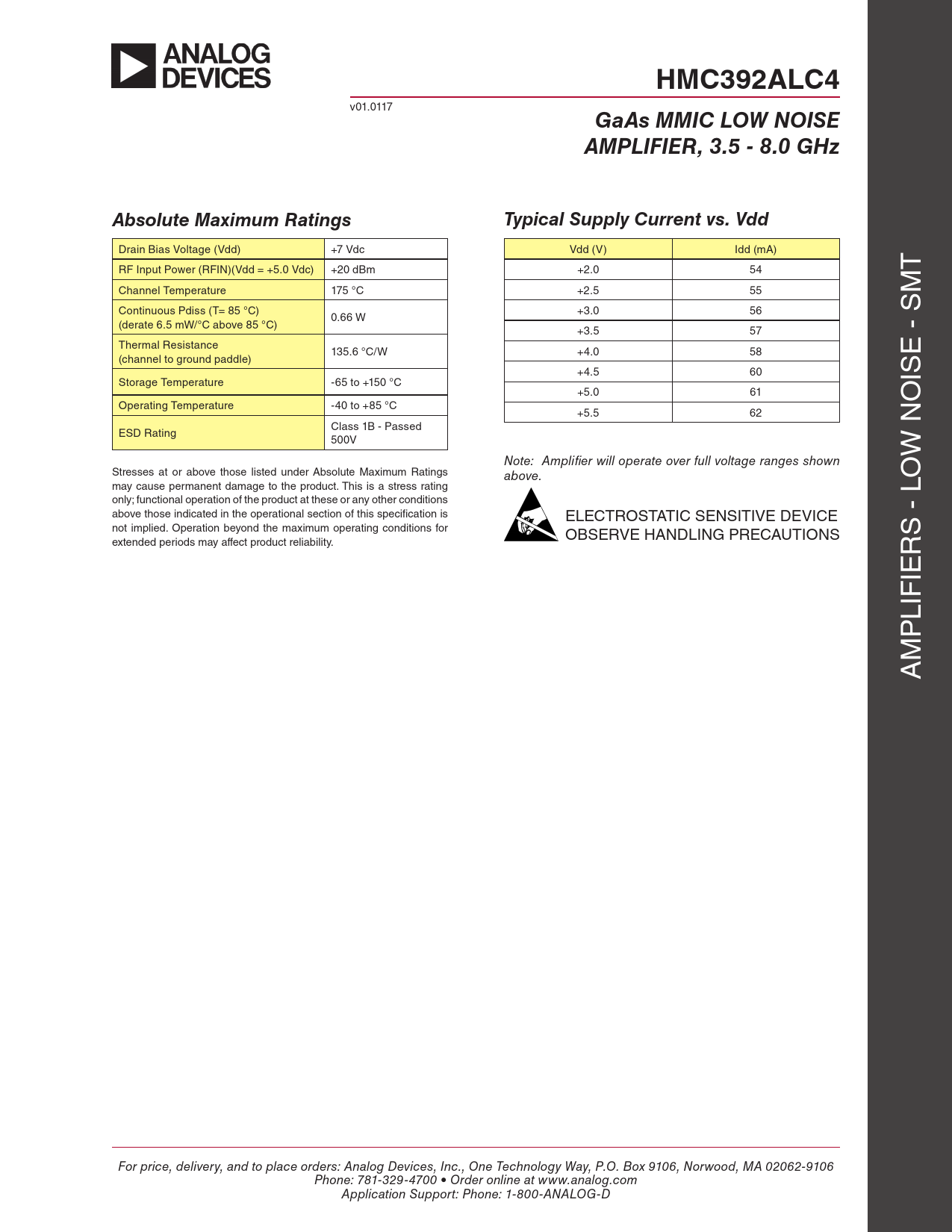

GaAs MMIC LOW NOISE AMPLIFIER, 3.5 - 8.0 GHz Absolute Maximum Ratings Typical Supply Current vs. Vdd
Drain Bias Voltage (Vdd) +7 Vdc Vdd (V) Idd (mA) RF Input Power (RFIN)(Vdd = +5.0 Vdc) +20 dBm +2.0 54 T Channel Temperature 175 °C +2.5 55 M Continuous Pdiss (T= 85 °C) +3.0 56 0.66 W (derate 6.5 mW/°C above 85 °C) +3.5 57 Thermal Resistance 135.6 °C/W +4.0 58 E - S (channel to ground paddle) +4.5 60 Storage Temperature -65 to +150 °C IS +5.0 61 O Operating Temperature -40 to +85 °C +5.5 62 Class 1B - Passed ESD Rating 500V W N Note: Amplifier will operate over full voltage ranges shown Stresses at or above those listed under Absolute Maximum Ratings above. O may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is ELECTROSTATIC SENSITIVE DEVICE not implied. Operation beyond the maximum operating conditions for OBSERVE HANDLING PRECAUTIONS S - L extended periods may affect product reliability. R IE LIF P M A For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
