Datasheet HMC392ALC4 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | GaAs MMIC Low Noise Amplifier, 3.5 - 8.0 GHz |
| Pages / Page | 11 / 8 — HMC392ALC4. GaAs MMIC LOW NOISE. AMPLIFIER, 3.5 - 8.0 GHz. Pin … |
| File Format / Size | PDF / 916 Kb |
| Document Language | English |
HMC392ALC4. GaAs MMIC LOW NOISE. AMPLIFIER, 3.5 - 8.0 GHz. Pin Descriptions
Model Line for this Datasheet
Text Version of Document
HMC392ALC4
v01.0117

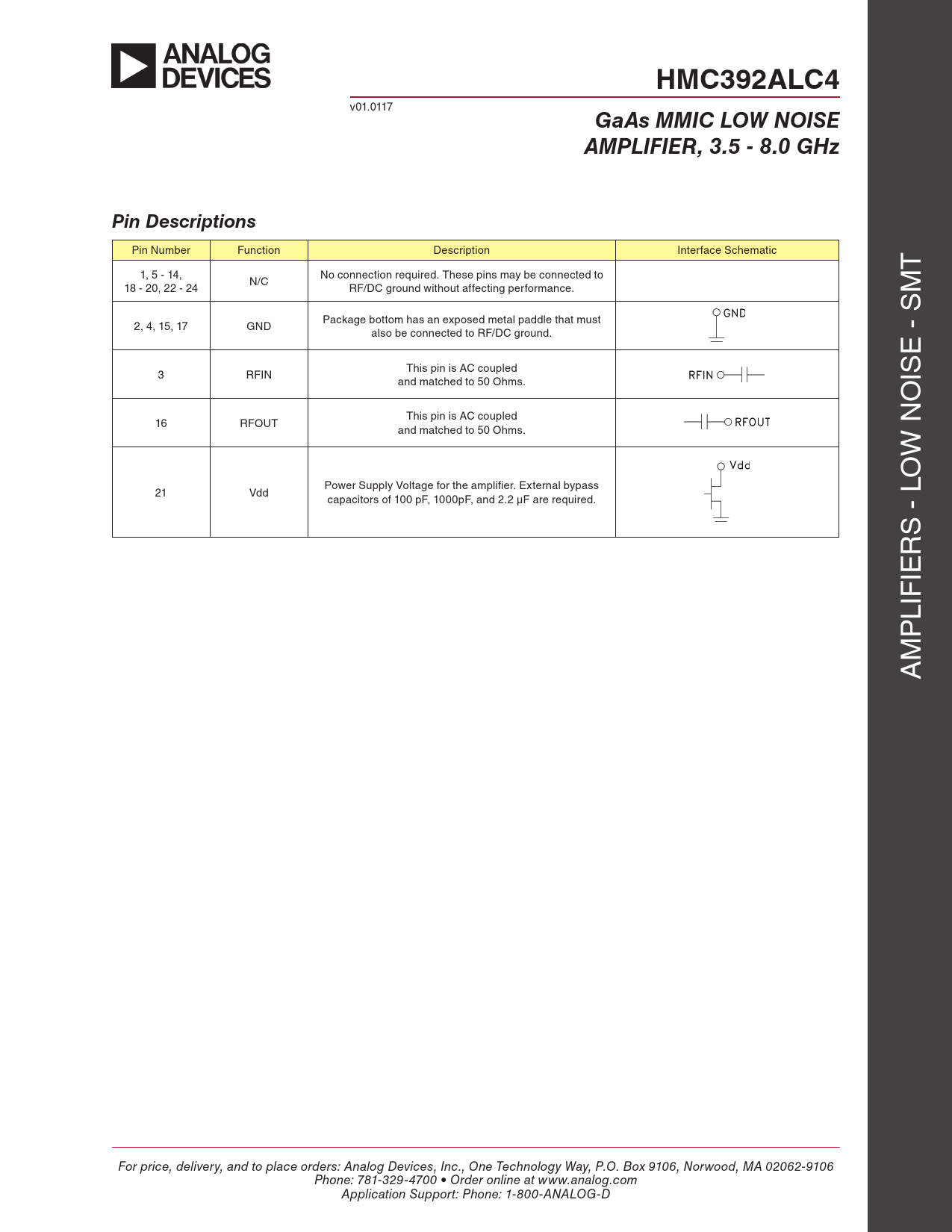

GaAs MMIC LOW NOISE AMPLIFIER, 3.5 - 8.0 GHz Pin Descriptions
Pin Number Function Description Interface Schematic T 1, 5 - 14, No connection required. These pins may be connected to N/C 18 - 20, 22 - 24 RF/DC ground without affecting performance. M Package bottom has an exposed metal paddle that must 2, 4, 15, 17 GND also be connected to RF/DC ground. E - S This pin is AC coupled 3 RFIN and matched to 50 Ohms. IS O This pin is AC coupled 16 RFOUT and matched to 50 Ohms. W N O Power Supply Voltage for the amplifier. External bypass 21 Vdd capacitors of 100 pF, 1000pF, and 2.2 µF are required. S - L R IE LIF P M A For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
