Datasheet HMC902 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 5 GHz to 11 GHz GaAs, pHEMT, MMIC, Low Noise Amplifier |
| Pages / Page | 13 / 3 — Data Sheet. HMC902. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. Table 1. … |
| Revision | D |
| File Format / Size | PDF / 274 Kb |
| Document Language | English |

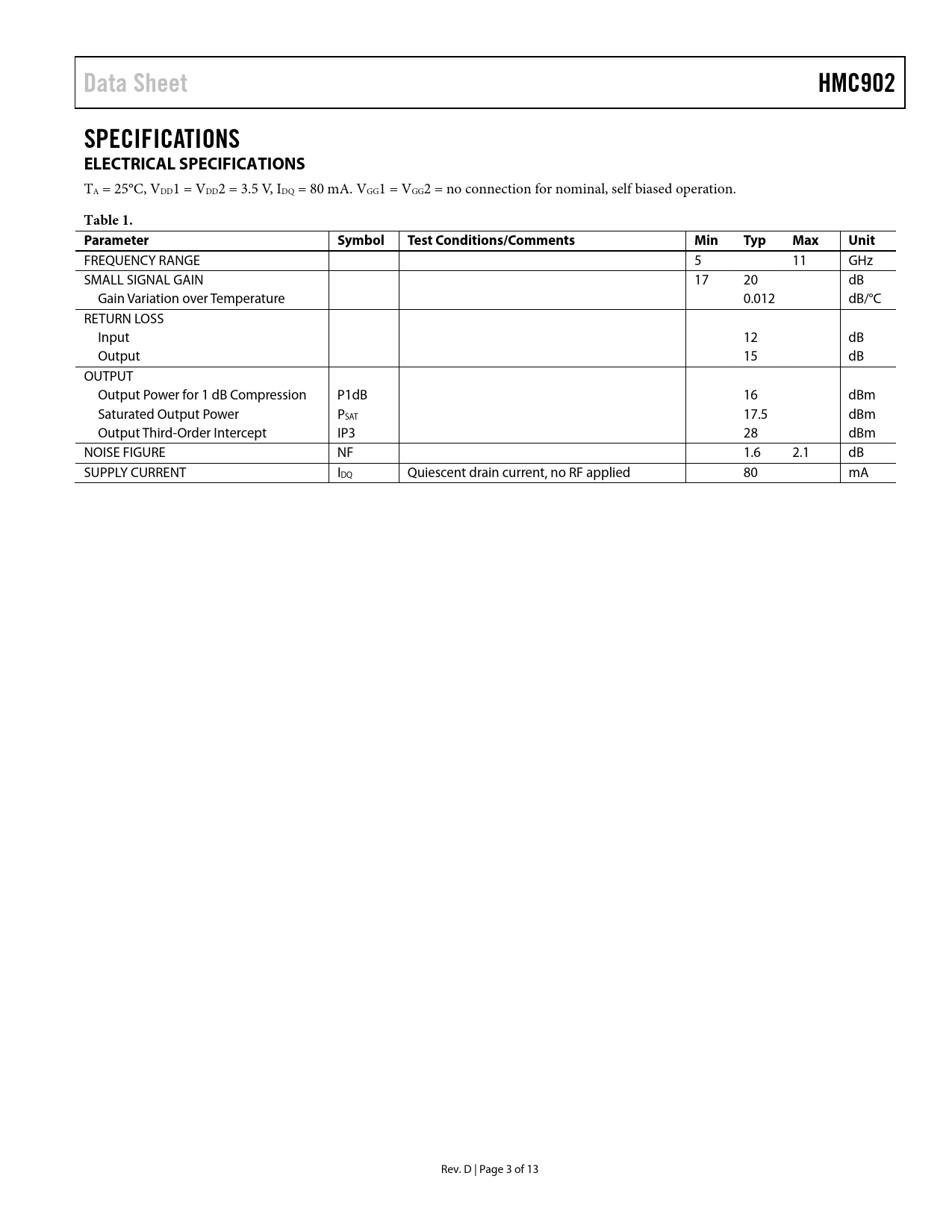

Data Sheet. HMC902. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. Table 1. Parameter. Symbol. Test Conditions/Comments. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
Data Sheet HMC902 SPECIFICATIONS ELECTRICAL SPECIFICATIONS
TA = 25°C, VDD1 = VDD2 = 3.5 V, IDQ = 80 mA. VGG1 = VGG2 = no connection for nominal, self biased operation.
Table 1. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE 5 11 GHz SMALL SIGNAL GAIN 17 20 dB Gain Variation over Temperature 0.012 dB/°C RETURN LOSS Input 12 dB Output 15 dB OUTPUT Output Power for 1 dB Compression P1dB 16 dBm Saturated Output Power PSAT 17.5 dBm Output Third-Order Intercept IP3 28 dBm NOISE FIGURE NF 1.6 2.1 dB SUPPLY CURRENT IDQ Quiescent drain current, no RF applied 80 mA Rev. D | Page 3 of 13 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION MOUNTING AND BONDING TECHNIQUES FOR MILLIMETERWAVE GaAs MMICS HANDLING PRECAUTIONS Storage Cleanliness Static Sensitivity Transients General Handling Mounting Eutectic Die Attach Epoxy Die Attach Wire Bonding TYPICAL APPLICATION CIRCUITS ASSEMBLY DIAGRAMS OUTLINE DIMENSIONS ORDERING GUIDE
TA = 25°C, VDD1 = VDD2 = 3.5 V, IDQ = 80 mA. VGG1 = VGG2 = no connection for nominal, self biased operation.
Table 1. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE 5 11 GHz SMALL SIGNAL GAIN 17 20 dB Gain Variation over Temperature 0.012 dB/°C RETURN LOSS Input 12 dB Output 15 dB OUTPUT Output Power for 1 dB Compression P1dB 16 dBm Saturated Output Power PSAT 17.5 dBm Output Third-Order Intercept IP3 28 dBm NOISE FIGURE NF 1.6 2.1 dB SUPPLY CURRENT IDQ Quiescent drain current, no RF applied 80 mA Rev. D | Page 3 of 13 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION MOUNTING AND BONDING TECHNIQUES FOR MILLIMETERWAVE GaAs MMICS HANDLING PRECAUTIONS Storage Cleanliness Static Sensitivity Transients General Handling Mounting Eutectic Die Attach Epoxy Die Attach Wire Bonding TYPICAL APPLICATION CIRCUITS ASSEMBLY DIAGRAMS OUTLINE DIMENSIONS ORDERING GUIDE
