HMC504LC4B. GaAs HEMT MMIC LOW NOISE. AMPLIFIER, 14 - 27 GHz. Absolute Maximum Ratings
Model Line for this Datasheet
Text Version of Document
HMC504LC4B
v05.0918

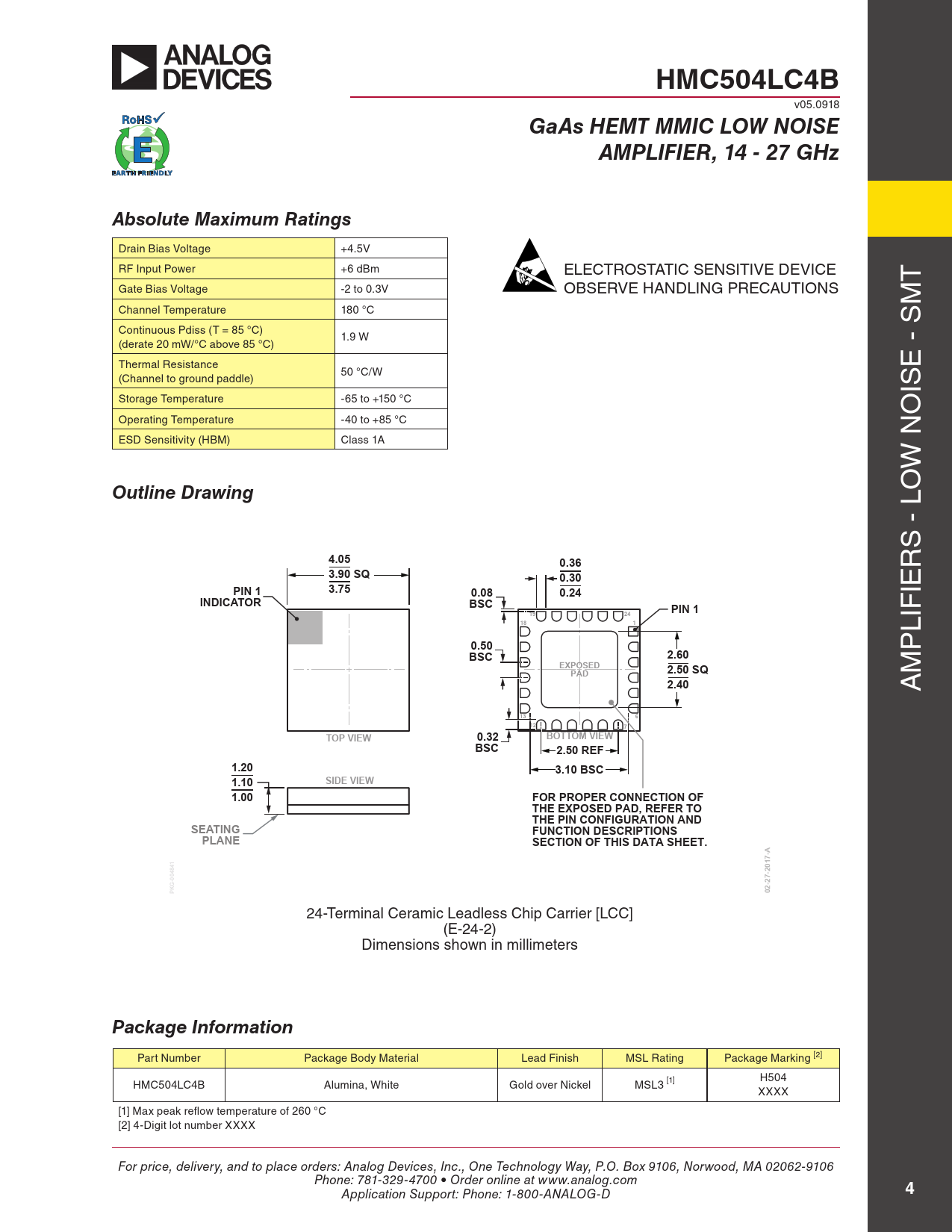

GaAs HEMT MMIC LOW NOISE AMPLIFIER, 14 - 27 GHz Absolute Maximum Ratings
Drain Bias Voltage +4.5V RF Input Power +6 dBm ELECTROSTATIC SENSITIVE DEVICE T Gate Bias Voltage -2 to 0.3V OBSERVE HANDLING PRECAUTIONS M Channel Temperature 180 °C Continuous Pdiss (T = 85 °C) 1.9 W (derate 20 mW/°C above 85 °C) Thermal Resistance E - S 50 °C/W (Channel to ground paddle) IS Storage Temperature -65 to +150 °C O Operating Temperature -40 to +85 °C ESD Sensitivity (HBM) Class 1A
24-Terminal Ceramic Leadless Chip Carrier [LCC]
W N
(E-24-2) Dimensions shown in millimeters.
O
Outline Drawing
S - L
4.05 0.36
R
3.90 SQ 0.30 PIN 1 3.75 0.08 0.24
IE
INDICATOR BSC PIN 1 19 24 18 1
LIF
0.50
P
BSC 2.60 EXPOSED PAD 2.50 SQ
M
2.40
A
13 6 12 7 TOP VIEW 0.32 BOTTOM VIEW BSC 2.50 REF 1.20 3.10 BSC 1.10 SIDE VIEW 1.00 FOR PROPER CONNECTION OF THE EXPOSED PAD, REFER TO THE PIN CONFIGURATION AND SEATING FUNCTION DESCRIPTIONS PLANE SECTION OF THIS DATA SHEET. PKG-004841 02-27-2017-A
24-Terminal Ceramic Leadless Chip Carrier [LCC] (E-24-2) Dimensions shown in mil imeters
Package Information
Part Number Package Body Material Lead Finish MSL Rating Package Marking [2] HMC504LC4B Alumina, White Gold over Nickel MSL3 [1] H504 XXXX [1] Max peak reflow temperature of 260 °C [2] 4-Digit lot number XXXX For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
