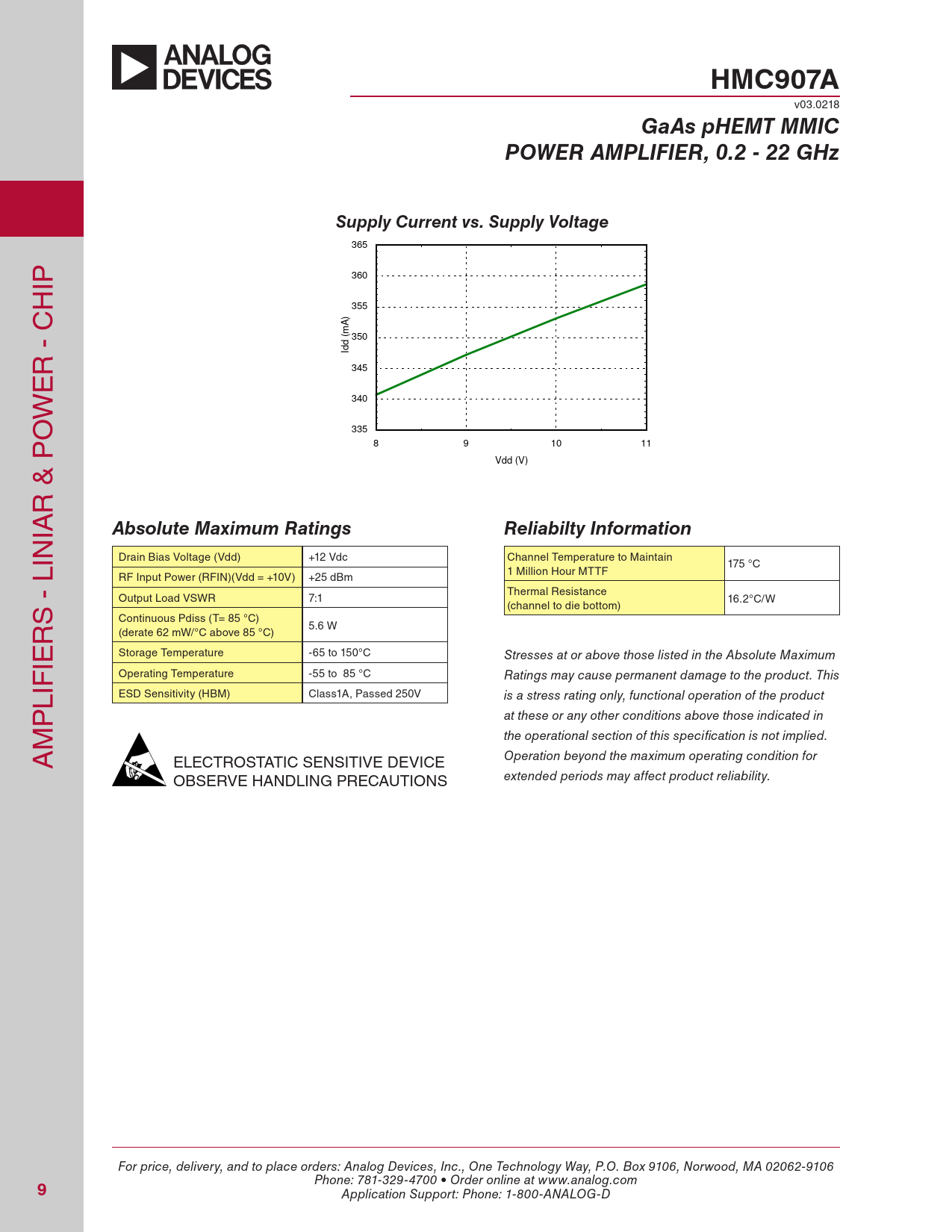

HMC907A
v03.0218
GaAs pHEMT MMIC POWER AMPLIFIER, 0.2 - 22 GHz Supply Current vs. Supply Voltage
365 IP 360 H 355 ) A (m 350 R - C Idd E 345 W 340 O 335 8 9 10 11 Vdd (V) R & P IA
Absolute Maximum Ratings Reliabilty Information
IN Drain Bias Voltage (Vdd) +12 Vdc Channel Temperature to Maintain 175 °C 1 Million Hour MTTF RF Input Power (RFIN)(Vdd = +10V) +25 dBm Thermal Resistance Output Load VSWR 7:1 16.2°C/W S - L (channel to die bottom) Continuous Pdiss (T= 85 °C) R 5.6 W (derate 62 mW/°C above 85 °C) IE Storage Temperature -65 to 150°C Stresses at or above those listed in the Absolute Maximum Operating Temperature -55 to 85 °C Ratings may cause permanent damage to the product. This LIF ESD Sensitivity (HBM) Class1A, Passed 250V is a stress rating only, functional operation of the product P at these or any other conditions above those indicated in M the operational section of this specification is not implied. A ELECTROSTATIC SENSITIVE DEVICE Operation beyond the maximum operating condition for OBSERVE HANDLING PRECAUTIONS extended periods may affect product reliability. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
