Datasheet ADPA1105 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 46 dBm (40 W), 0.9 GHz to 1.6 GHz, GaN Power Amplifier |
| Pages / Page | 16 / 3 — Data Sheet. ADPA1105. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. Table 1. … |
| File Format / Size | PDF / 719 Kb |
| Document Language | English |

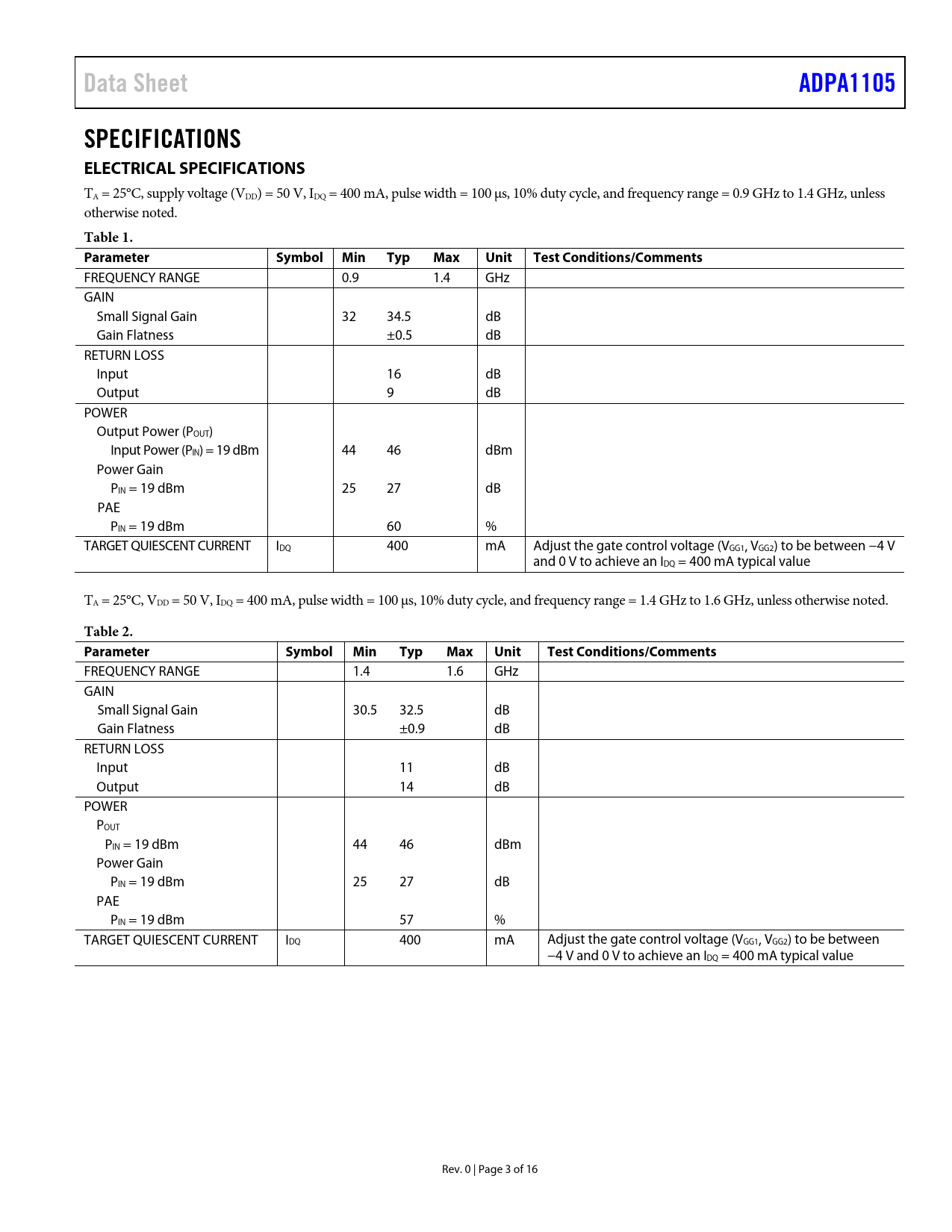

Data Sheet. ADPA1105. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. Table 1. Parameter Symbol. Min. Typ. Max. Unit. Test. Conditions/Comments
Model Line for this Datasheet
Text Version of Document
Data Sheet ADPA1105 SPECIFICATIONS ELECTRICAL SPECIFICATIONS
TA = 25°C, supply voltage (VDD) = 50 V, IDQ = 400 mA, pulse width = 100 μs, 10% duty cycle, and frequency range = 0.9 GHz to 1.4 GHz, unless otherwise noted.
Table 1. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 0.9 1.4 GHz GAIN Small Signal Gain 32 34.5 dB Gain Flatness ±0.5 dB RETURN LOSS Input 16 dB Output 9 dB POWER Output Power (POUT) Input Power (PIN) = 19 dBm 44 46 dBm Power Gain PIN = 19 dBm 25 27 dB PAE PIN = 19 dBm 60 % TARGET QUIESCENT CURRENT IDQ 400 mA Adjust the gate control voltage (VGG1, VGG2) to be between −4 V and 0 V to achieve an IDQ = 400 mA typical value TA = 25°C, VDD = 50 V, IDQ = 400 mA, pulse width = 100 μs, 10% duty cycle, and frequency range = 1.4 GHz to 1.6 GHz, unless otherwise noted.
Table 2. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 1.4 1.6 GHz GAIN Small Signal Gain 30.5 32.5 dB Gain Flatness ±0.9 dB RETURN LOSS Input 11 dB Output 14 dB POWER POUT PIN = 19 dBm 44 46 dBm Power Gain PIN = 19 dBm 25 27 dB PAE PIN = 19 dBm 57 % TARGET QUIESCENT CURRENT IDQ 400 mA Adjust the gate control voltage (VGG1, VGG2) to be between −4 V and 0 V to achieve an IDQ = 400 mA typical value Rev. 0 | Page 3 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ELECTROSTATIC DISCHARGE (ESD) RATINGS ESD Ratings for ADPA1105 ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION BASIC CONNECTIONS THERMAL MANAGEMENT OUTLINE DIMENSIONS ORDERING GUIDE
