| Manufacturer | Analog Devices |
| Description | 50 GHz to 95 GHz, GaAs, pHEMT, MMIC, Wideband Power Amplifier |
| Pages / Page | 18 / 3 — Data Sheet. ADPA7001CHIPS. SPECIFICATIONS 50 GHz TO 70 GHz FREQUENCY … |
| Revision | B |
| File Format / Size | PDF / 1.0 Mb |
| Document Language | English |

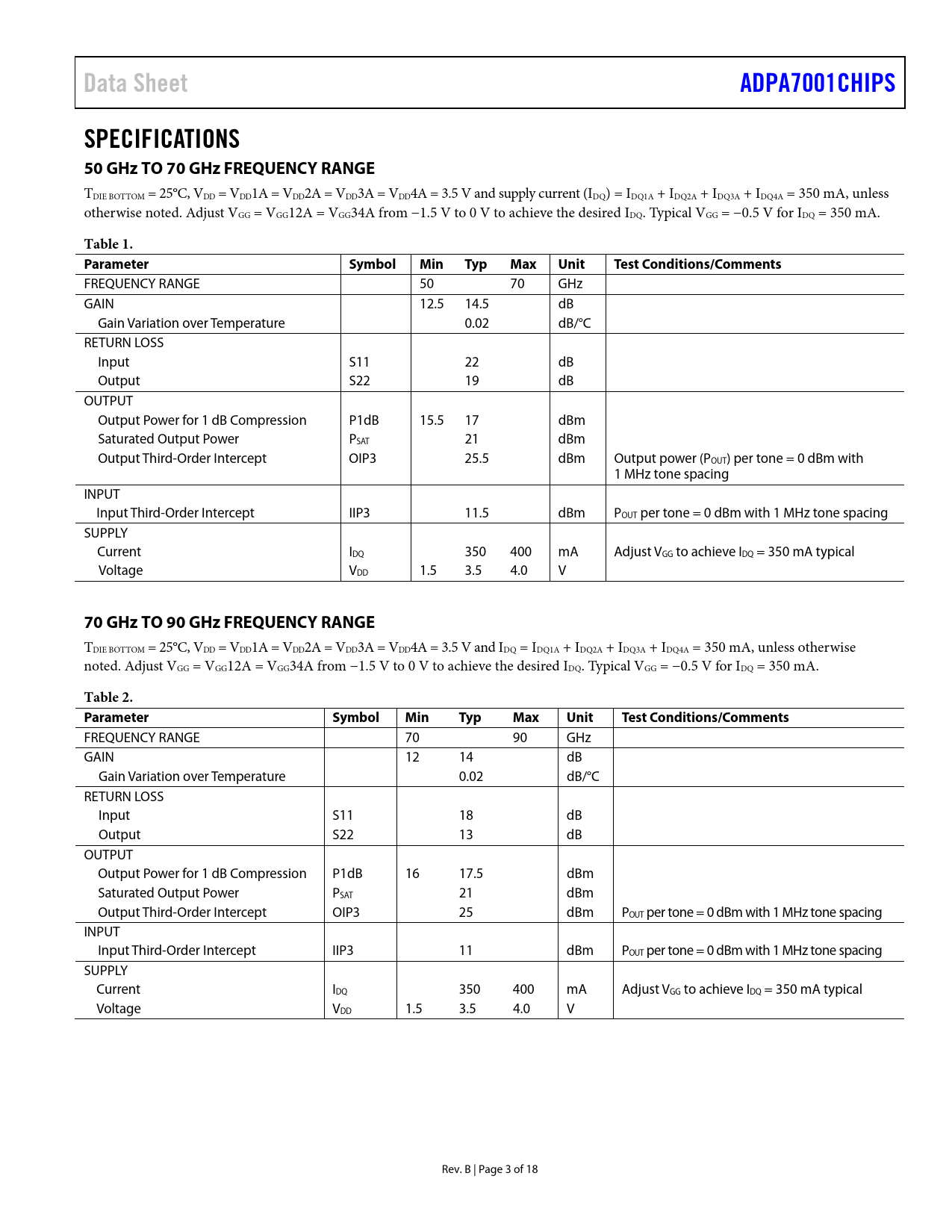

Data Sheet. ADPA7001CHIPS. SPECIFICATIONS 50 GHz TO 70 GHz FREQUENCY RANGE. Table 1. Parameter Symbol. Min. Typ. Max. Unit. Test
Model Line for this Datasheet
Text Version of Document
Data Sheet ADPA7001CHIPS SPECIFICATIONS 50 GHz TO 70 GHz FREQUENCY RANGE
TDIE BOTTOM = 25°C, VDD = VDD1A = VDD2A = VDD3A = VDD4A = 3.5 V and supply current (IDQ) = IDQ1A + IDQ2A + IDQ3A + IDQ4A = 350 mA, unless otherwise noted. Adjust VGG = VGG12A = VGG34A from −1.5 V to 0 V to achieve the desired IDQ. Typical VGG = −0.5 V for IDQ = 350 mA.
Table 1. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 50 70 GHz GAIN 12.5 14.5 dB Gain Variation over Temperature 0.02 dB/°C RETURN LOSS Input S11 22 dB Output S22 19 dB OUTPUT Output Power for 1 dB Compression P1dB 15.5 17 dBm Saturated Output Power PSAT 21 dBm Output Third-Order Intercept OIP3 25.5 dBm Output power (POUT) per tone = 0 dBm with 1 MHz tone spacing INPUT Input Third-Order Intercept IIP3 11.5 dBm POUT per tone = 0 dBm with 1 MHz tone spacing SUPPLY Current IDQ 350 400 mA Adjust VGG to achieve IDQ = 350 mA typical Voltage VDD 1.5 3.5 4.0 V
70 GHz TO 90 GHz FREQUENCY RANGE
TDIE BOTTOM = 25°C, VDD = VDD1A = VDD2A = VDD3A = VDD4A = 3.5 V and IDQ = IDQ1A + IDQ2A + IDQ3A + IDQ4A = 350 mA, unless otherwise noted. Adjust VGG = VGG12A = VGG34A from −1.5 V to 0 V to achieve the desired IDQ. Typical VGG = −0.5 V for IDQ = 350 mA.
Table 2. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
