HMC7054. Ka-Band HPa. Electrical Specifications
Model Line for this Datasheet
Text Version of Document
HMC7054
v03.0216
Ka-Band HPa Electrical Specifications

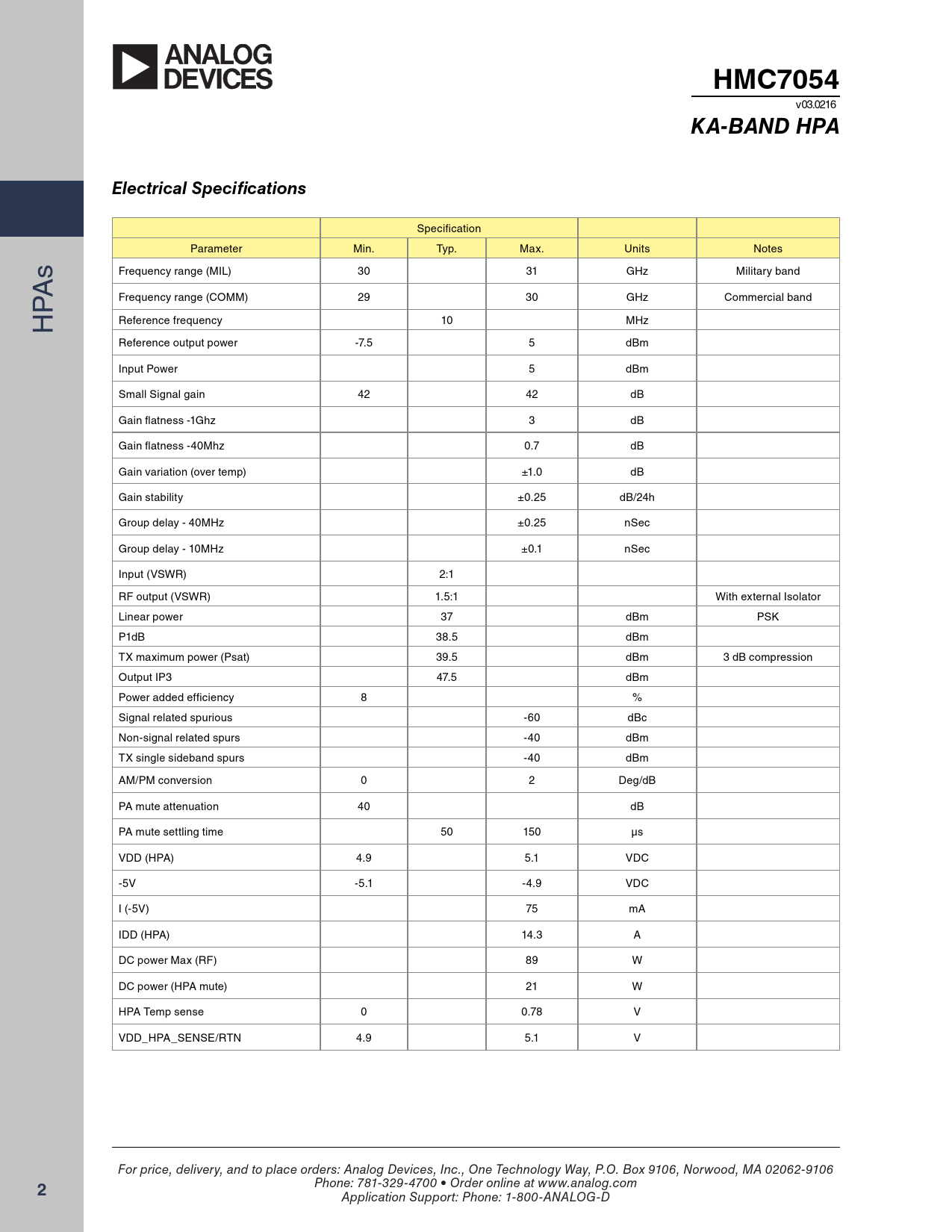

Specification Parameter Min. Typ. Max. Units Notes s Frequency range (MIL) 30 31 GHz Military band PA Frequency range (COMM) 29 30 GHz Commercial band H Reference frequency 10 MHz Reference output power -7.5 5 dBm Input Power 5 dBm Small Signal gain 42 42 dB Gain flatness -1Ghz 3 dB Gain flatness -40Mhz 0.7 dB Gain variation (over temp) ±1.0 dB Gain stability ±0.25 dB/24h Group delay - 40MHz ±0.25 nSec Group delay - 10MHz ±0.1 nSec Input (VSWR) 2:1 RF output (VSWR) 1.5:1 With external Isolator Linear power 37 dBm PSK P1dB 38.5 dBm TX maximum power (Psat) 39.5 dBm 3 dB compression Output IP3 47.5 dBm Power added efficiency 8 % Signal related spurious -60 dBc Non-signal related spurs -40 dBm TX single sideband spurs -40 dBm AM/PM conversion 0 2 Deg/dB PA mute attenuation 40 dB PA mute settling time 50 150 µs VDD (HPA) 4.9 5.1 VDC -5V -5.1 -4.9 VDC I (-5V) 75 mA IDD (HPA) 14.3 A DC power Max (RF) 89 W DC power (HPA mute) 21 W HPA Temp sense 0 0.78 V VDD_HPA_SENSE/RTN 4.9 5.1 V For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
